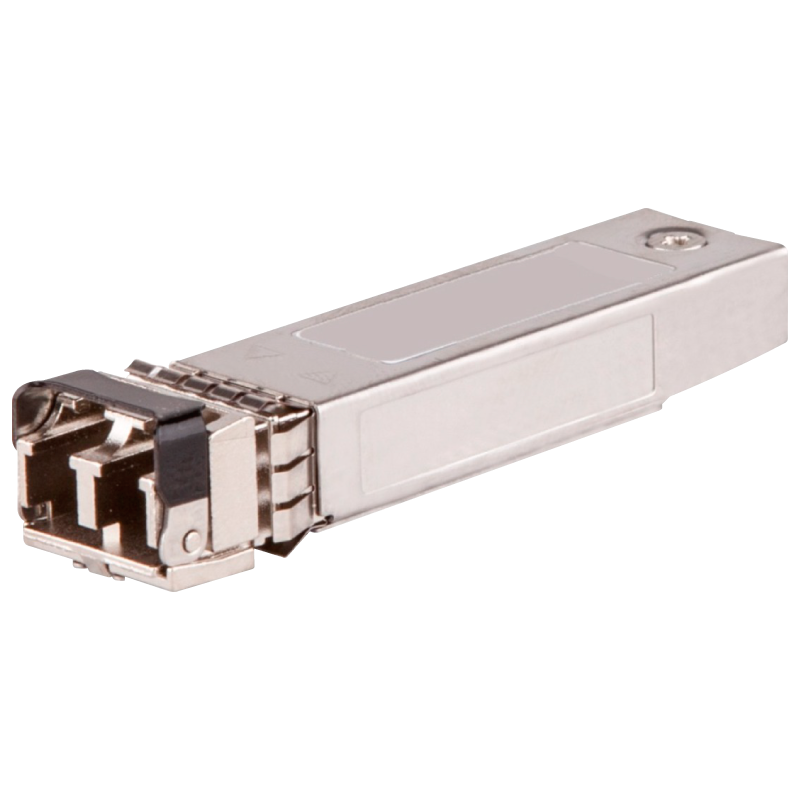

The SKY-SWSFP-002 is a Wisenet SKY network switch module with SFP copper multimode fiber support.Wisenet SKY smart managed switches will give you faster installations, easier maintenance and upgrades, reduced service calls, and better visibility into camera operations.
DESIGNED FOR VIDEO
The Wisenet SKY smart managed switches were designed specifically for video surveillance. These switches do not require any configuration - they work right out of the box. Advance features include Bandwidth control, Remote PoE Power management and Statistics Counter. Plug them in and they’re ready to go.
REMOTE CONFIGURATION
The Wisenet SKY managed switches will provide manageability and more functionality, allowing for remote configuration and management. Authorized users will be able to power cycle an individual PoE camera or the entire switch remotely so there is no need to send service personnel to reboot or restart cameras.
Features:
- Reports the status of each port
- Configured to use either DHCP or a static IP address
- Power can be turned on and off for each port
- Reports for network traffic information for each port • Measures current PoE power draw for each PoE port
- Enables web management on a port by port basis
| MODEL | EN-SW05m-001 | EN-SW10m-001 | EN-SW18m-001 | EN-SW26m-001 |
| Total Number of Ports | 5 ports (4 PoE, 1 Uplink) | 10 ports (8 PoE, 2 Uplink) | 18 ports (16 PoE, 2 Uplink) | 26 ports (24 PoE, 2 Uplink) |
| PoE Ports | 4 PoE | 8 PoE | 16 PoE | 24 PoE |
| Uplink Ports | 1 Uplink | 2 Uplink +1 Gig Combo +1 Gig SFP Uplink | 2 Uplink +2 Gig Combo Uplink | 2 Uplink +2 Gig Combo Uplink |
| Power Supply | External Power Supply | External Power Supply | Built-In Power Supply | Built-In Power Supply |
| Voltage Range Maximum | AC100-240V | AC100-240V | AC100-240V | AC100-240V |
| PoE Power Budget | 60W | 125W | 250W | 370W |
| Speed | 10/100Mbps | 10/100Mbps | 10/100Mbps | 10/100Mbps |
| Dimension (L x W x H) | 119 x 85 x 28 mm 4.7 x 3.3 x 1.1 in | 218 x 107 x 29 mm 8.6 x 4.2 x 1.1 in | 440 x 200 x 44 mm 17.3 x 7.9 x 1.7 in | 440 x 200 x 44 mm 17.3 x 7.9 x 1.7 in |
| Switching Capacity | 1G | 5.6G | 7.2G | 8.8G |
| MAC Address | 2K MAC address table | 4K MAC address table | 4K MAC address table | 4K MAC address table |
| Temperature Range | -10°C to 55°C / 14F to 131°F | 0°C to 40°C / 32°F to 104°F | 0°C to 40°C / 32°F to 104°F | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -40 to 70°C / -40 to 158°F | -40°C to 70°C / -40°F to 158°F | -40°C to 70°C / -40°F to 158°F | -40°C to 70°C / -40°F to 158°F |
| PoE Specifications | IEEE802.3af & 802.3at | IEEE802.3af & 802.3at | IEEE802.3af & 802.3at | IEEE802.3af & 802.3at |
| Rack Mountable | No | No | Yes (Mount Ears Included) | Yes (Mount Ears Included) |
| Weight | 1.35lb (0.61kg) | 2.63lb (1.91kg) | 6.88lb (3.12kg) | 7.33lb (3.32kg) |
