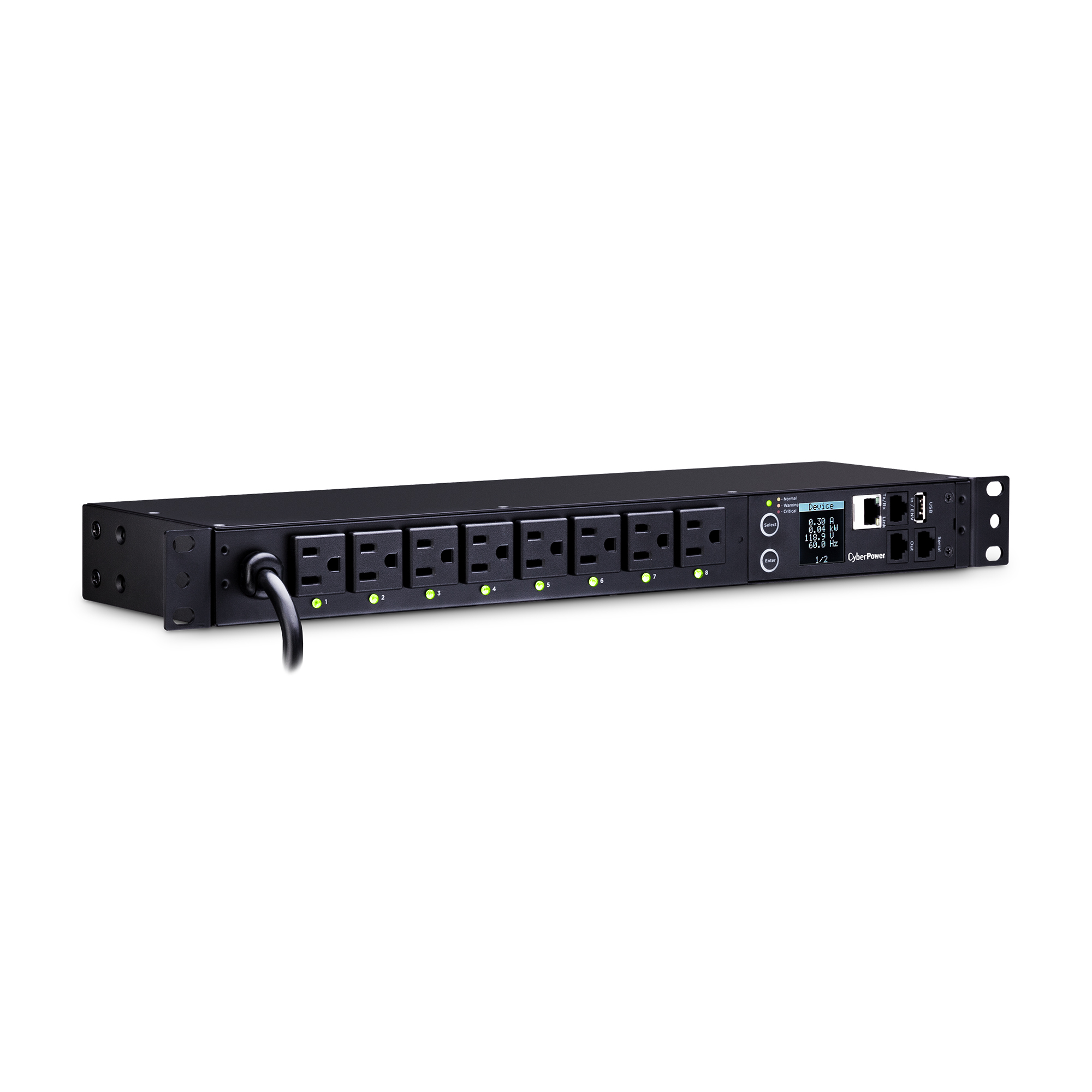

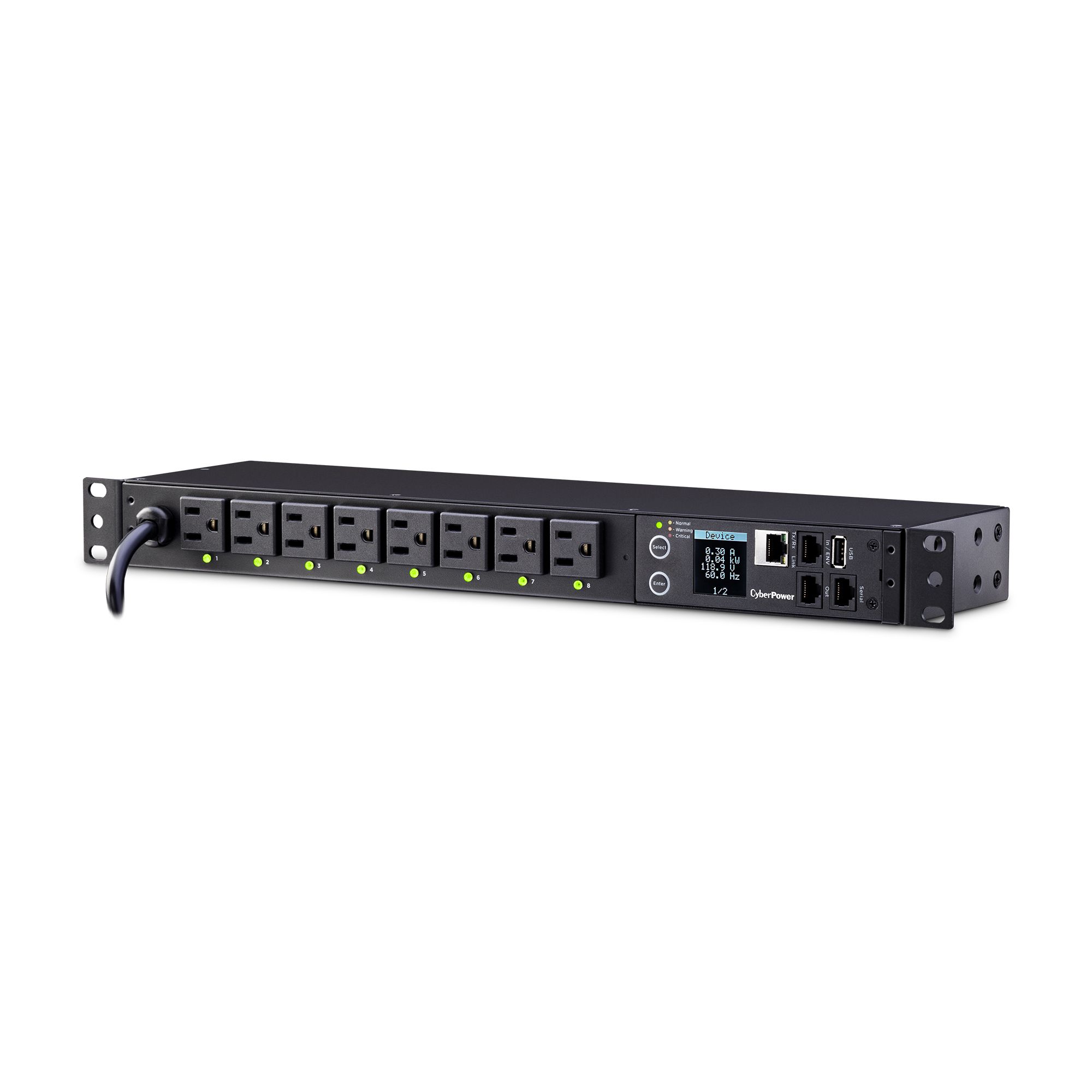

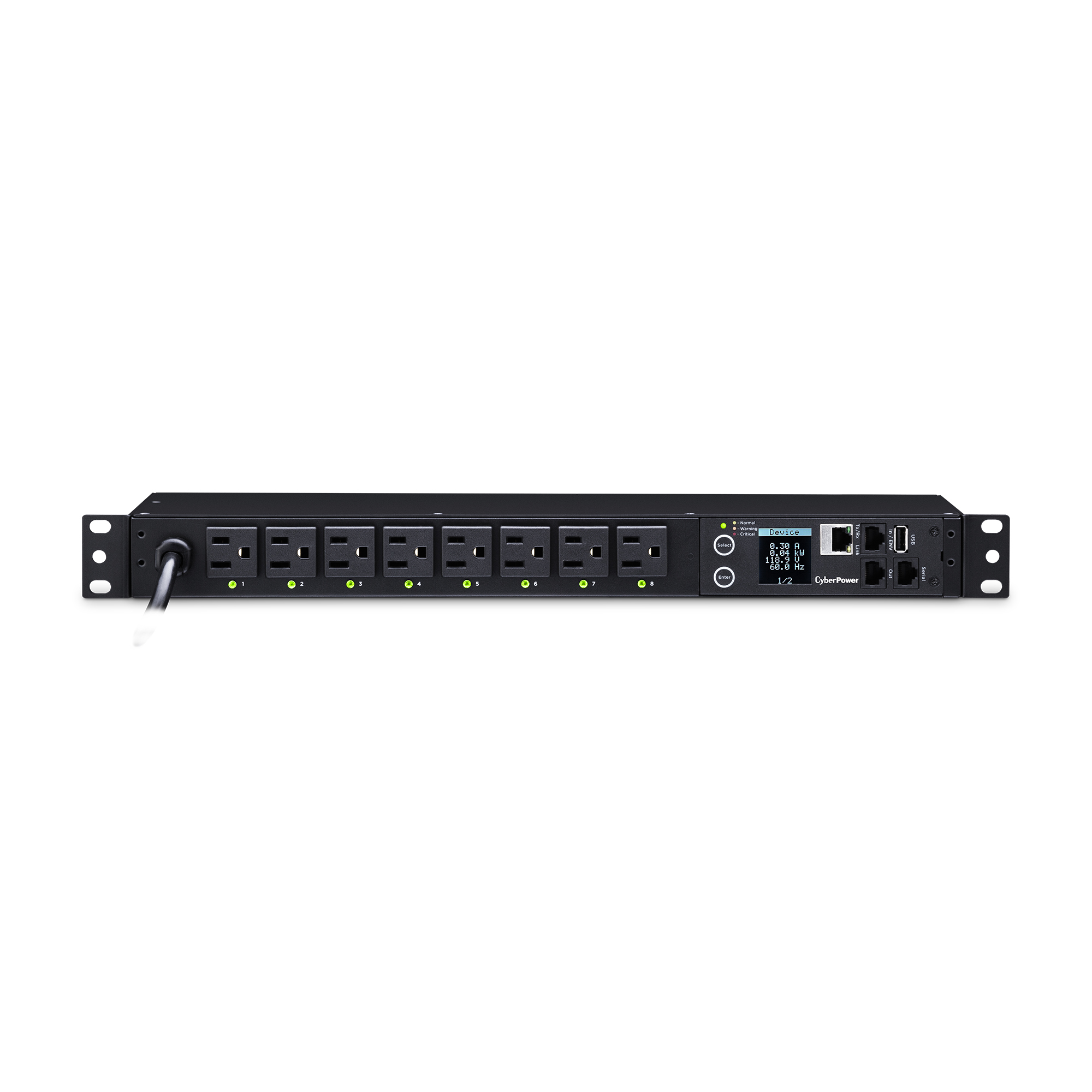

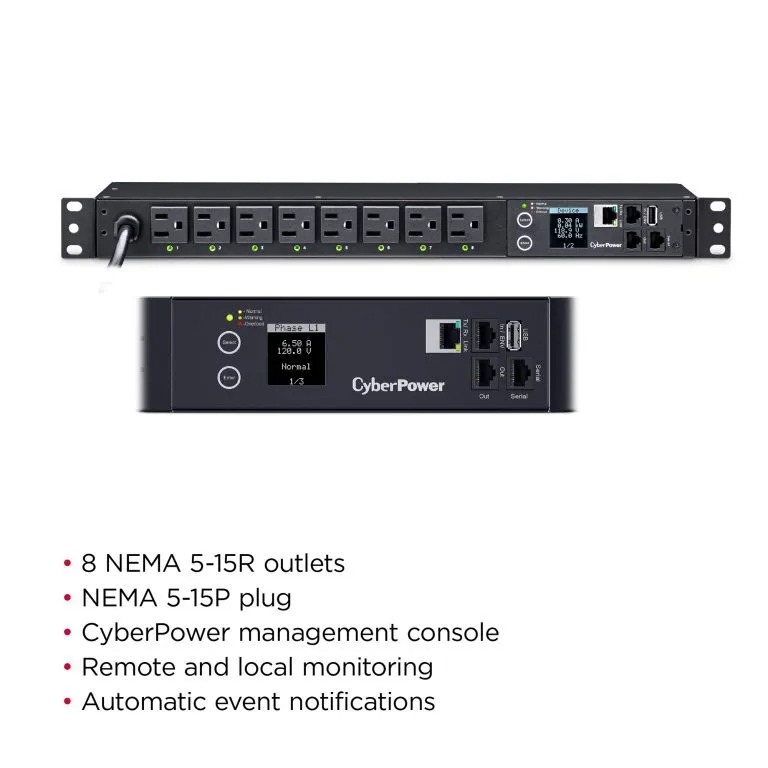

Switched PDU 15A 120V NEMA 5-15P input 8 NEMA 5-15R output 12ft cord 1U 3 Year Warranty
Outlets can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41001 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
Features:
| Input | |
| Cord Length | 12 ft (3.7 m) |
| Derated Input Current | 12 A |
| Input Frequency Range | 50 Hz – 60 Hz |
| Input Plug Type | NEMA 5-15P |
| Maximum Input Current | 15A |
| Phase | Single Phase |
| Plug Style | Straight |
| Output | |
| Meter Readout | Power Control Display |
| Nominal Output Voltage | 100 – 120 VAC |
| Outlet Type | 8 – NEMA 5-15R |
| Outlets – # of Banks | 1 |
| Outlets – Front | 8 |
| Outlets – Rear | 0 |
| Outlets – Total | 8 |
| Overload Protection | 15A |
| Overload Protection (Each Bank) | None |
| USB Charge Port | No |
| Management & Communications | |
| Environmental Sensor | Optional, via RJ45 |
| Hardware Connection Port | RJ45, Universal (RJ45), IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD |

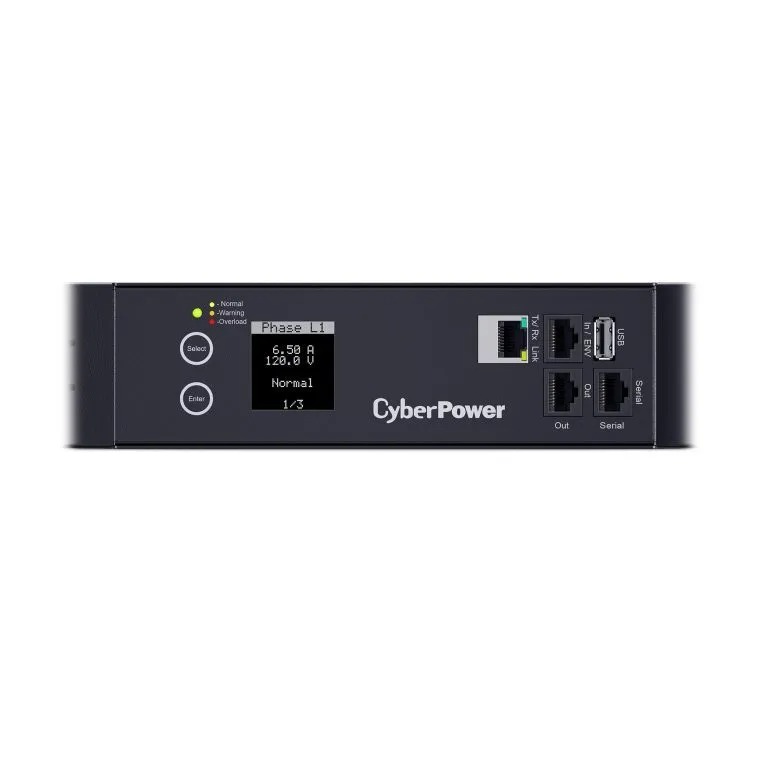

| LCD | Multifunction LCD |
| LED Indicators | Tx/Rx, LINK, Normal/Warning/Critical Status |
| Modular Expandability (Cascading) | Yes, via RJ45 |
| Outlet switching | Yes |
| SNMP / HTTP Remote Monitoring | IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD |
| Upgradeable firmware | Yes |
| Physical | |
| Adjustable Mounting Brackets | 1 set |
| Color | Black |
| Cord Retention Tray/Cord Organizers | Yes |
| External Site Ground Pin | Yes |
| Form Factors Supported | Horizontal or Vertical Wallmount, Horizontal or Vertical Mount in a Variety of Other Surface Types |
| Material of Construction | Metal |
| Rack Height | 1U |
| Style | Horizontal Rackmount, Wallmount |

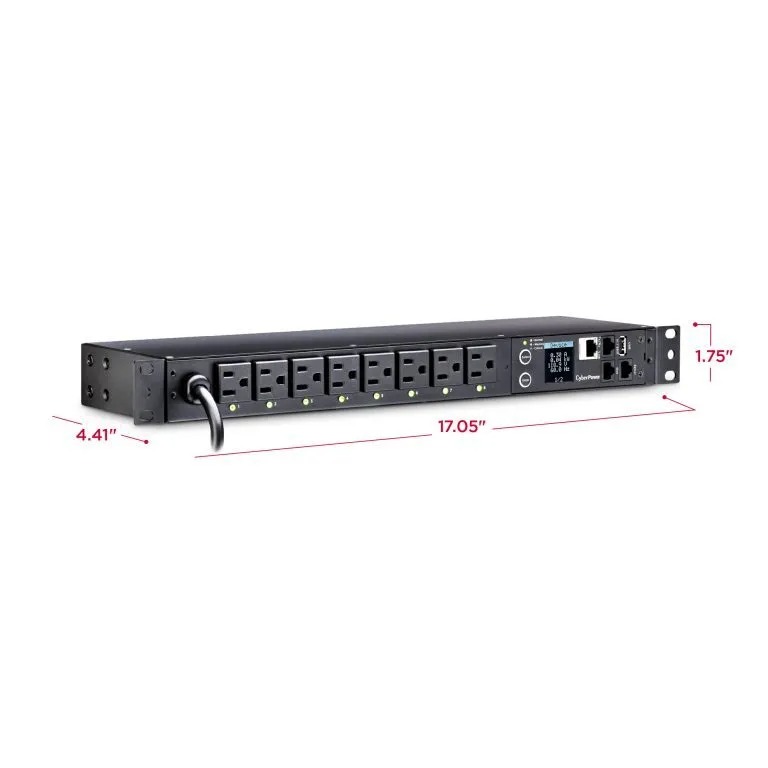

| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.31 x 4.45 x 11.2 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.05 x 1.75 x 4.41 (in) |
| Physical Dimensions – (WxHxD) (mm) | 433 x 44 x 112 (mm) |
| Physical Weight (kg) | 2.59 |
| Physical Weight (lb) | 5.7 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 9.47 |
| Shipping – Weight (lb) | 20.88 |
| Shipping Dimensions – (WxHxD) (cm) | 25.1 x 6.88 x 49.86 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 9.88 x 2.71 x 19.63 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 250.95 x 68.83 x 498.6 (mm) |
| Environmental | |
| Operating Elevation | 0 – 11483 ft (0 – 3500 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 140 °F (0 – 60 °C) |
| Storage Elevation | 0 – 49213 ft (0 – 14999 m) |
| Storage Temperature | 5 – 149 °F (-15 – 65 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL62368 |
| Warranty | |
| Extended Warranty Option | WEXT5YR-PDU1B |
| Product Warranty | 3 Year Limited Warranty |
