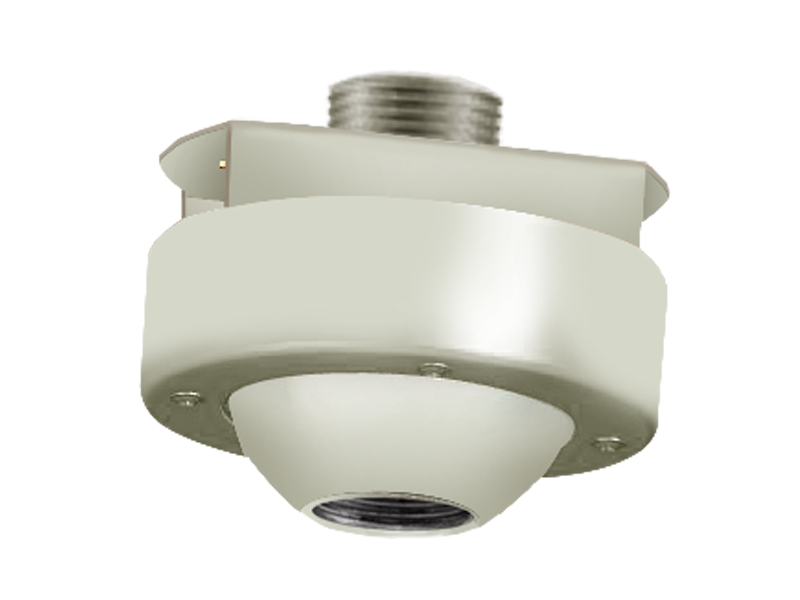

Hanwha - SBP-302CMS - Swivel Adapter for Pendant Mount Ivory
Part number:
SBP-302CMS
Price:
Swivel adapter for pendant mount for SBP-302CM, SBP-302CM-12, SBP-302CM-36 and it also requires one mounting option either SBP-302CMA or SBP-302CMB.
| Materials | Aluminum and Steel |
| Dimensions | 4.57" x 4.57" x 5.05" (116 x 116 x 80mm) |
| Pipe Thread | 1.5" NPT male (top) |
| Color | Ivory |
| Weight | 4lb (1.8kg) |
| Max Load | 30lb (13.6kg) |
| Pivot Angle | ±45° |
| Optional Accessories | SBP-302CM telescopic pendant mount SBP-302CMA single joist ceiling mount adapter SBP-302CMB backbox for pendant and ceiling mount SBP-302CM-12 extension pipe, 12" SBP-302CM-36 extension pipe, 36" |
| Cable Routing | Cable hole |
