Hanwha - SBP-302CMSW - Swivel adapter for pendant mount for SBP-302CMW, SBP-302CMW-06, SBP-302CMW-12, SBP-302CMW-36,SBP-302CMAW, SBP-302CMBW
Part number:
SBP-302CMSW
Price:

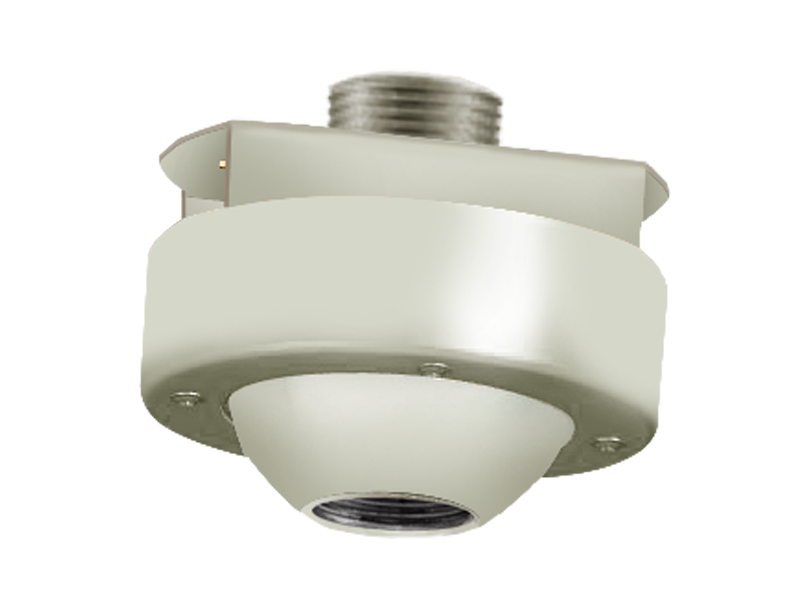

The Hanwha SBP-302CMSW is a heavy-duty, commercial-grade swivel pendant mount adapter designed to stabilize overhead structural camera drops while accommodating sloped architectural ceilings or pitched structural beams.
Key Features:
• Materials: Aluminum and steel
• Dimensions (WxHxD): 4.57" x 4.57" x 5.05" (116 x 116 x 80mm)
• Pipe Thread: 1.5" NPT male (top)
• Weight: 4lb (1.8kg)
• Max Load: 30lb (13.6kg)
• Pivot Angle: ±45°
• Color: Ivory White
• Adapter for: SBP-302CMW, SBP-302CMW-06, SBP-302CMW-12, SBP-302CMW-36, SBP-302CMAW, SBP-302CMBW
| Materials | Aluminum and steel |
| Dimensions (WxHxD) | 4.57" x 4.57" x 5.05" (116 x 116 x 80mm) |
| Pipe Thread | 1.5" NPT male (top) |
| Weight | 4lb (1.8kg) |
| Max Load | 30lb (13.6kg) |
| Pivot Angle | ±45° |
| Color | Ivory White |
| Applicable Mount | All Hanwha Hanging Mount (1.5" NPT) |
| Optional Accessories | SBP-302CM(W), SBP-302CMA(W), SBP-302CMB(W)W, SBP-302CM(W)-12, SBP-302CM(W)-36 |
| Cable Routing | Cable hole |
