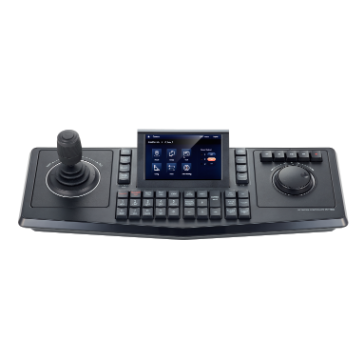

Hanwha - SPC-7000 - System Control Keyboard
Part number:
SPC-7000
Price:
IP System Keyboard Controller, Touch Screen TFT LCD, Interchangeable 3D Joystick & Jog Shuttle for Left or Right Handed Users, RS-485, DVR/NVR, Matrix & PTZ Control, 1CH Video Input/Output, SSM using USB interface only.
Features:
- 5" TFT touch LCD
- Network cameras / SSM control
- User-friendly design and easy-to-use keypad
- 3 Axis joystick to control PTZ function

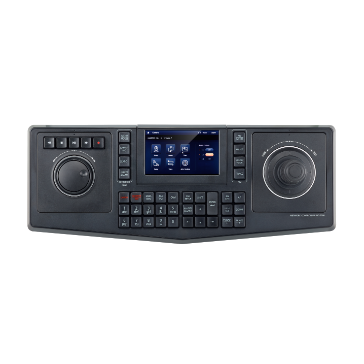

- Detachable joystick / jogshuttle for universe use (Right / Left hand use)
- USB interface support (1ea for SSM, 1ea for image snapshot / Upgrade)
- Fast camera-tile mapping, Config import / export
| Communication | |
| Control Equipment | Network Camera / SSM / Analog Camera / DVR |
| Interface | Ethernet (Network camera) USB (SSM) 1ea, USB 1ea (Upgrade, Config import/export, Image snapshot) RS-485/422 (Analog Camera ,DVR) 1ea, RS-485/422 (Cascade among controllers) 1ea |
| Interface Protocol | Ethernet: SUNAPI USB: Dedicated RS-485/422: SRD, Pelco-D/P, Panasonic, Vicon, AD, Honeywell, Bosch, Elmo, GE, Samsung-T/E |
| Units to Control | Network Camera : Max. 255ea, SSM : 1ea, Analog Camera / DVR : Max. 255ea |
| Baud Rate (RS-485/422) | 2400 ~ 57,600bps |
| Network Protocol | TCP, HTTP, DHCP, IPv4 |
| Operational Mechanic | |
| LCD Display | 5" TFT LCD |
| Joystick | 3 Axis twist zoom |
| Jog Shuttle | SSM / DVR playback control |
| Control |
| Camera | Pan / Tilt / Zoom, Focus, Auto focus, Preset, Group, Tour, Swing, Trace, Auto tracking, Alarm off/on, Freeze |
| Video Wall | Camera-tile (Channel) mapping, Layout (Display division mode) change |
| Recorder | Recording / Playback control, Alarm off, Menu |
| Device Management | Built-in device registration / Modification on LCD |
| User Management | Admin + 9 operators |
| Import / Export | Configuration import / export |
| Miscellaneous |
| Video Snapshot | Still image (Network camera) export using USB memory |
| Input | Alphabet input (Virtual keyboard) |
| Language | English, Spanish, French, Italian, German, Turkish, Polish, Russian, Korean, Chinese, Japanese |
| Environmental |
| Operating Temperature | 0°C ~ 40°C (+32°F ~ +104°F) |
| Operating Humidity | 20 ~ 85% |
| Electrical |
| Input Voltage | 12V DC |
| Power Consumption | Max. 6.4W |
| Mechanical | |
| Dimensions (WxHxD) | 459.1 x 59.1 x 177.9mm (18.07" x 2.33" x 7") |
| Weight | 1.5Kg (3.3 lb) |
