Hanwha - SBP-300CMTW - Telescopic Ceiling Mount with female 1.5" pipe thread and 3/4" conduit access holes, Product dimension: ø180x956.5~1667.5mm (ø7.09x37.66~65.65")
Hanwha - SBP-300CMTW - Telescopic Ceiling Mount with female 1.5" pipe thread and 3/4" conduit access holes, Product dimension: ø180x956.5~1667.5mm (ø7.09x37.66~65.65")
Hanwha - SBP-300CMTW - Telescopic Ceiling Mount with female 1.5" pipe thread and 3/4" conduit access holes, Product dimension: ø180x956.5~1667.5mm (ø7.09x37.66~65.65")

Hanwha - SBP-300CMTW - Telescopic Ceiling Mount with female 1.5" pipe thread and 3/4" conduit access holes, Product dimension: ø180x956.5~1667.5mm (ø7.09x37.66~65.65")

Part number:
SBP-300CMTW
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

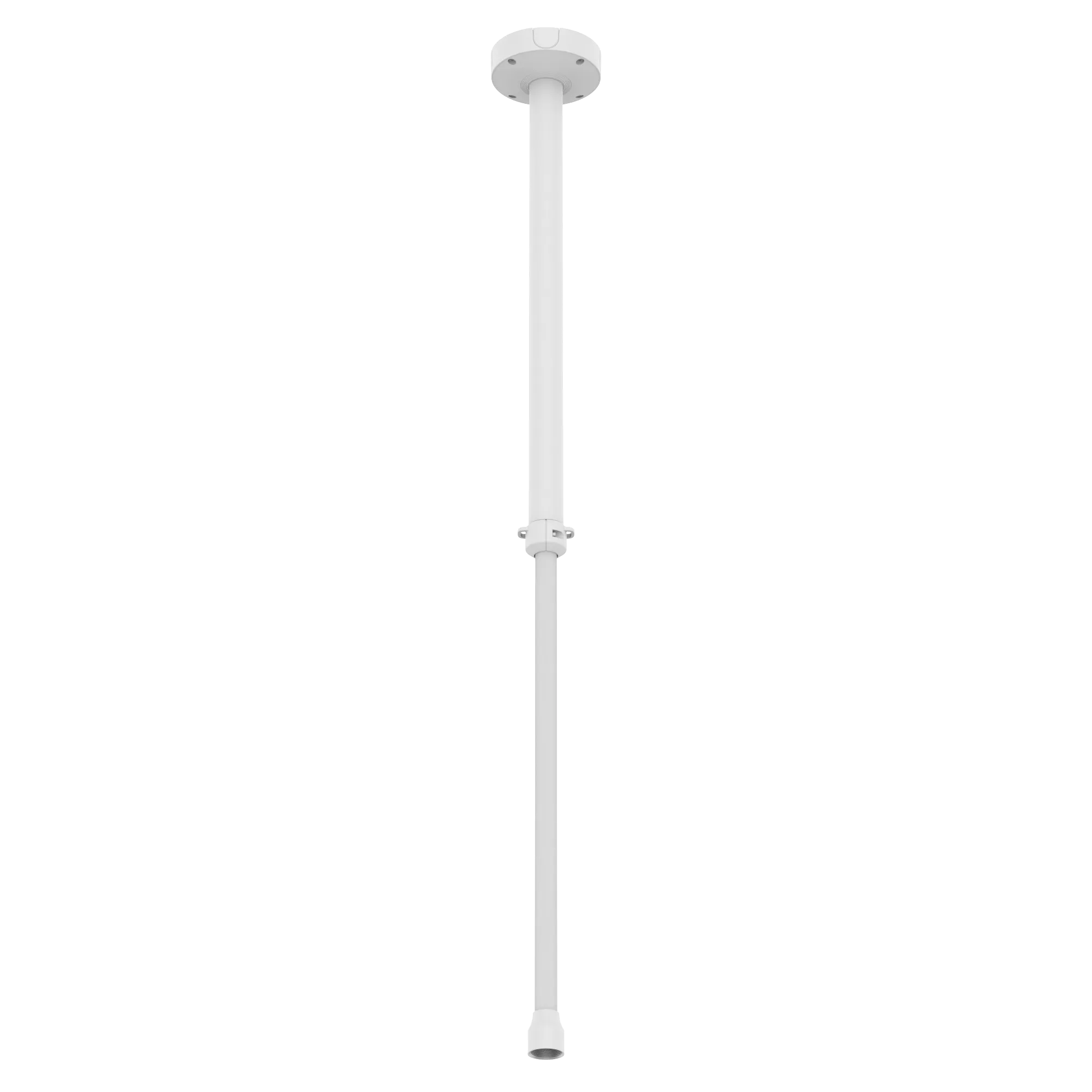

Telescopic Ceiling Mount.



Features:

  • Female 1.5" pipe thread
  • 3/4" conduit access holes
  • Extends from 3ft ~5ft (ø7.09x37.66~65.65")
  • Compatible mounts:
    • SBP-120HMW
    • SBP-140HMW
    • SBP-180HMW1
Specifications
Mechanical
ColorWhite
MaterialAluminum
RAL codeRAL9003
Product dimensions / weightø180x956.5~1667.5mm (ø7.09x37.66~65.65") / 3,750g (8.27lb)
Mount Screw sizeTR30
Max. load20kg
Conduit hole19.1mm(3/4") (M25)
Supported products
  • Hanging Adaptor : SBP-120HMW/140HMW/160HMW1/180HMW1, etc.
  • Pipe extension : SBP-C15P, SBP-150CMP/300CMP/900CMP

※ For further compatible models, please visit our website or use Toolbox

Name
Description
Size
Downloads
File
Datasheet
0.5mb
