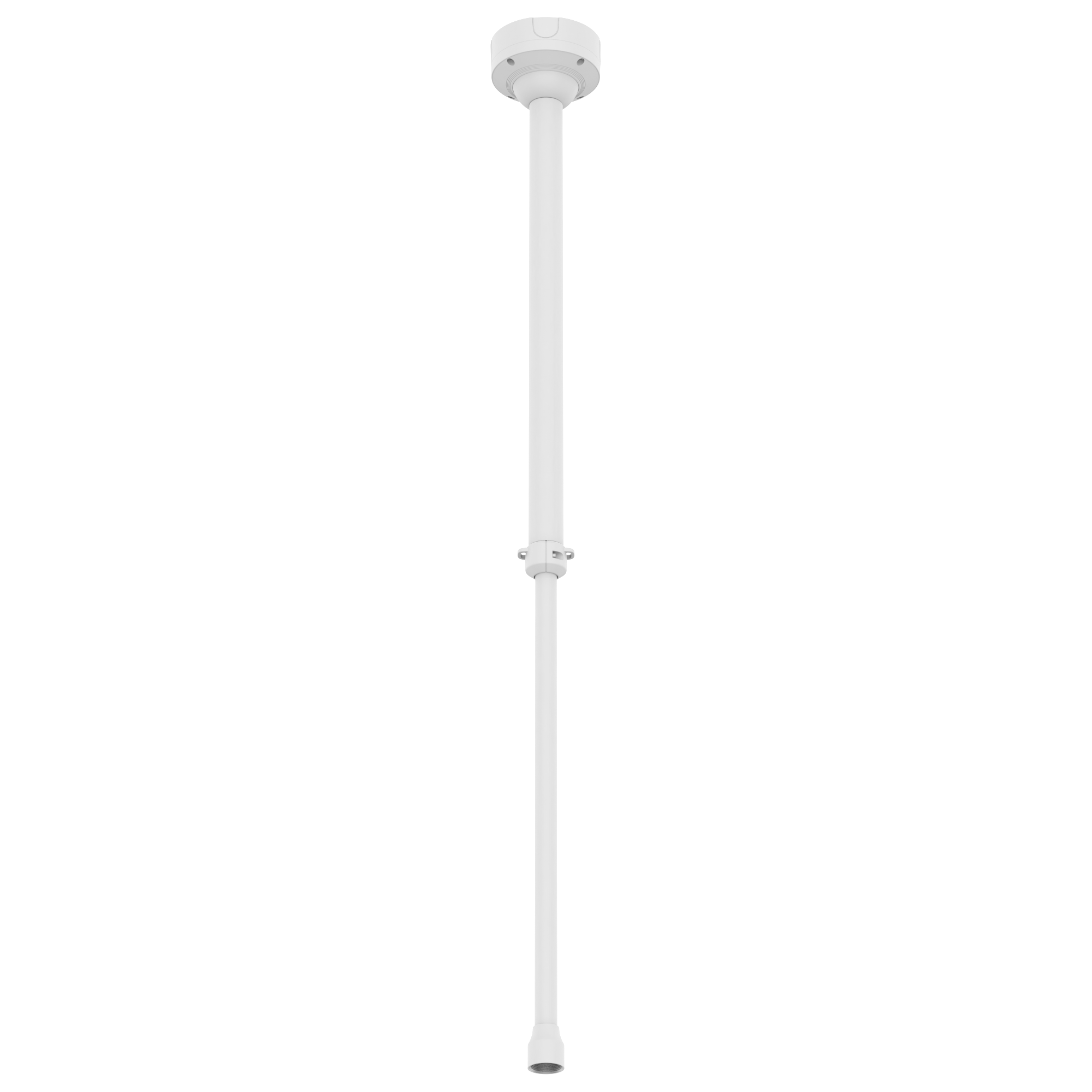

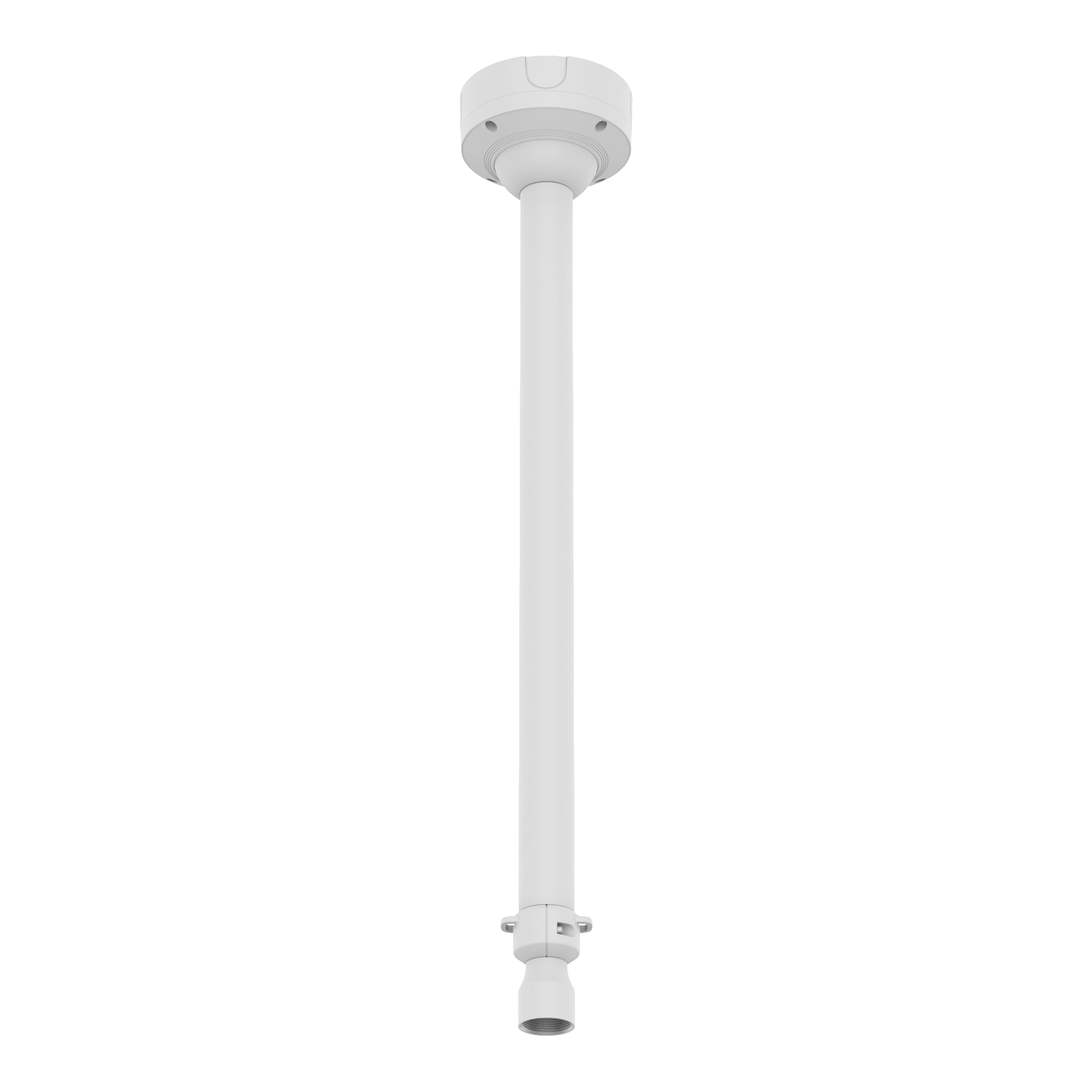

Hanwha - SBP-300CMTS - Telescopic Ceiling Mount
Part number:
SBP-300CMTS
Price:
Swivel based Ceiling Mount with Telescopic Extension Pipe
Features:
• Color : White
• Material : Plate : Aluminum
• Product dimensions / weight : ø180x956.5~1667.5mm (ø7.09x37.66~65.65") / 3,750g (8.27lb) *Pipe can be extended once and maximum length can be up to 2524mm (99.37”) (based on using SBP-900CMP)
| Mechanical | |
| Color | White |
| Material | Aluminum |
| RAL code | RAL9003 |
| Product dimensions / weight | ø180x956.5~1667.5mm (ø7.09x37.66~65.65") / 3,750g (8.27lb) |
| Pan / Tilt / Rotate Range | ±45° / ±45° / None |
| Max. load | 20kg |
| Conduit hole | 19.1mm(3/4") (M25) |
| Supported products | Hanging Adaptor : SBP-120HMW/140HMW/160HMW1/180HMW1, etc, Pipe extension : SBP-C15P, SBP-150CMP/300CMP/900CMP ※ For further compatible models, please visit our website or use Toolbox |
Name
Description
Size
Downloads
File
Datasheet
0.6mb
