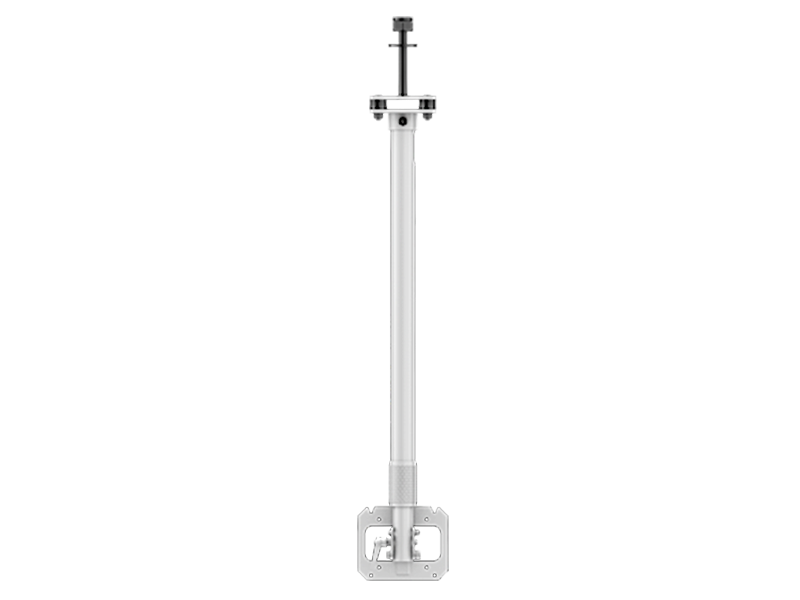

Hanwha - SBP-59PVMW - Telescopic Pendant Mount for PVM Monitor, White
Part number:
SBP-59PVMW
Price:
Telescopic PVM uni-strut mount, 5'-9’ drop length, VESA compatible 75x75mm, 100x100mm, Up to 25° of tilt and 360° continuous rotation, white
Features:
- Aluminum and steel construction
- Extends from 5ft top 9ft
- VESA 75 Mount
- +0 deg./-25 deg. Tilt Angle
- 360 deg. rotation
| Materials | Aluminum and Steel |
| Dimensions | Minimum length: 5ft (152.4cm) Maximum length: 9ft(274.32cm) |
| Monitor | VESA 75, 100 (Adjustable Tilt) |
| Color | White |
| Weight | 12 lb(5.4kg) |
| Max Load | 35 lb (15.9kg) |
| Tilt | +0°/-25° |
| Rotation | 360° |
| Mount | Uni-strut |
Name
Description
Size
Downloads
File
SBP-59PVMW / 59PVMB CAD
0.7mb
File
SBP-59PVMW / 59PVMB Specifications
0.4mb
File
Telescopic Pendant Mount for PVM Monitor Manual
1.1mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.5mb
