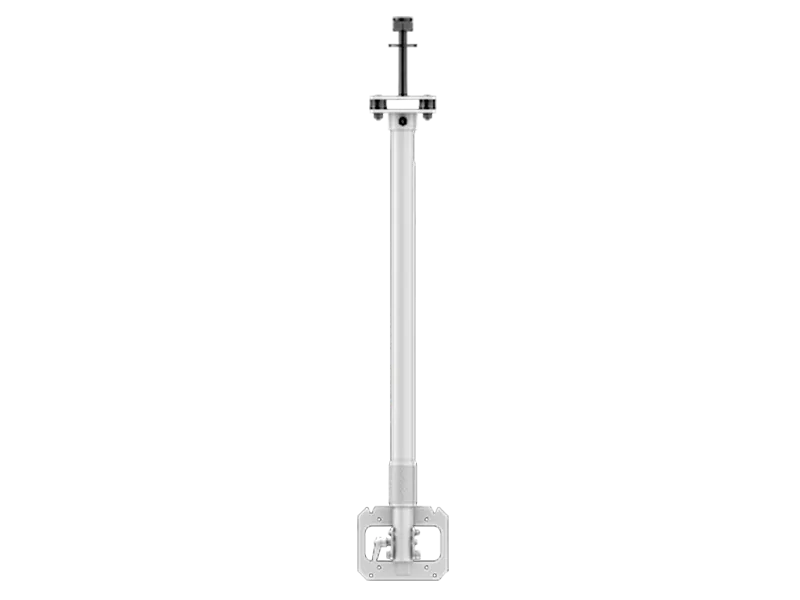

Hanwha - SBP-917PVMW1 - Telescopic Pendant Mount for PVM Monitor, White
Part number:
SBP-917PVMW1
Price:
Telescopic PVM uni-strut mount, 9.5'-17’ drop length, VESA compatible 75x75mm, 100x100mm, Up to 25° of tilt and 360° continuous rotation, white
Features:
- Aluminum and steel construction
- Extends from 9ft to 17ft
- VESA 75 Mount
- +0 deg./-25 deg. Tilt Angle
- 360 deg. rotation
- Redesigned package length is less than 6ft. to ship via common carrier
- Composed of 2 fixed sections and 1 telescoping section
| Materials | Aluminum and Steel |
| Dimensions | Minimum length: 9.5ft(289.56cm) Maximum length: 17ft(518.16cm) |
| Monitor | VESA 75, 100 (Adjustable Tilt) |
| Color | White |
| Weight | 14 lb (6.4kg) |
| Max Load | 35 lb (15.9kg) |
| Tilt | +0°/-25° |
| Rotation | 360° |
| Mount | Uni-strut |
Name
Description
Size
Downloads
File
Specification
0.4mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.4mb
File
CAD
0.3mb
File
Manual
1.1mb
