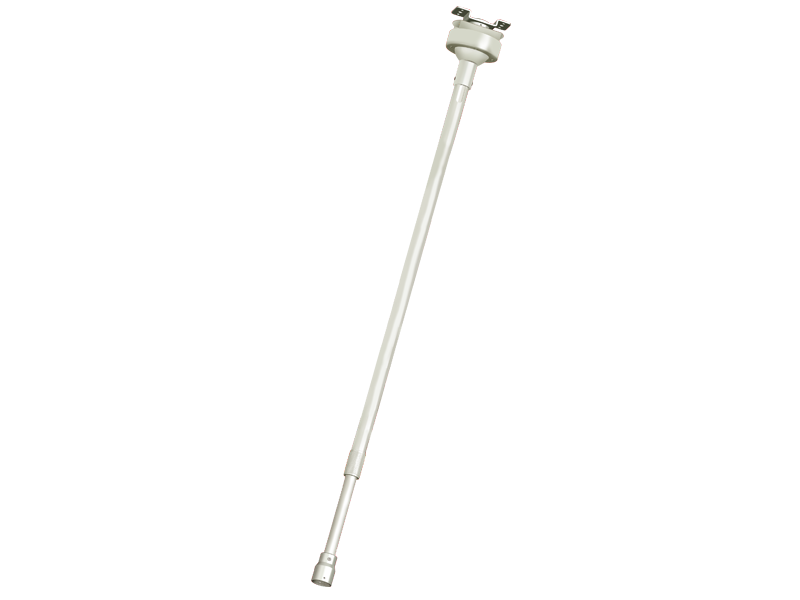

Hanwha - SBP-302CMAS - Telescopic Pendant Mount with Swivel Adaptor (Ivory)
Part number:
SBP-302CMAS
Price:
Telescopic pendant mount accessory with 90 degrees swivel joint, 4.5’ to 8’ adjustable, includes SBP-302CMA for ceiling mount, Ivory color.
Features:
- Aluminum and steel construction
- Extends from 4.5 ft to 8 ft
- 1.5" NPT thread compatible
- 45 deg. pivot angle
- Compatible with all ivory Hanwha Hanging Mounts
| Materials | Aluminum and Steel |
| Dimensions (WxHxD) | 4.57" x 4.57" x 5.05" (116 x 116 x 80mm) |
| Pipe Thread | 1.5" NPT male (top) |
| Weight | 4lb (1.8kg) |
| Max Load | 30lb (13.6kg) |
| Pivot Angle | ±45° |
| Color | Ivory White |
| Applicable Mount | All Hanwha Hanging Mount (1.5" NPT) |
| Optional Accessories | SBP-302CM(W) telescopic pendant mount SBP-302CMA(W) single joist ceiling mount adapter SBP-302CMB(W)W backbox for pendant and ceiling mount SBP-302CM(W)-12 extension pipe, 12" SBP-302CM(W)-36 extension pipe, 36" |
| Cable Routing | Cable hole |
Name
Description
Size
Downloads
File
Datasheet
0.6mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.5mb
File
HT-SF-FP - specifications
0.4mb
File
SBP-302CMAS CAD
0.3mb
File
Manual
1.1mb
