Hanwha - SBP-160TMW1 - Tilted Wall Mount White
Part number:
SBP-160TMW1
Price:

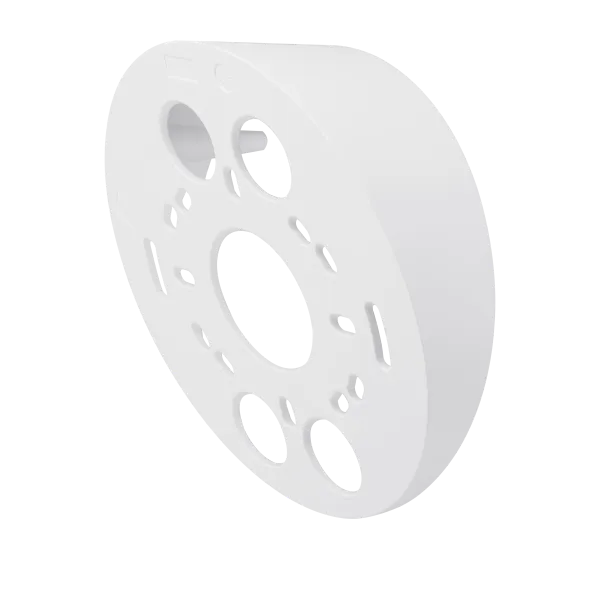

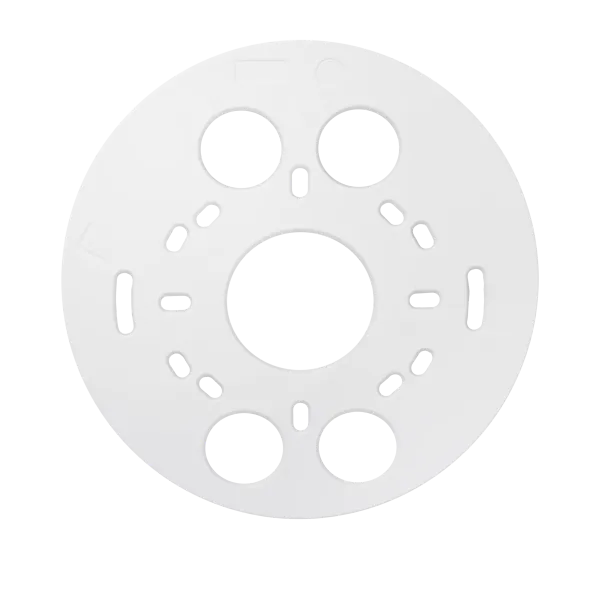

The 20° tilt on this aluminum mounting solution is designed to maximize your effective field of view with wall-mounted fisheye or dome cameras. This adapter is compatible with the following camera units:
- XNF-9013RV
- XNF-9010RV
- XNF-9010RVM
- XND-9082RV
- XND-8082RV
- XND-6081RV
- XND-6081REV
- XND-8081RV
- XND-8081REV
- PND-A9081RV
| Environmental | |
| Operationg Temperature / Humidity | (-)50°C ~ +60°C(-58°F ~ +140°F) / Less than 100% RH |
| Storage Temperature / Humidity | (-)50°C ~ +60°C(-58°F ~ +140°F) / Less than 100% RH |
| MECHANICAL | |
| Color | White |
| Material | Aluminum |
| RAL code | RAL9003 |
| Product dimensions / weight | Ø160.0x57.6mm(6.30x2.27"), 325g(0.72 lb) |
| Mount Screw size | TR20 |
| Supported products | XNF-9010RV ※ For further compatible models, please visit our website or use Toolbox |
