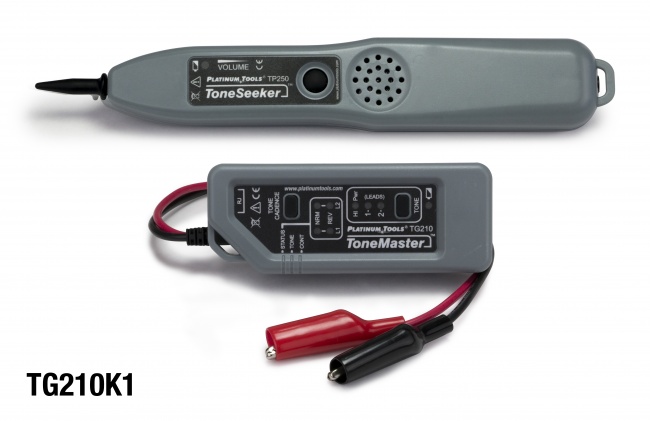

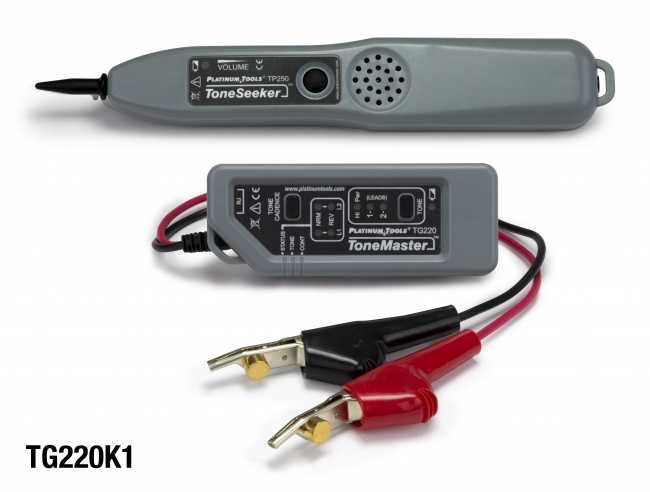

The Platinum Tools ToneMaster high-power tone generator enables signal detection over 20 miles away and makes tracing through walls and enclosures easier with multiple tones and power levels suited for network, signal wire, coax, and telephone cable applications.

Four tone amplitude levels include normal and half, high-powered normal and half, with the half amplitude unbalanced for stronger signal effect on twisted pairs. In addition, depending on test requirements, three distinctly different tones can be selected from the front panel.

Paired with the Platinum Tools ToneSeeker tracer the ToneMaster makes easy work of tracing and locating cables and cable ends.

Kit Includes:

• ToneMaster High Powered Tone Generator
• ToneSeeker Tone Tracer Probe

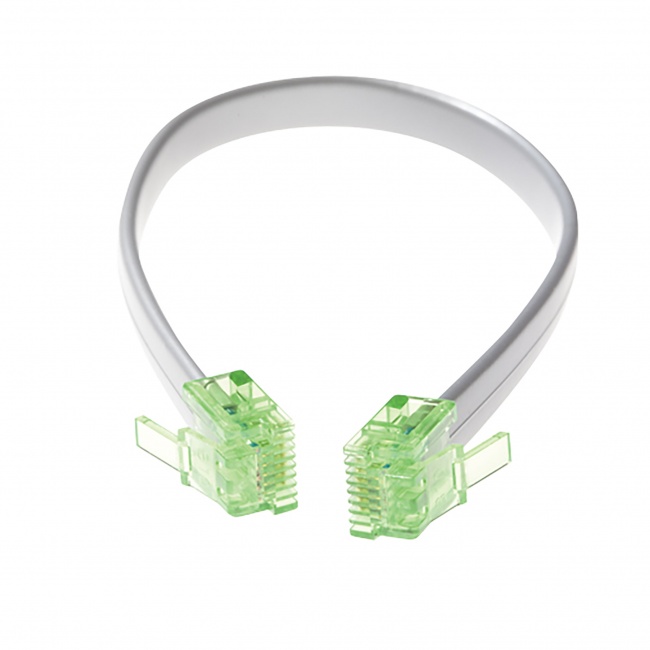

• No Fault, RJ12 Cable (connects to RJ11 and RJ45 jacks)
• Coax Toning Cable
• RJ45 Coupler

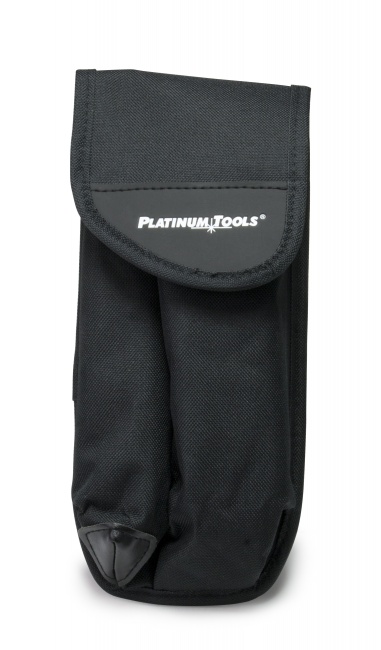

• Tone and Probe Belt Pouch

Features:

• Four tone amplitude configurations: Half, Full, High-Powered Half and High-Powered Full
• Half amplitude is unbalanced for stronger tone on twisted pairs
• Three distinctly different tones selected from front panel
• Constant Amplitude tone over life of battery for 100% tone strength all the time
• Auto-off — tone turns off after 15 minutes; prevents having dead battery if left on
• Tone may be added in any mode — allows phone sets without monitor feature to pick up tone
• No power draw in continuity mode with leads open— no dead battery if left in continuity
• Polarity indicator for phone lines
• RJ jack allows use of modular cable without adapters
• Use as Talk Battery to test dry phone (unpowered) lines
