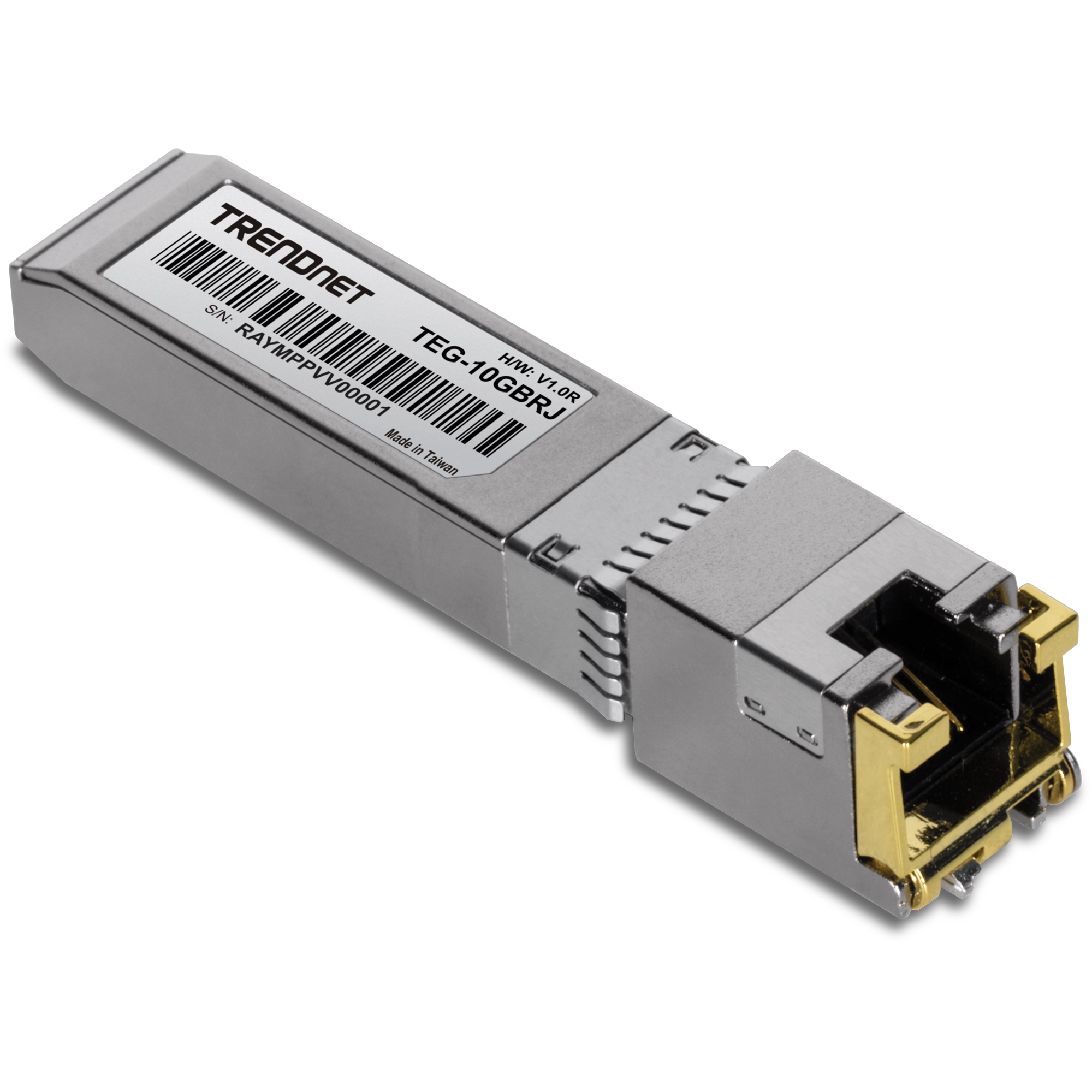

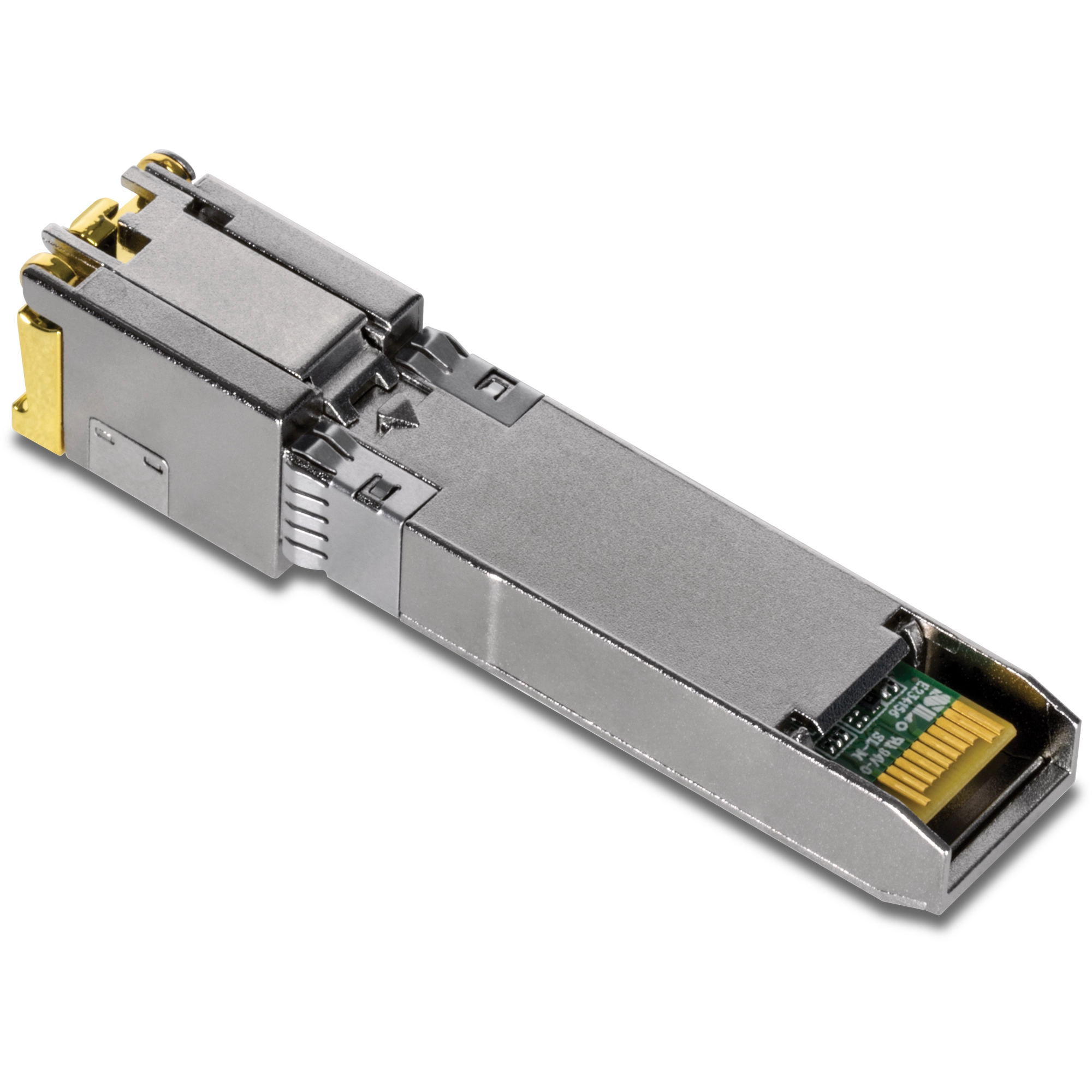

Trendnet - TEG-10GBRJ100 - 10G RJ45 Copper SFP+ Module (100m)
Part number:
Price:
- • Connect devices up to 30m (98ft.) over cat6a cabling (or better) at 10G speeds
- • Compliant with IEEE 802.3an 10 Gigabit Ethernet
- • Backwards compatible with IEEE 802.3bz multi-gigabit (2.5G / 5G) speeds
- • Compliant with IEEE 802.3ab and IEEE 802.3z Gigabit Ethernet
- • Shielded RJ-45 copper interface
- • Low Electromagnetic Interference (EMI) design
- • Digital Diagnostics Monitoring (DDM) support
- • Small Form-Factor Pluggable (SFP+) and Multi-Source Agreement (MSA) compliant
- • Hot-Pluggable
- • Low power consumption
- • NDAA / TAA compliant (U.S. and Canada only)
- • Lifetime Warranty
| Standards | • IEEE 802.3 • IEEE 802.3ae • IEEE 802.3az • IEEE 802.3an • IEEE 802.3ab |
| Device Interface | • SFP+ MSA Compliant • RJ-45 connector |
| Data Transfer Rate | Up to 10Gbps |
| Distance | • 10Gbps up to 30m (100ft.) with Cat. 6a/7 • 2.5G/5Gbps up to 50m (164ft.) with Cat. 5E • 1Gbps up to 100m (328ft.) with Cat. 5E |
| Special Features | • Hot pluggable • Metal enclosure • DDM support |
| Power | Max. Consumption: 3W |
| Operating Temperature | 0° – 65° C (32° – 149° F) |
| Operating Humidity | Max. 95% non-condensing |
| Dimensions | 68 x 13.4 x 13.8mm (2.6 x 0.52 x 0.53 in.) |
| Weight | 24g (0.8 oz.) |
| Certifications | CE, FCC |
| Warranty | Lifetime Warranty |
| Package Contents | TEG-10GBRJ |
Name
Description
Size
Downloads
File
TEG-10GBRJ100 - 10G RJ45 Copper SFP+ Module - Datasheet.pdf
0.9mb
File
TEG-10GBRJ100 - 10G RJ45 Copper SFP+ Module - QIG.pdf
1.9mb
TRENDnet’s 10G RJ-45 Copper SFP+ Module, model TEG-10GBRJ, converts a standard SFP+ slot into an RJ-45 multi-gigabit port for additional high-speed copper connectivity. This 10G copper SFP+ module works with standard SFP+ slots commonly found in network switches and fiber media converters. Save on equipment costs by repurposing a switch’s unused SFP+ slots for reliable copper connectivity with TRENDnet’s 10G copper SFP+ module.
