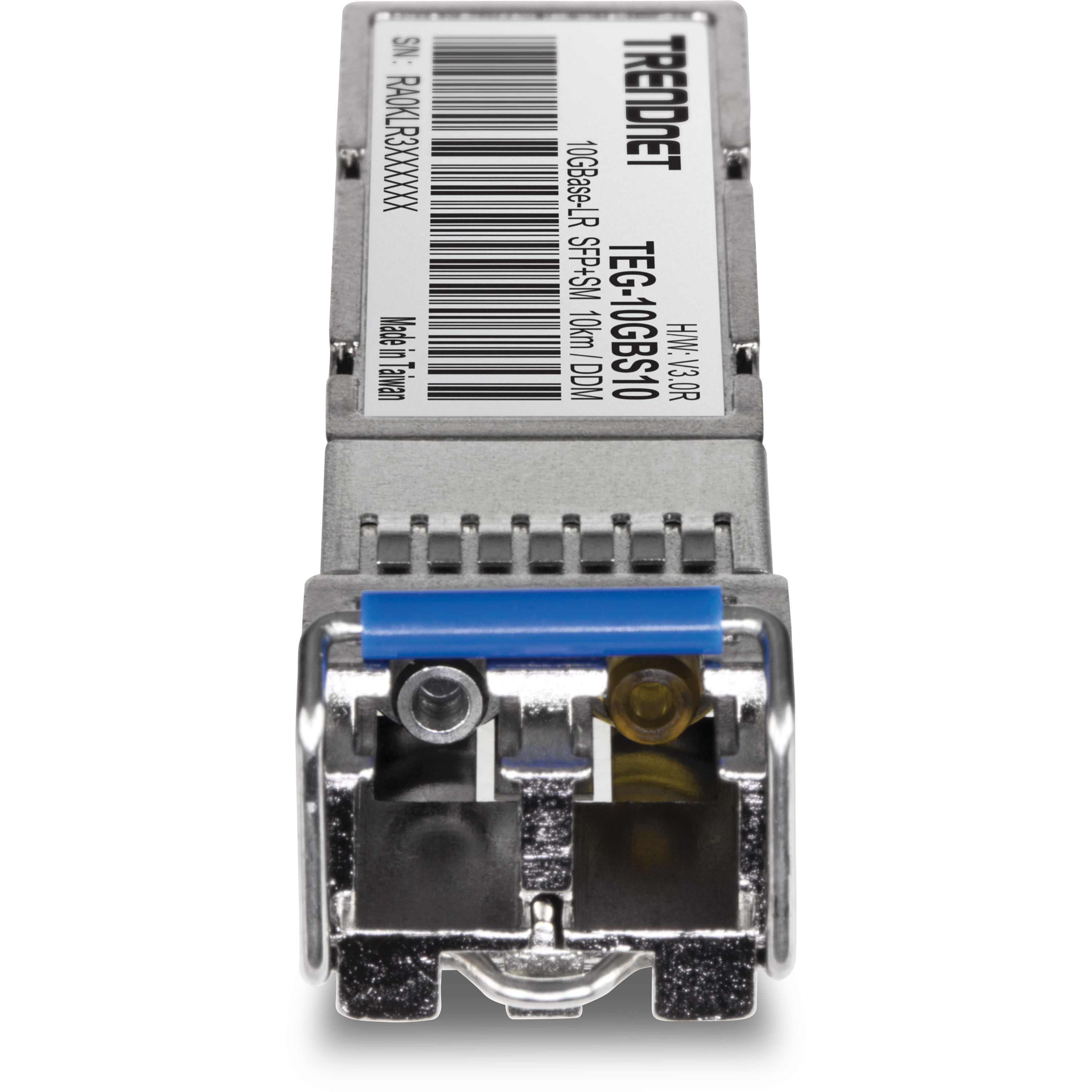

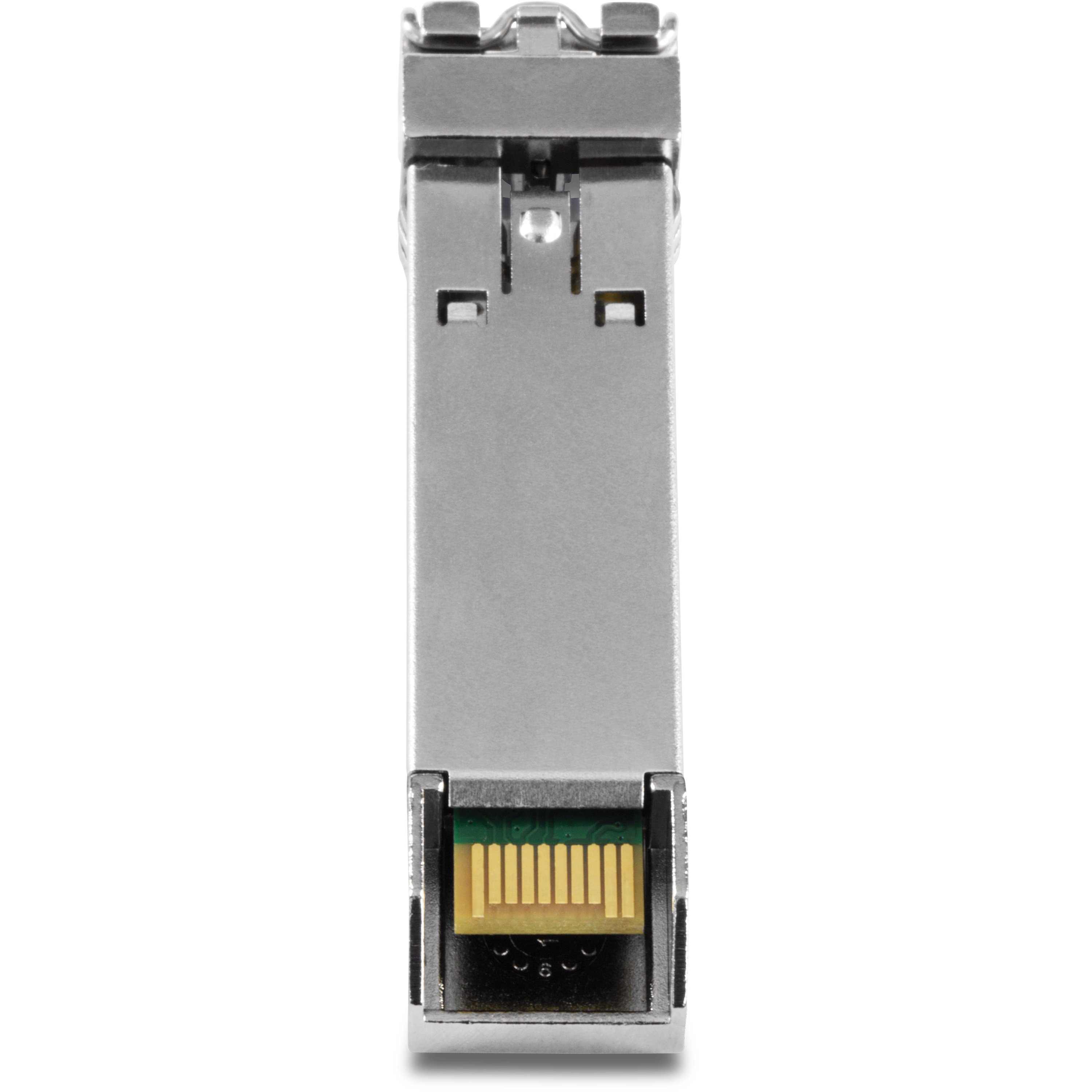

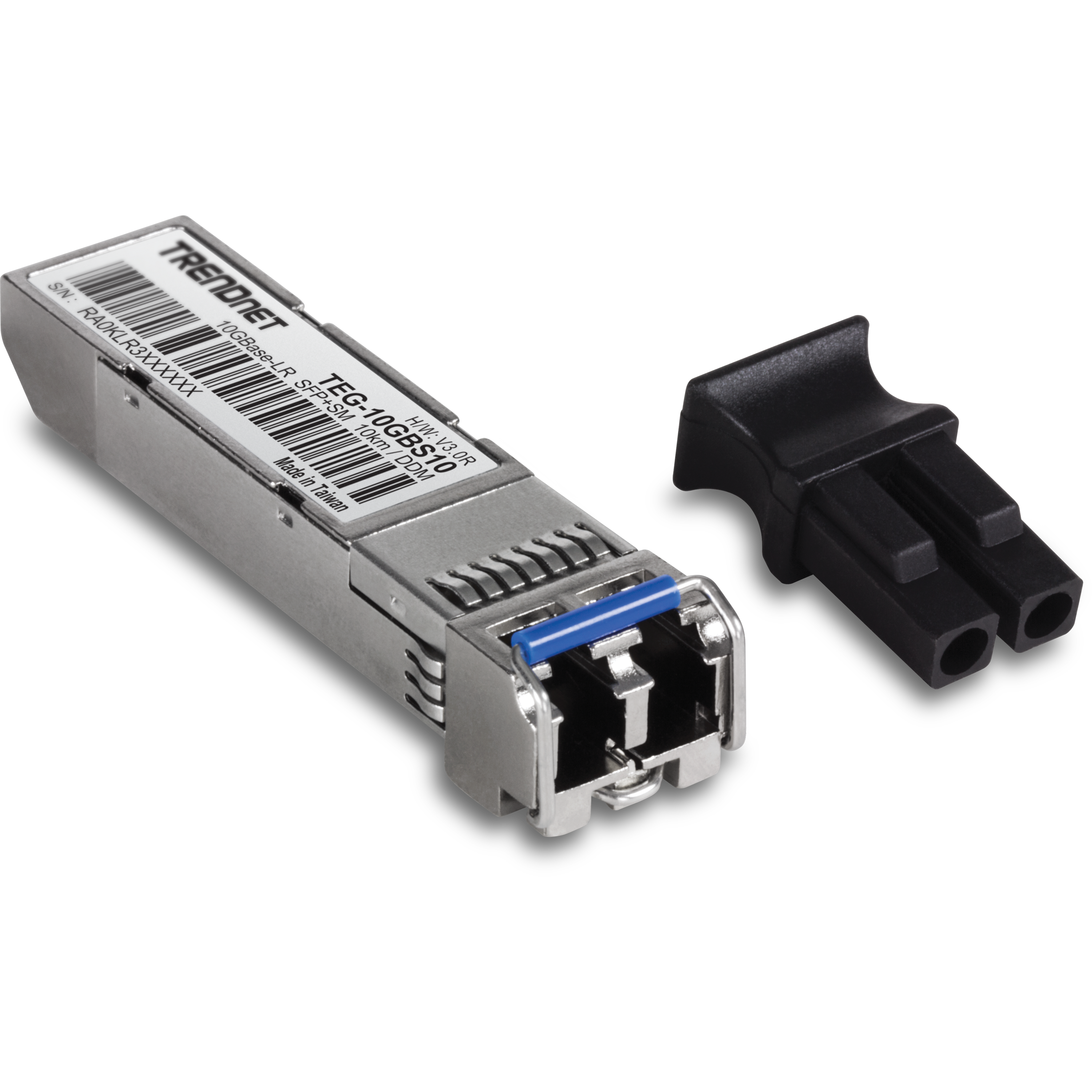

TRENDnet - TEG-10GBS10D3 - SFP+ Single Mode LC Module (10km)

Product Overview

The TEG-10GBS10 is an SFP+ single mode LC module designed for 10 Gigabit Ethernet fiber connections over distances up to 10 km. It supports data rates up to 10.31 Gbps using 1310 nm single mode transmission, making it suitable for high-speed network uplinks and long-distance fiber infrastructure.

Key Configuration

SFP+ single mode fiber module with duplex LC optical interface. Supports transmission distances up to 10 km / 6.21 mi. Supports data rates up to 10.31 Gbps over 1310 nm single mode fiber

Key Features

• • Provides up to 10 km transmission distance for single mode fiber links
• • Supports 10 Gigabit Ethernet data rates up to 10.31 Gbps
• • Compliant with IEEE 802.3ae 10 Gigabit Ethernet
• • Includes Digital Diagnostics Monitoring (DDM) support
• • Designed for low power consumption and low electromagnetic interference

Technical Context

The module uses 1310 nm single mode optical transmission for long-distance network connectivity and is compliant with SFP+ Multi-Source Agreement (MSA) requirements. DDM support allows compatible systems to monitor operational parameters for improved network visibility.

Installation Notes

The SFP+ form factor allows installation in compatible switches, routers, and network devices with SFP+ ports. The module features a duplex LC optical interface and is NDAA / TAA compliant for U.S. and Canada deployments. It includes a lifetime warranty.
