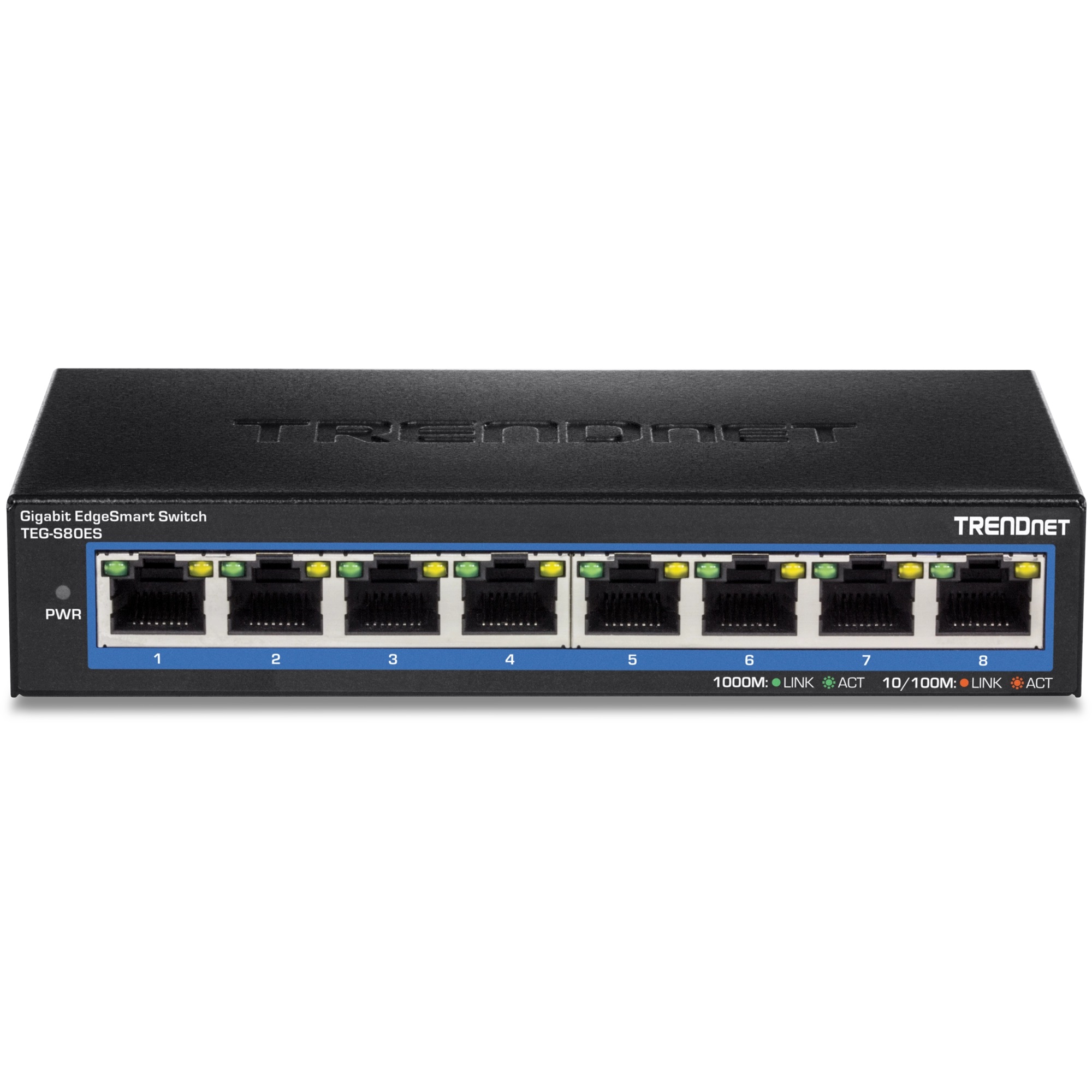

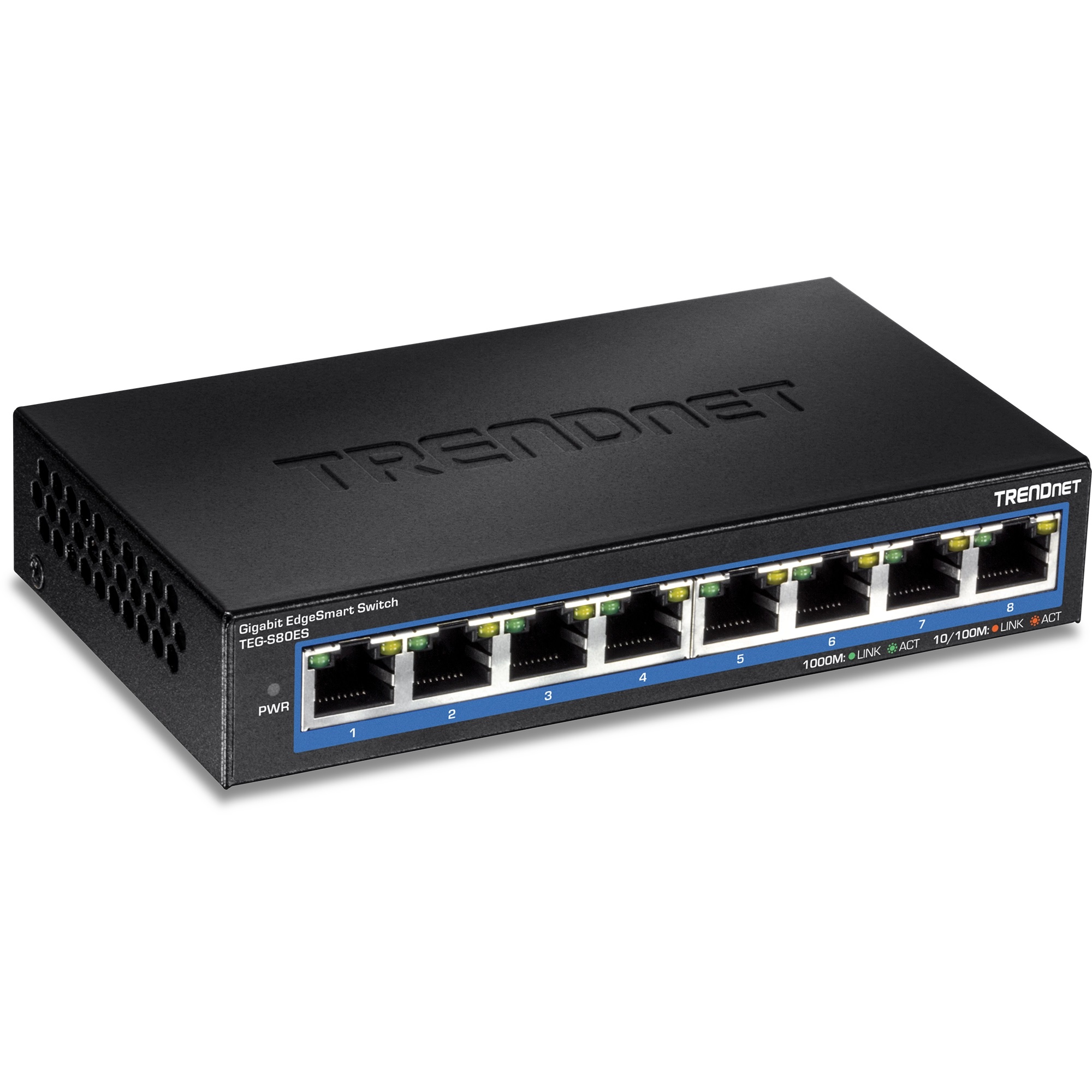

TRENDNET - TEG-S80ES - 8-Port Gigabit EdgeSmart Switch
TRENDNET - TEG-S80ES - 8-Port Gigabit EdgeSmart Switch
TRENDNET - TEG-S80ES - 8-Port Gigabit EdgeSmart Switch
TRENDNET - TEG-S80ES - 8-Port Gigabit EdgeSmart Switch
TRENDNET - TEG-S80ES - 8-Port Gigabit EdgeSmart Switch
TRENDNET - TEG-S80ES - 8-Port Gigabit EdgeSmart Switch TRENDNET - TEG-S80ES - 8-Port Gigabit EdgeSmart Switch TRENDNET - TEG-S80ES - 8-Port Gigabit EdgeSmart Switch TRENDNET - TEG-S80ES - 8-Port Gigabit EdgeSmart Switch

TRENDNET - TEG-S80ES - 8-Port Gigabit EdgeSmart Switch

Part number:
TEG-S80ES
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

TRENDnet's 8-Port Gigabit EdgeSmart Switch, model TEG-S80ES, is a cost-effective desktop managed switch solution for high-speed gigabit applications. This EdgeSmart switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, RSTP, VLAN, QoS, access control, static link aggregation, and monitoring. TRENDnet's TEG-S80ES allows for simple network integration into your SMB network.



Features:

  • 8 x Gigabit ports
  • Easy to use web-based management interface
  • Supports static link aggregation, RSTP, VLAN, QoS, and IGMP Snooping
  • Voice VLAN for VoIP applications
  • Bandwidth control per port
  • 16Gbps switching capacity
  • IEEE 802.1p CoS with queue scheduling support
  • Compact fanless design
  • Wall mountable metal housing
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty
Standards
  • IEEE 802.1d
  • IEEE 802.1w
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
Device Interface
  • 8 x Gigabit ports
  • LED indicators

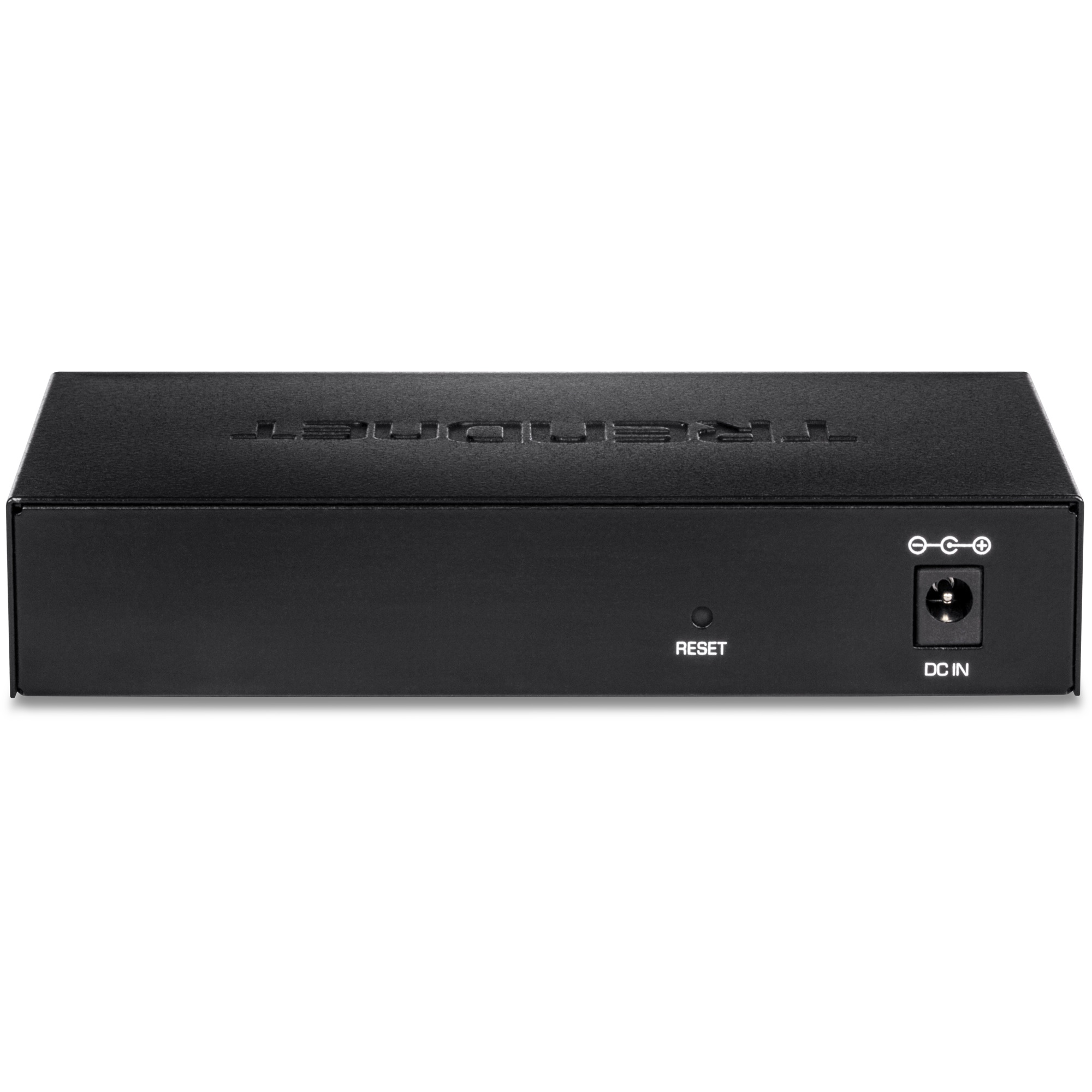

  • Reset button
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
Performance
  • Switch fabric: 16Gbps
  • RAM buffer: 192KB
  • MAC Address Table: 4K entries
  • Jumbo Frames: 9KB
  • Forwarding rate: 11.9Mpps (64-byte packet size)
Management
  • HTTP Web based GUI
  • SNMP v1, v2c
  • Cable diagnostic test
  • Backup/Restore Configuration
  • Upload Firmware
Spanning Tree
  • IEEE 802.1d STP (spanning tree protocol)
  • IEEE 802.1w RSTP (rapid spanning tree protocol)
Link Aggregation
  • Static link aggregation (up to 2 groups)
Quality of Service (QoS)
  • Port-based QoS
  • 802.1p Class of Service (CoS)
  • Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps)
  • Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
VLAN
  • Port-based VLAN
  • 802.1Q Tagged VLAN
  • Up to 32 VLAN groups, ID Range 1-4094
  • Private VLAN
  • Asymmetric VLAN
  • Voice VLAN (5 user defined OUIs)
Multicast
  • IGMP Snooping v1/2/3
  • Block unknown multicast source
  • Up to 32 multicast groups
Port Mirror
  • One to one
  • Many to one
Storm Control
  • Broadcast (Min. Limit: 8Kbps)
  • Multicast (Min. Limit: 8Kbps)
  • Loopback Detection
Special Features
  • Enable/disable 802.3az Power Saving
  • Wall mountable
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.2A
  • Output: 5V DC, 1A external power adapter
  • Max consumption: 4.94W
Fan / Acoustics
  • Fanless design
MTBF
  • 1,525,460 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 145 x 82 x 28mm (5.7 x 3.22 x 1.1 in.)
Weight
  • 317g (11.18 oz.)
Certifications
  • CE
  • FCC
Warranty
  • Lifetime Warranty*

PACKAGE CONTENTS

  • TEG-S80ES
  • Quick Installation Guide
  • Power adapter (5V DC, 1A)
