Trendnet - TEW-821DAP - AC1200 Dual Band PoE Access Point with Software Controller
- • High performance AC1200 PoE access point
- • Wireless AC wave 2 MU-MIMO technology boosts performance in a busy home
- • AC1200: concurrent 867Mbps WiFi AC + 300Mbps WiFi N bands
- • Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes
- • Gigabit PoE LAN port

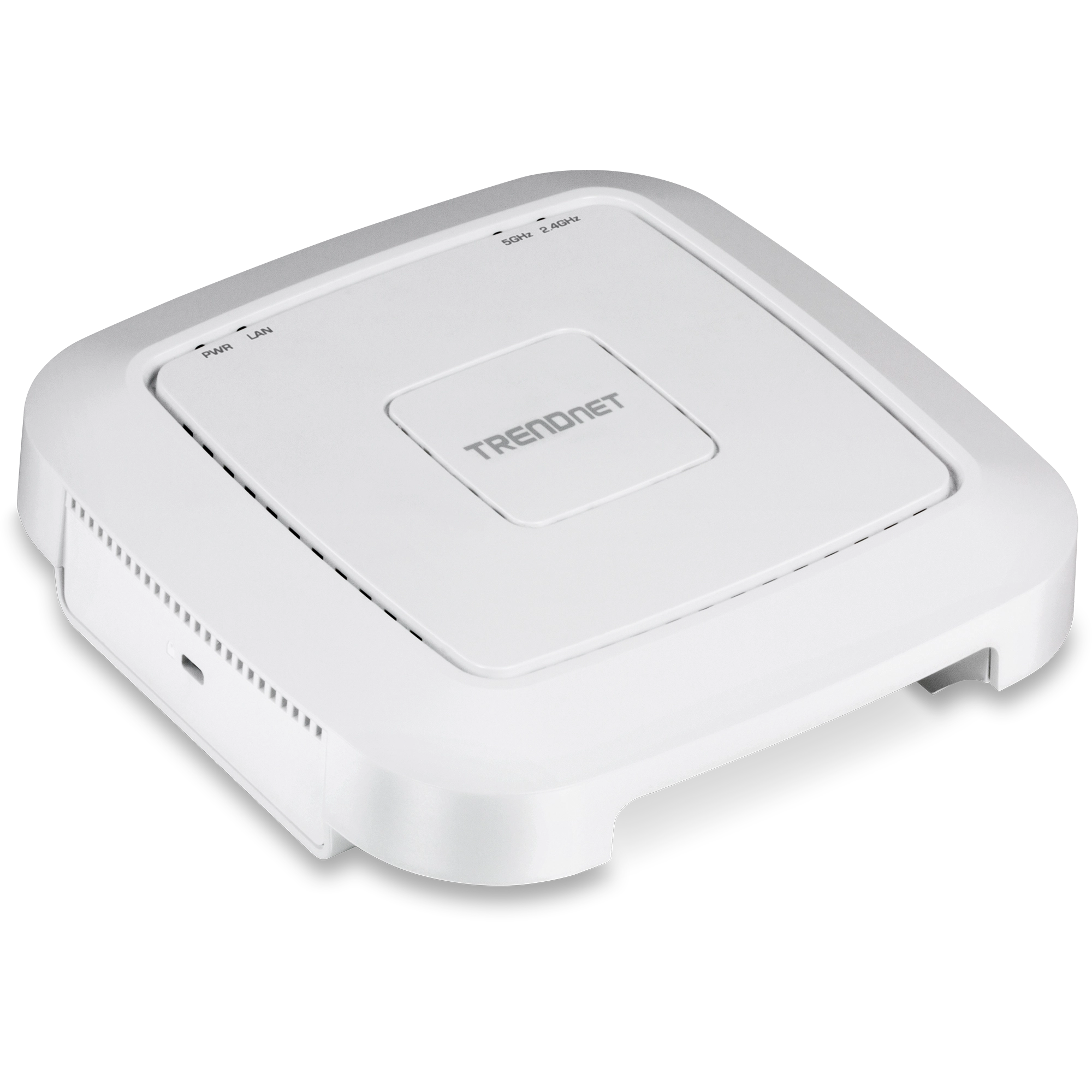

- • Low-profile housing blends into most environments

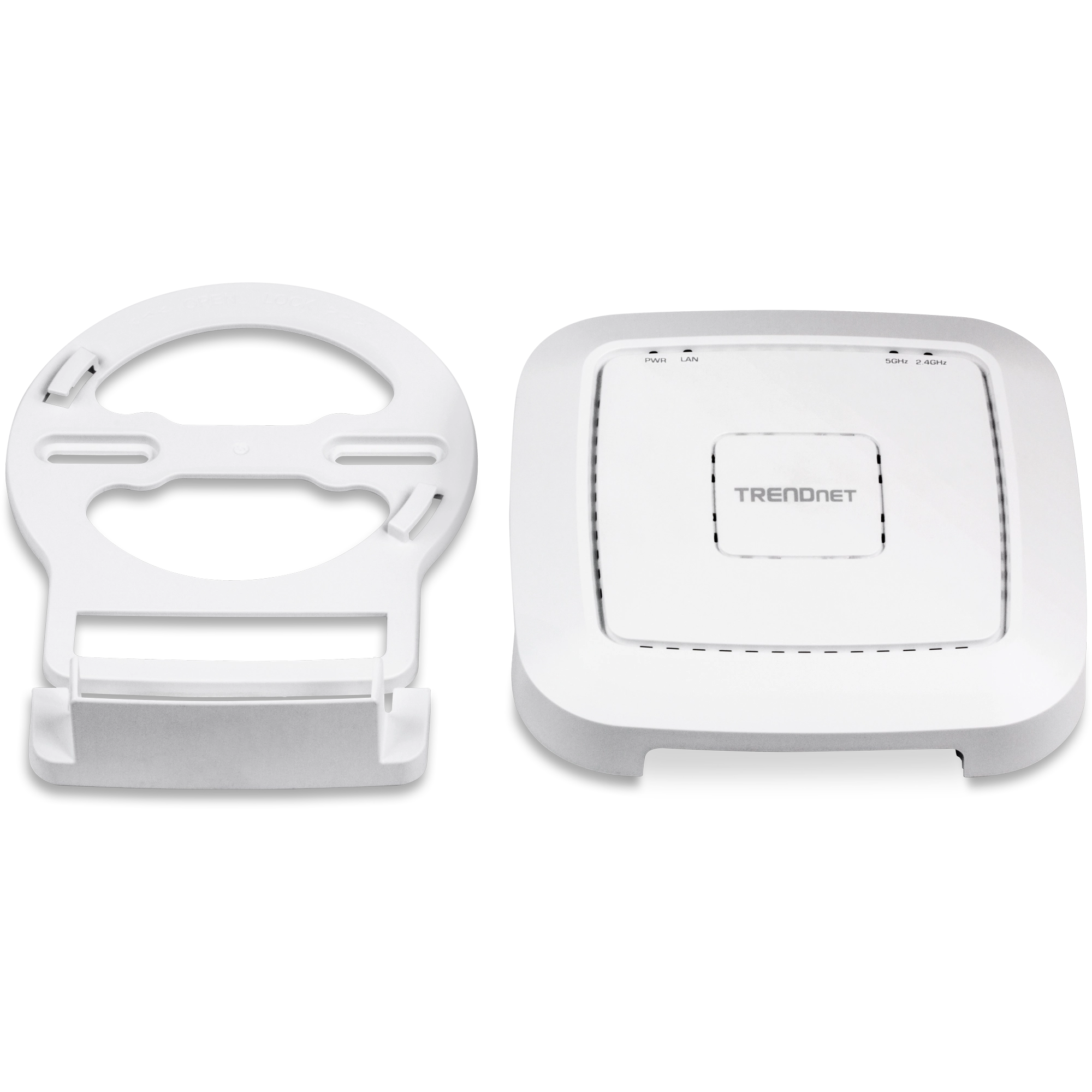

- • Includes wall / ceiling mounting plate with cable guard
- • Captive portal for hotspot applications
- • Compatible with TRENDnet's TEW-WLC100 and TEW-WLC100P wireless controllers
- • NDAA / TAA compliant (U.S. and Canada only)
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3x • IEEE 802.3ab • IEEE 802.3af • IEEE 802.1Q • IEEE 802.11a • IEEE 802.11b • IEEE 802.11g • IEEE 802.11n (up to 300 Mbps) • IEEE 802.11ac Wave 2 (up to 867 Mbps) |

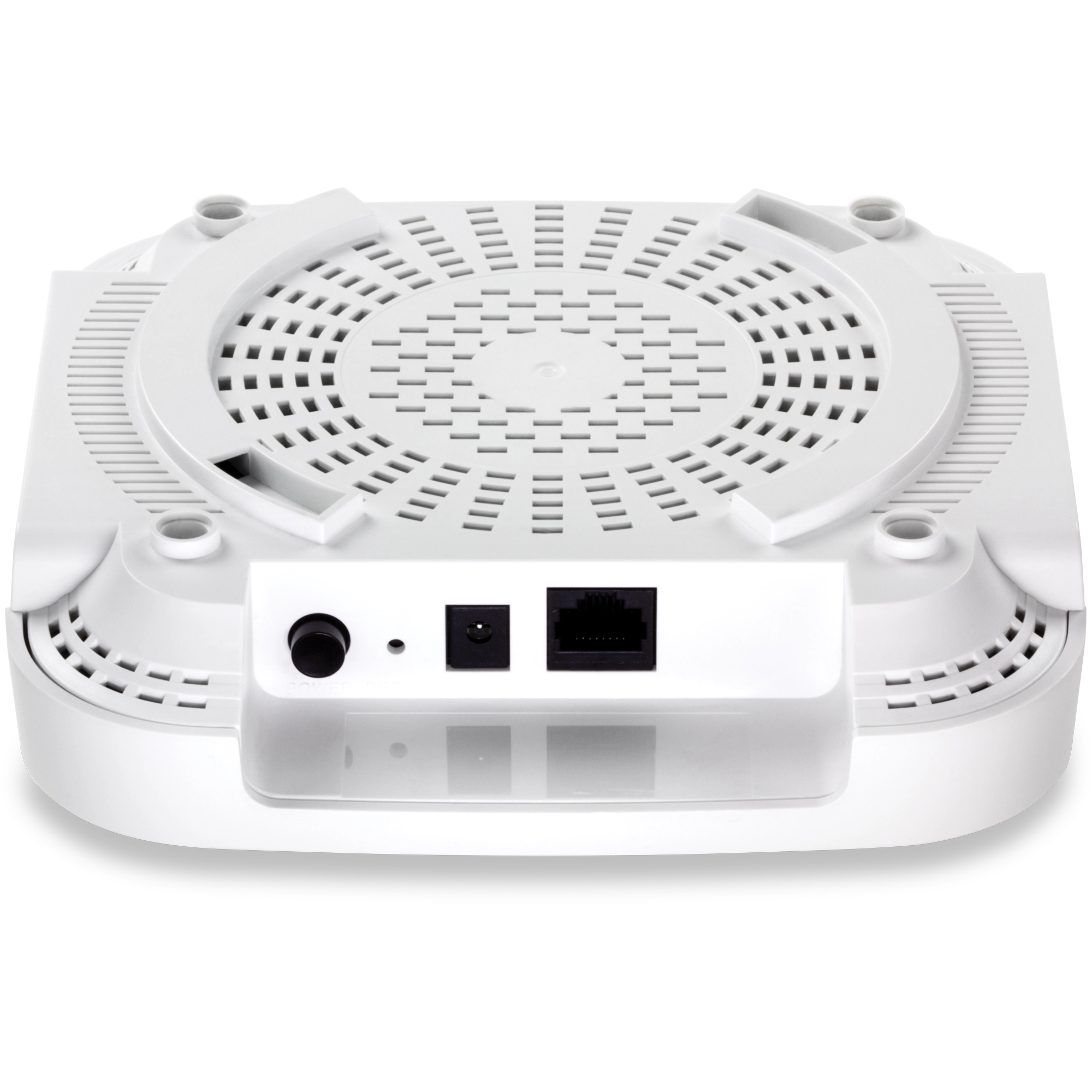

| Hardware Interface | • 1 x PoE Gigabit LAN port • Power port (optional non-PoE installation) • LED indicators • Mounting plate and cable guard • On/Off power button • Reset button |
| SSID | Up to 8 SSIDs per wireless band (16 total) |
| Frequency | 2.4GHz: 2.412 – 2.472GHz 5GHz: 5.180 – 5.8525GHz |
| Wireless Channels | • 2.4GHz: FCC: 1–11, ETSI: 1 – 13 • 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100,104,108,112,116, 132,136,140)** |
| Antenna Gain | • 2.4GHz: 2 x 3 dBi internal • 5GHz: 2 x 4 dBi internal |
| Wireless Output Power | • 802.11a: FCC: 19 dBm (max.) / CE: 19 dBm (max.) / IC: 19 dBm (max.) • 802.11b: FCC: 23 dBm (max.) / CE: 10 dBm (max.) / IC: 23 dBm (max.) • 802.11g: FCC: 19 dBm (max.) / CE: 12 dBm (max.) / IC: 19 dBm (max.) • 802.11n (2.4 GHz): FCC: 19 dBm (max.) / CE: 12 dBm (max.) / IC: 19 dBm (max.) • 802.11n (5 GHz): FCC: 19 dBm (max.) / CE: 19 dBm (max.) / IC: 19 dBm (max.) • 802.11ac: FCC: 18 dBm (max.) / CE: 18 dBm (max.) / IC: 18 dBm (max.) |
| Receiving Sensitivity | • 802.11a: -65 dBm (typical) @ 54 Mbps • 802.11b: -83 dBm (typical) @ 11 Mbps • 802.11g: -65 dBm (typical) @ 54 Mbps • 802.11n (2.4 GHz): -64 dBm (typical) @ 300 Mbps • 802.11n (5 GHz): -61 dBm (typical) @ 300 Mbps • 802.11ac: -51 dBm (typical) @ 867 Mbps |
| Power | • IEEE 802.3af Type 1 PoE PD Class 3 • Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1A external power adapter (optional) • Max. consumption: 8W |
| Operating Temperature | 0° – 40° C (32° – 104° F) |
| Operating Humidity | Max. 95% non-condensing |
| Certifications | CE, FCC, IC |
| Dimensions | 163 x 165 x 44mm (6.4 x 6.5 x 1.7 in.) |
| Weight | 372g (13.1 oz.) |
| Warranty | 3 years |
| Package Contents | • TEW-821DAP • Network cable (1.5m/5 ft.) • Quick Installation Guide • Power adapter (12V DC, 1A) • Mounting plate and cable guard |
The TRENDnet TEW-821DAP high-performance AC1200 dual-band indoor wireless PoE access point supports access point, client bridge, wireless distribution system access point, WDS bridge, WDS station and repeater modes. This indoor access point generates concurrent 867 Mbps WiFi AC and 300 Mbps WiFi N networks. Its MU-MIMO technology processes multiple data streams simultaneously, thereby increasing real-time Wi-Fi performance when multiple devices access the network.
The access point features advanced access control, QoS, traffic management, band steering and captive portal support. Its low-profile housing design blends into most environments and it includes a convenient wall/ceiling mounting plate with cable guard.
Update the access point to the latest firmware to gain access to TRENDnet Hive and easily manage and configure TRENDnet’s AC1200 Dual Band WiFi 5 PoE Access Point remotely. TRENDnet Hive is a cloud-based network management tool that reduces management time and costs. This WiFi 5 access point requires no additional hardware, server or personal cloud thanks to TRENDnet’s reliable cloud service.
