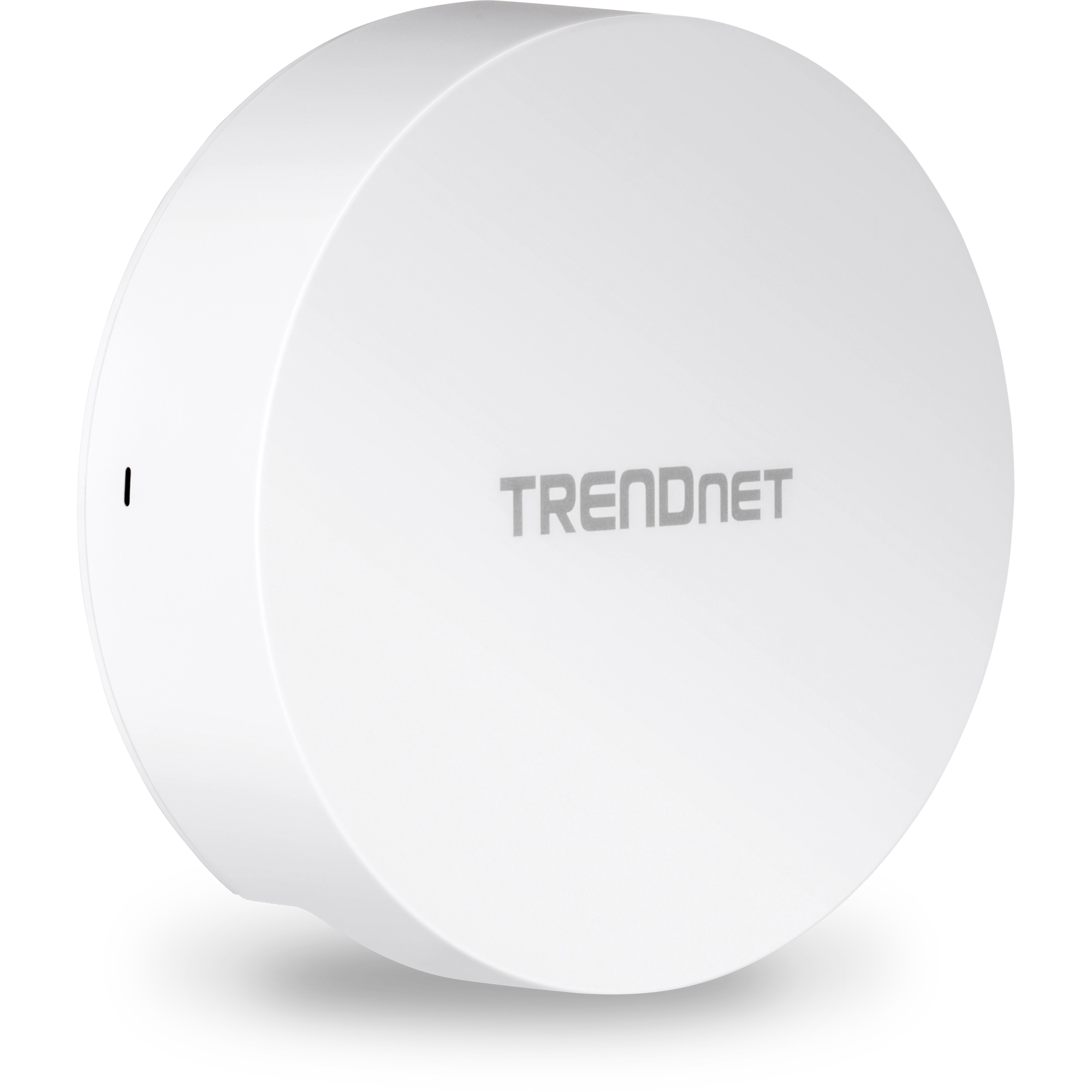

Trendnet - TEW-823DAP(CA) - AC1300 Dual Band PoE Indoor
Part number:
Price:
- • High performance AC1300 PoE access point
- • Wireless AC MU-MIMO technology boosts performance in a busy home
- • AC1300: concurrent 867Mbps WiFi AC + 400Mbps WiFi N bands
- • Access Point and Repeater modes
- • Supports the latest WPA3 wireless encryption
- • Gigabit PoE LAN port

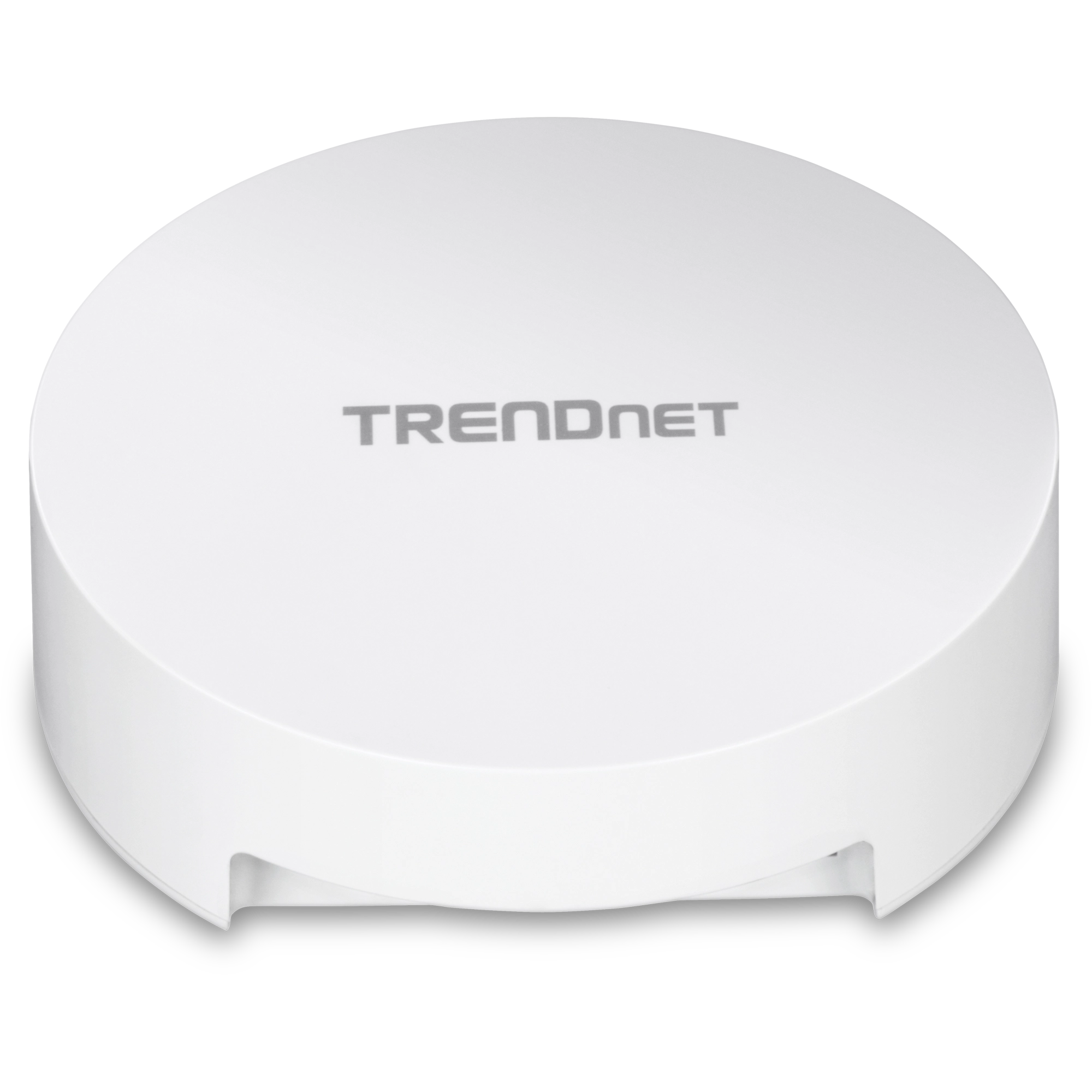

- • Low-profile housing blends into most environments
- • Includes wall / ceiling mounting plate
- • NDAA / TAA compliant (U.S. and Canada only)
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3x • IEEE 802.3ab • IEEE 802.3af • IEEE 802.1Q • IEEE 802.11a • IEEE 802.11b • IEEE 802.11g • IEEE 802.11k • IEEE 802.11n (up to 400Mbps)* • IEEE 802.11r • IEEE 802.11v • IEEE 802.11ac (up to 867Mbps)* |
| Hardware Interface | • 1 x 802.3af PoE Gigabit LAN port (power input) • Power port (12V DC, 1A external power adapter not included) • LED indicator • Reset button |
| SSID | Up to 8 SSIDs per wireless band (16 total) |
| Frequency | 2.4GHz: 2.412 – 2.472GHz 5GHz: 5.180 – 5.825GHz |
| Wireless Channels | 2.4GHz: FCC: 1–11, ETSI: 1–13 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165, ETSI: 36, 40, 44, 48 |
| MIMO Configuration | 5GHz: 2x2:2 2.4GHz: 2x2:2 |
| Antenna Gain | 2.4GHz: 2 x 4 dBi internal 5GHz: 2 x 5 dBi internal |
| Wireless Output Power | • 802.11a: FCC: 28.5 dBm (max.) / CE: 19 dBm (max.) • 802.11b: FCC: 26.5 dBm (max.) / CE: 18 dBm (max.) • 802.11g: FCC: 30 dBm (max.) / CE: 19 dBm (max.) • 802.11n (2.4GHz): FCC: 24.5 dBm (max.) / CE: 19.5 dBm (max.) • 802.11n (5GHz): FCC: 28.5 dBm (max.) / CE: 21 dBm (max.) • 802.11ac: FCC: 28.5 dBm (max.) / CE: 21 dBm (max.) |
| Receiving Sensitivity | • 802.11a: -73 dBm (typical) @ 54Mbps • 802.11b: -87 dBm (typical) @ 11Mbps • 802.11g: -73 dBm (typical) @ 54Mbps • 802.11n (2.4 GHz): -68 dBm (typical) @ 400Mbps • 802.11n (5 GHz): -67 dBm (typical) @ 400Mbps • 802.11ac: -57 dBm (typical) @ 867 Mbps |
| Power | • IEEE 802.3af Type 1 PoE PD Class 3 • Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1A external power adapter (not included) • Max. consumption: 11.9W |
| Operating Temperature | 0° – 40° C (32° – 104° F) |
| Operating Humidity | Max. 90% non-condensing |
| Certifications | CE, FCC, IC |
| Dimensions | 130 x 130 x 46mm (5.12 x 5.12 x 1.8 in.) |
| Weight | 188g (6.7 oz.) |
| Warranty | 3 year |

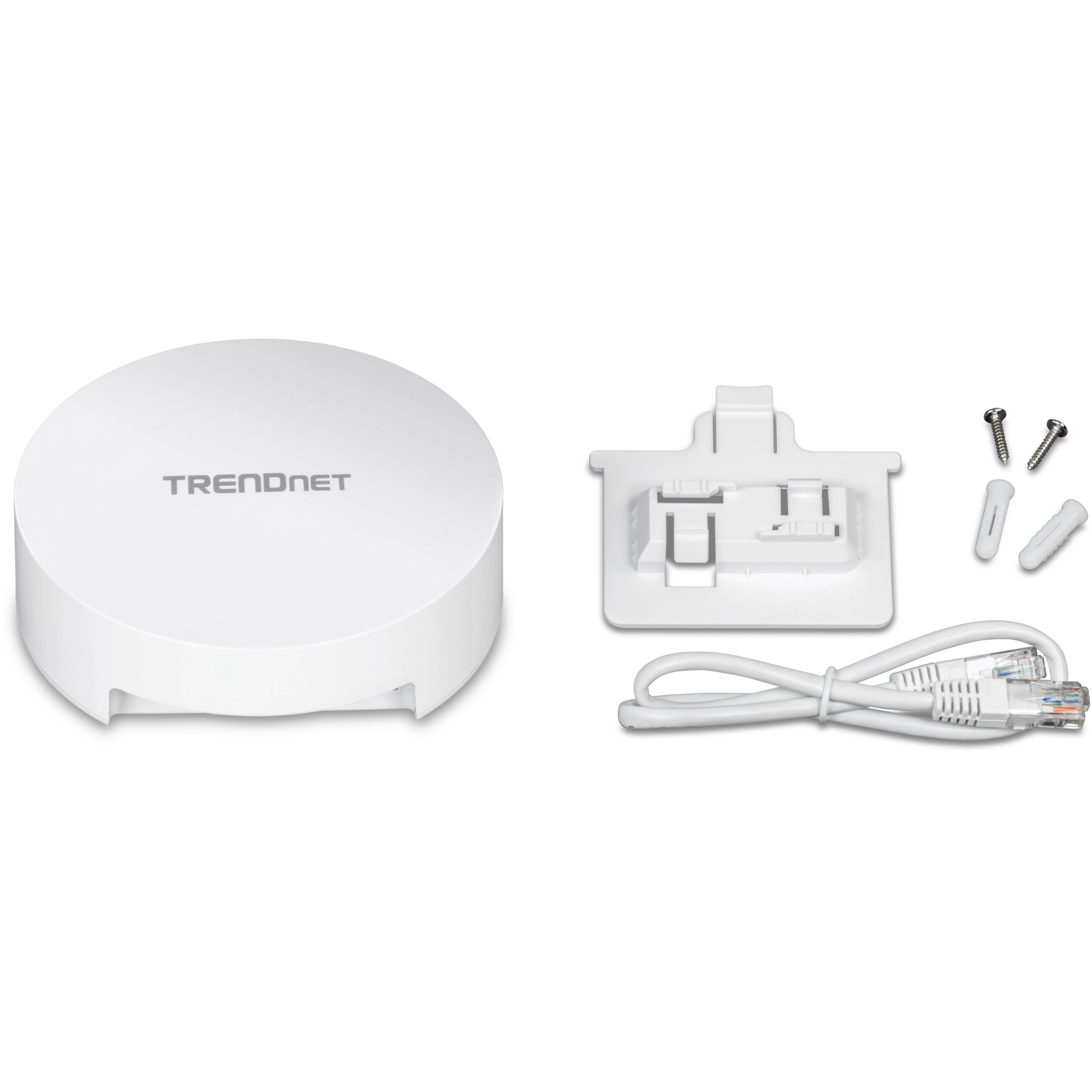

| Package Contents | • TEW-823DAP • Quick Installation Guide • Network cable (0.5m / 1.64 ft.) • Mounting plates |
Name
Description
Size
Downloads
File
TEW-823DAP - UG_TEW-823DAP.pdf
1.5mb
File
TEW-823DAP(CA) - AC1300 Dual Band PoE Indoor - Datasheet.pdf
1.7mb
TRENDnet’s high-performance AC1300 dual-band indoor wireless PoE access point TEW-823DAP supports access point and repeater modes. This indoor wireless access point generates concurrent 867 Mbps WiFi AC and 400 Mbps WiFi N networks. Its MU-MIMO technology processes multiple data streams simultaneously, thereby increasing real-time Wi-Fi performance when multiple devices access the network. The access point also features access control, bandwidth control and band steering. Its low-profile housing design blends into most environments and it includes a convenient wall/ceiling mounting plate.
