Trendnet - TEW-829DRU(CA) - AC3000 Wireless Gigabit Multi-WAN VPN SMB Router
Part number:
Price:
- • Dual-WAN ports support load-balancing and fail-over modes
- • 8 x Gigabit LAN ports, 1 x Console port
- • SSL, IPsec, PPTP, and L2TP w/IPsec VPN support
- • IEEE 802.1Q inter-VLAN routing
- • Three concurrent WiFi bands maximize device networking speeds
- • AC3000 Tri-Band: 1733Mbps (5GHz1) + 867Mbps (5GHz2) + 400Mbps (2.4GHz) bands
- • Pre-encrypted WiFi for your convenience
- • Wireless client isolation
- • Web browser and CLI management
- • Online firmware notification and upgrade
- • NDAA / TAA compliant (U.S. and Canada only)
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3x • IEEE 802.3ab • IEEE 802.1Q • IEEE 802.1X • IEEE 802.11a • IEEE 802.11b • IEEE 802.11g • IEEE 802.11n (up to 400 Mbps @ 256QAM)* • IEEE 802.11ac (5GHz1: up to 1733 Mbps, 5GHz2: up to 867 Mbps @ 256QAM)* |

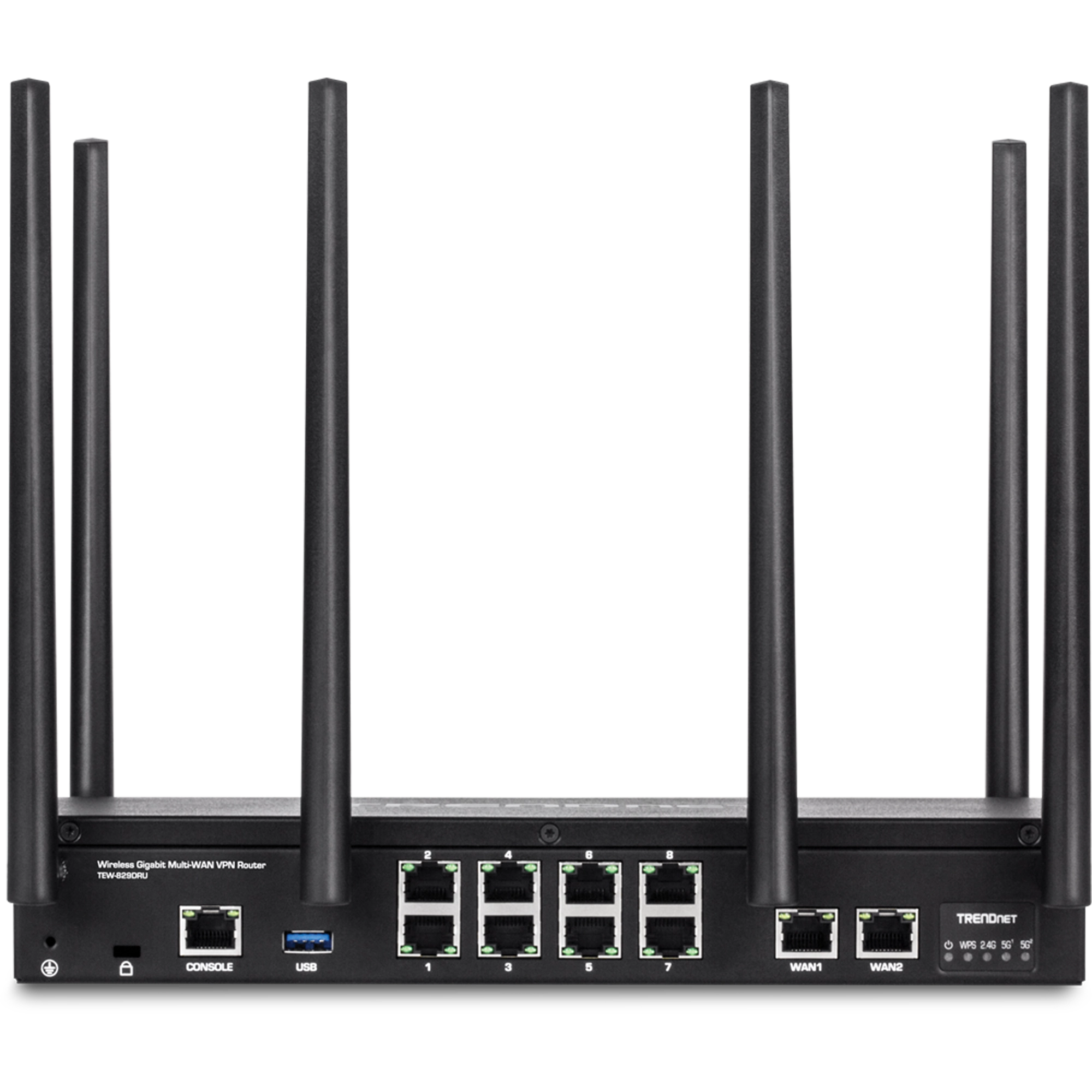

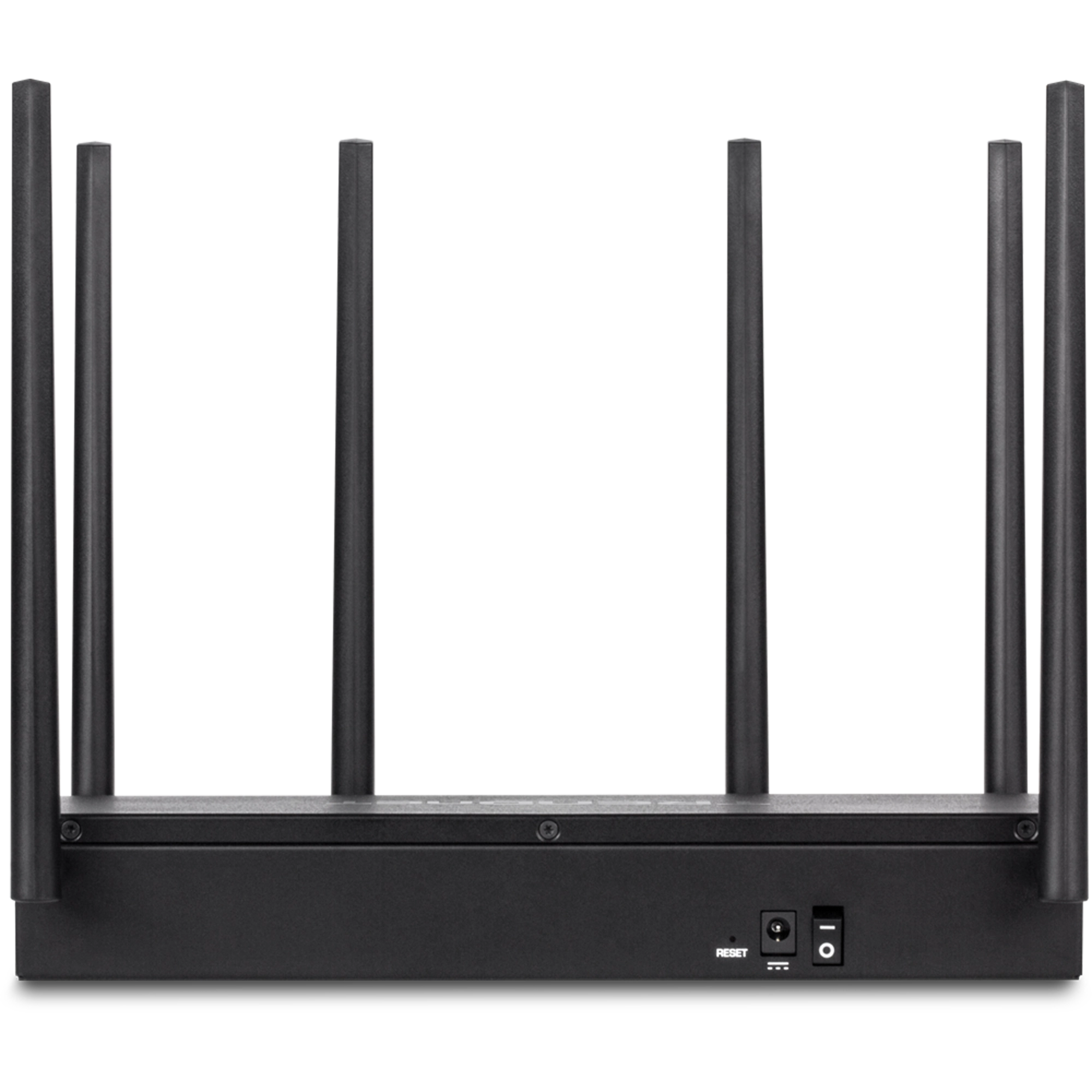

| Device Interface | • 8 x Gigabit LAN ports • 2 x Gigabit WAN ports (WAN failover / Load balancing) • 1 x USB 3.0 (Samba) • 1 x RJ-45 console port • Power switch • Reset button • LED indicators |
| Performance | • NAT (LAN-to-WAN) throughput: 900Mbps • Routing performance: 900Mbps • Maximum concurrent sessions: 32,000 • Maximum number of VLANs: 8 (ID: 1-4094) • IPsec VPN (AES-256/SHA-256/LAN-to-LAN) throughput: 90Mbps • SSL VPN (OpenVPN®) Throughput (Blowfish/SHA-1/Bridge): 15Mbps |
| VPN | • SSL VPN Server (Up to 10 tunnels) • OpenVPN Encryption: BF-CBC, AES-128-CBC, AES-256-CBC • OpenVPN HMAC Authentication: SHA1, SHA256 • SSL VPN Certificate: RSA • IPsec VPN Server / Site-to-Site (Up to 15 tunnels) • IPsec Encryption: DES, 3DES, AES-128/256 • IPsec Authentication: MD5, SHA1, SHA2-256, Certificate: X.509v3 • IPsec Key Exchange: IKE: IKEv1/2, Main Mode, Pre-shared Key, DH Groups 1/2/5/14 •IPsec Protocols: ESP (Transport/Tunnel), PFS DH Groups 1/2/5/14, DPD, Local/Remote ID: IP Address, FQDN • IPsec NAT Traversal • IPsec VPN failover support • PPTP/L2TP VPN Server (Up to 10 tunnels) • L2TP with IPsec VPN Server (Up to 8 tunnels shared with L2TP) • PPTP/L2TP Encryption: MPPE 40-bit, 128-bit, IPsec • PPTP/L2TP Authentication: MS-CHAPv1/2 |
| Networking | • WAN Modes: NAT, Classical Routing • NAT Modes: NAT, PAT, One-to-One NAT • WiFi client bridge mode • ISP IPv4 WAN Modes: DHCP, Static IP, PPPoE, PPTP, L2TP • ISP IPv6 WAN Modes: Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE • VLAN ID assignment on WAN interface • Routing: Static, RIPv1/v2, OSPFv/2, routing policies (Up to 20 entries) Static ARP (Up to 32 entries) • Inter-VLAN Routing (Up to 8 VLANs, 8 IP interfaces) • SSID per VLAN assignment • DHCP Server/Relay • Dynamic DNS: dyn.com, no-ip.com • WAN Failover • WAN Load Balancing • VPN passthrough: IPsec, PPTP, L2TP |
| Access Control | • Wireless encryption: WPA/WPA2-PSK, WPA/WPA2-RADIUS • NAT, virtual server/port forwarding, port triggering, firewall traffic rules, DMZ host, UPnP/NAT-PMP, allow/deny ping on WAN interfaces • ALG: PPTP/L2TP/IPsec VPN passthrough, FTP/TFTP/SIP/RTSP/IRC/H.323 passthrough • MAC & IP filtering • Custom scheduling for access control rules • Wireless client isolation • DoS prevention |
| Quality of Service | User defined classification rules with 4 priority queues WMM |
| Management/Monitoring | • CLI (Console/Telnet/SSH) command line management • HTTP/HTTPS web based management • Scheduled automatic reboot • Scheduled Wake-on-LAN (WoL) • View ARP and routing table entries • View CPU load, traffic/wireless usage, and NAT sessions • Internal system logging • Manual or online firmware upgrade and notification • Backup and restore configuration • Internal logging • Ping watchdog • Diagnostic tools: Built-in ping, traceroute, and ns-lookup network utilities |
| Frequency | 2.412 - 2.472 GHz 5.180 – 5.825 GHz |
| Modulation | • 802.11b: CCK, DQPSK, DBPSK • 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM • 802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM • 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM |
| Media Access Protocol | CSMA/CA with ACK |
| MIMO Configuration | • 5GHz: 4x4:4 • 2.4GHz: 2x2:2 |
| Antenna Gain | 2.4 GHz: 2 x 2.9 dBi (max.) / 5 GHz: 4 x 4.4 dBi detachable/external |
| Wireless Output Power (max output power without antenna gain) | • 802.11a: FCC: 25 dBm (max.) / IC: 23 dBm (max.) • 802.11b: FCC: 26 dBm (max.) / IC: 26 dBm (max.) • 802.11g: FCC: 23 dBm (max.) / IC: 23 dBm (max.) • 802.11n (2.4 GHz): FCC: 23 dBm (max.) / IC: 23 dBm (max.) • 802.11n (5 GHz): FCC: 23 dBm (max.) / IC: 23 dBm (max.) • 802.11ac: FCC: 23dBm (max.) / IC: 23dBm (max.) |
| Receiving Sensitivity (per chain) | • 802.11a: -70 dBm (typical) @ 54 Mbps • 802.11b: -83 dBm (typical) @ 11 Mbps • 802.11g: -70 dBm (typical) @ 54 Mbps • 802.11n (2.4 GHz): -59 dBm (typical) @ 400 Mbps • 802.11n (5 GHz): -59 dBm (typical) @ 800 Mbps • 802.11ac: -55 dBm (typical) @ 1733 Mbps |
| Wireless Channels | • 2.4 GHz: FCC: 1-11 • 5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 |
| Power | • Input: 100 – 240 V AC, 50 - 60 Hz, 1A • Output: 12V DC, 3A external power adapter • Consumption: 17.4W (max.) |
| Operating Temperature | 0 – 50 °C (32 – 122 °F) |
| Operating Humidity | Max. 95% non-condensing |
| Certifications | FCC IC |
| Dimensions | • 280 x 170 x 44.45 mm (11 x 6.7 x 1.75 in.) • Rack mountable 1U height |
| Weight | 1.24 kg (2.74 lbs.) |
| Warranty | 3 year |
| Package Contents | • TEW-829DRU • Quick Installation Guide • 6 x detachable high gain antennas • Network cable (1.5 m/5 ft.) • RJ-45 to RS-232 console cable (1.5m / 5 ft.) • Power adapter (12V DC, 3 A) • Rack mount kit |
Name
Description
Size
Downloads
File
TEW-829DRU(CA) - AC3000 Wireless Gigabit Multi-WAN VPN SMB Router - Datasheet.pdf
0.4mb
TRENDnet's AC3000 Tri-Band Wireless Gigabit Dual-WAN VPN SMB Router, model TEW-829DRU, features three concurrent WiFi bands to maximize device networking speeds: two separate high performance 802.11ac networks (5GHz1: 1733Mbps / 5GHz2: 867Mbps), and a 400Mbps Wireless N network. It features dual-WAN ports for load balancing or fail-over modes, and encrypted Virtual Private Network (VPN) access for remote users. Dual-WAN ports smooth network loading, minimize network downtime, and allow employees to access your network from the Internet—all with a single router.
