Trendnet - TEW-830MDR - AC2200 WiFi Mesh Router
- • AC2200: 5GHz1: 867Mbps WiFi AC | 5GHz2: 867Mbps WiFi AC | 2.4GHz: 400Mbps WiFi N
- • Includes 1 x AC2200 WiFi Mesh Router
- • Designed to replace older WiFi routers, extenders, and signal boosters
- • Intelligent WiFi mesh technology always connects users to the best WiFi Mesh Router
- • Add to existing AC2200 Mesh Router System for expanded WiFi coverage in larger home applications
- • Airtime fairness balances wireless client bandwidth resources
- • Pre-encrypted for your convenience
- • LAN/WAN IPv6 support
- • Multi-User MIMO for increased bandwidth efficiency and better user experience*
- • Seamless WiFi roaming
- • USB 3.0 port with Samba support
- • Implicit/Explicit Beamforming
- • NDAA / TAA compliant (U.S. and Canada only)
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3x • IEEE 802.3ab • IEEE 802.11a • IEEE 802.11b • IEEE 802.11g • IEEE 802.11n (up to 400Mbps @ 256QAM)* • IEEE 802.11ac (5GHz1: up to 867Mbps, 5GHz2: up to 867Mbps @ 256QAM)* |

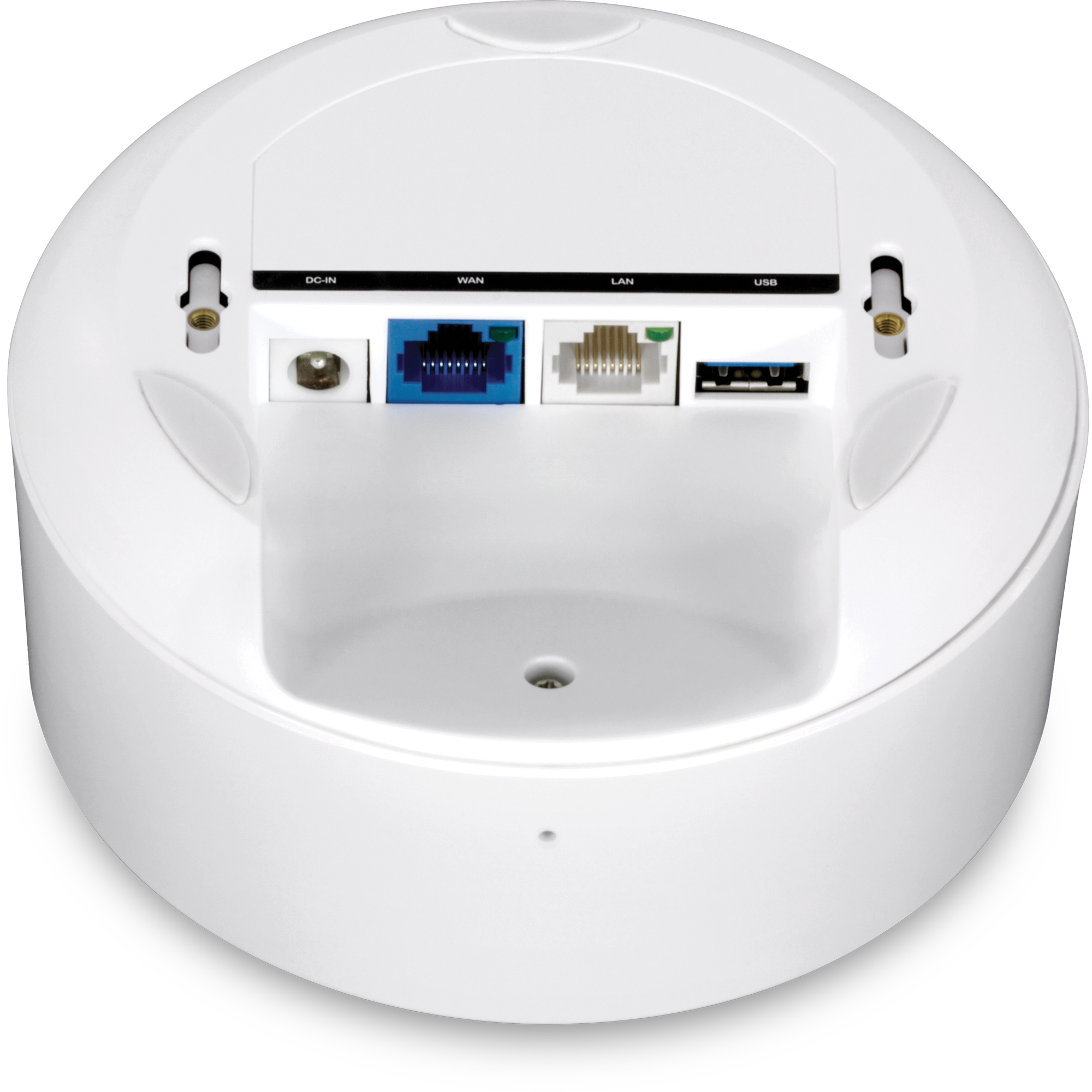

| Device Interface | 1 x Gigabit LAN port, 1 x Gigabit WAN port, 1 x USB 3.0 (Samba), Reset button, LED indicator |
| Frequency | 2.412 - 2.472GHz 5.180 – 5.825GHz |
| MIMO Configuration | 5GHz: 2x2:2 2.4GHz: 2x2:2 |
| Antenna Gain | 2.4GHz: 2 x 4.03 dBi (max.) / 5GHz: 4 x 5.64 dBi internal antennas |
| Wireless Channels | 2.4GHz: FCC: 1–11 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 |
| Power | Input: 100 – 240V AC, 50/60Hz Output: 12V DC, 1.5A external power adapter Max. Consumption: 15.12W |
| Operating Temperature | 0° – 40° C (32° – 104° F) |
| Operating Humidity | Max. 90% non-condensing |
| Certifications | FCC IC |
| Dimensions | 126 x 126 x 60mm (4.96 x 4.96 x 2.36 in.) |
| Weight | 372g (13.1 oz.) |
| Warranty | 3 year |
| Package Contents | TEW-830MDR, Quick Installation Guide. Network cable 0.5m (1.6 ft.), Power adapter (12V DC, 1.5A), Wall mount screws |
This is a dual-band WiFi mesh router designed for expandable, high-speed home or small office networking. It operates as a single unit but can be extended into a mesh network with additional compatible TRENDnet routers for broader coverage. The router features concurrent 2.4GHz (up to 400Mbps) and dual 5GHz (up to 867Mbps each) radios, along with a 2x2:2 MIMO configuration on both bands for improved data throughput and range. Wired connectivity is provided by one Gigabit WAN and one Gigabit LAN port, plus a USB 3.0 port for network storage.
The device supports modern networking standards including IPv6, beamforming for targeted signal strength, band steering to optimize client connections, and seamless roaming within the mesh. It includes comprehensive access control features such as WPA/WPA2 encryption, guest networks, parental controls, and firewall functions (NAT, SPI, DoS prevention). It is powered by a 12V DC, 1.5A adapter with a maximum consumption of 15.12W and operates within a temperature range of 0°C to 40°C (32°F to 104°F).
