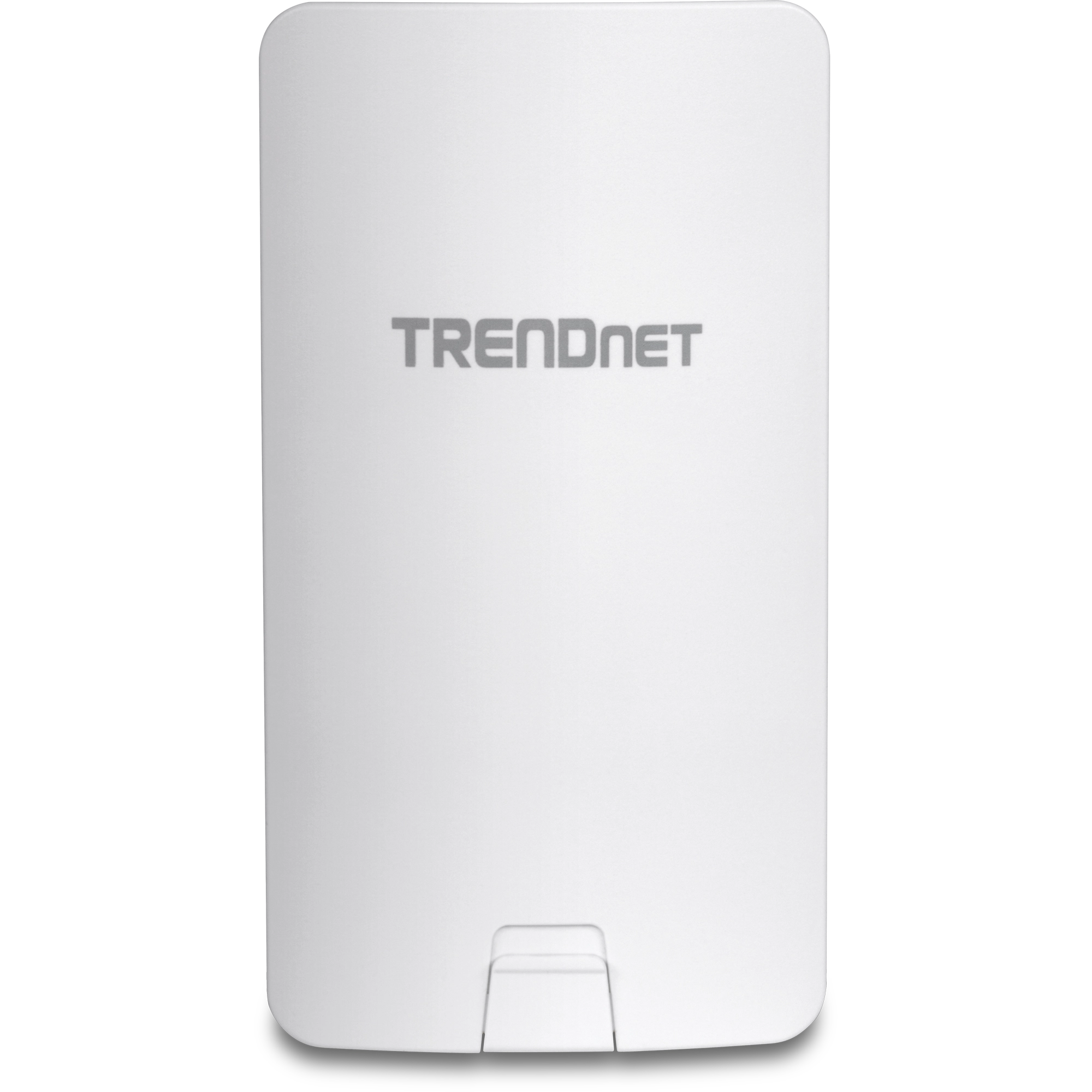

Trendnet - TEW-840APBO(CA) - AC1200 High Power Outdoor PoE Access Point (IPX6)
Part number:
Price:
- • 5GHz WiFi AC867 point-to-point bridge kit
- • Includes two preconfigured TEW-840APBO access points
- • 14 dBi directional antennas
- • Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes
- • Proprietary PoE power adapters included
- • IP56 outdoor weather rated housing
- • 1 x Gigabit PoE (in) port, and 1 x Gigabit port
- • NDAA / TAA compliant (U.S. and Canada only)
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3ab • IEEE 802.1d • IEEE 802.1Q VLAN • IEEE 802.1X network based authentication • IEEE 802.11d • IEEE 802.11e • IEEE 802.11h • IEEE 802.11i • IEEE 802.11a • IEEE 802.11r • IEEE 802.11k • IEEE 802.11n (5GHz up to 300Mbps @ 64QAM) • IEEE 802.11ac Wave 2 MU-MIMO (5GHz up to 867Mbps @ 256QAM) |

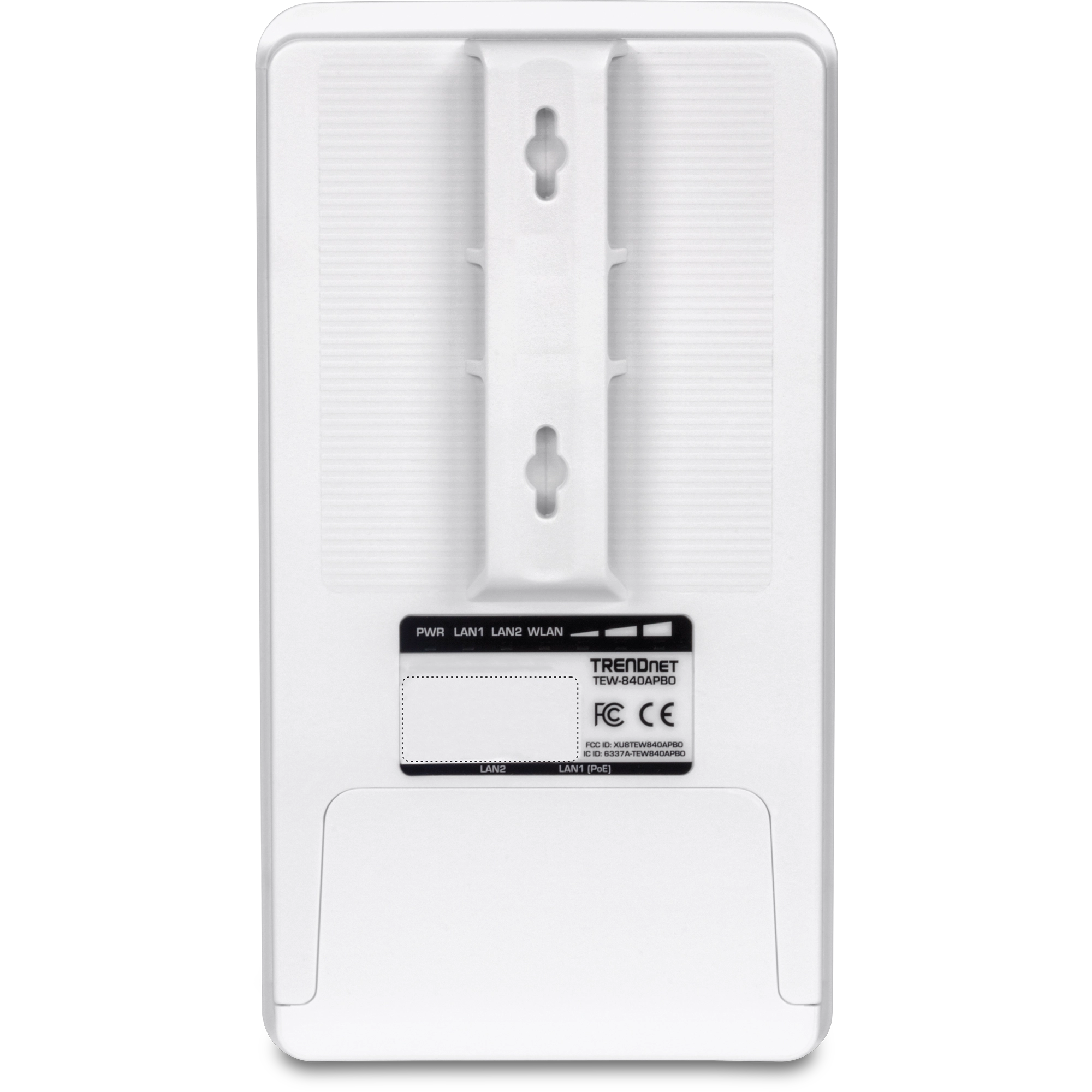

| Hardware Interface | • 1 x Gigabit PoE-in LAN1 port (proprietary PoE max. cable length 60m (197 ft.)) • 1 x Gigabit LAN2 port • LED indicators • Reset button |
| Special Features | • IP56 weather rated • 802.1Q VLAN • WiFi scheduling • Scheduled auto reboot • CSMA/TDMA support • Preconfigured point-to-point bridge kit |
| Access Control | • Wireless AP mode encryption: WPA2-PSK, WPA2-Enterprise • Wireless WDS bridge mode encryption (CSMA): WEP, AES • Wireless WDS AP/Station encryption (CSMA/TDMA): WPA2-PSK, WPA2-Enterprise • Access Controls: MAC (AP & WDS AP mode only), Layer 2 isolation, client Isolation • Client limit • Bandwidth limit (download/upload) per SSID or per client • RSSI Threshold |
| QoS | WMM |
| Operation Modes | • Access Point (AP) • WDS Access Point • WDS Bridge (CSMA mode only) • WDS Station • Client Bridge |
| SSID | • Up to 7 SSIDs • 802.1Q VLAN assignment per SSID |
| Management/Monitoring | • Web management (HTTP) • CLI management (Telnet, SSHv2) • SNMP v2c/v3 • IPv4 (DHCP/static IP), IPv6 (link-local, static IP, DHCPv6) assignment • Email alert • Upgrade firmware • Backup/restore configuration • Internal logging • External syslog • Scheduled automatic reboot • Restore to factory defaults • Ping test • Traceroute • Nslookup • NTP • Management VLAN ID • Schedule radio on/off per SSID • Real time traffic monitor • Real time CPU load monitor • Device discovery (Point to point AP connections only) • Speed test (Point to point AP connections only) • LED control |
| Frequency | FCC: 5.150GHz – 5.250GHz, 5.725GHz – 5.850GHz |
| Wireless Channels | • FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 • CA: 149, 153, 157, 161, 165 |
| Modulation | • 802.11a: OFDM with BPSK, QPSK and 16/64-QAM • 802.11n (5GHz): BPSK, QPSK, 16-QAM, 64-QAM with OFDM • 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM |
| Media Access Protocol | • CSMA/CA with ACK mode • TDMA (Point to point AP connections only) |
| Antenna Gain | 14 dBi internal patch antenna |
| Wireless Output Power (max output power without antenna gain) | • 802.11a: FCC: 23 dBm (max.) • 802.11n (5GHz): FCC: 22 dBm (max.) • 802.11ac: FCC: 22 dBm (max.) |
| Receiving Sensitivity (per chain) | • 802.11a: -71 dBm (typical) @ 54Mbps • 802.11n (5GHz): -66 dBm (typical) @ 300Mbps • 802.11ac: -55 dBm (typical) @ 867Mbps |
| Power | • Input: 100 – 240V AC, 50/60Hz, 0.4A • Output: 24V DC, 0.6A proprietary/passive PoE injector • Max. Consumption: 9.5W |
| Surge Protection | Line to ground: 2kV |
| ESD Protection | • Contact: 4kV • Air: 8kV |
| Operating Temperature | -22° - 60° C ( -7.6° - 140° F) |
| Operating Humidity | Max. 90 % non-condensing |
| Certifications | FCC |
| Dimensions | 185 x 100 x 35mm (7.3 x 3.9 x 1.4 in.) per access point |
| Weight | 268g (0.6 lbs.) per access point |
| Warranty | 3 year |

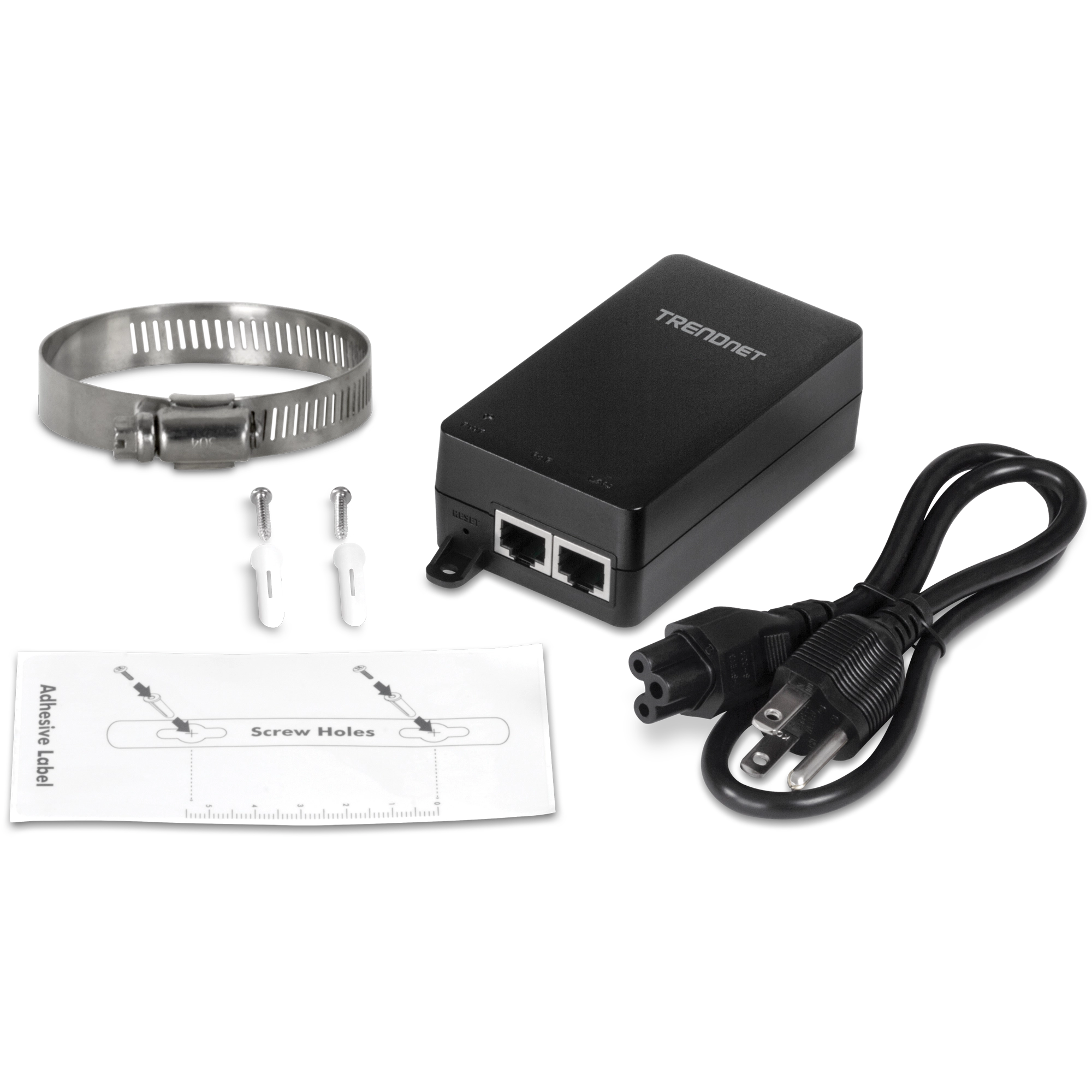

| Package Contents | • 2 x TEW-840APBO • Quick Installation Guide • Proprietary/Passive PoE injectors (24V DC, 0.6A) • Mounting hardware |
Name
Description
Size
Downloads
File
TEW-840APBO(CA) - AC1200 High Power Outdoor PoE Access Point - Datasheet.pdf
1.5mb
The TRENDnet TEW-840APBO2K 14 dBi WiFi AC867 Outdoor PoE Preconfigured Point-to-Point Bridge Kit provides installers with the simplest way to create a long-distance wireless point-to-point bridge. This preconfigured outdoor WiFi bridge kit provides long-range wireless AC867 connectivity. It conveniently links two locations together with wireless AC speed and performance. The IP56-rated housing is designed for outdoor environments and includes wall and pole mounting hardware.
