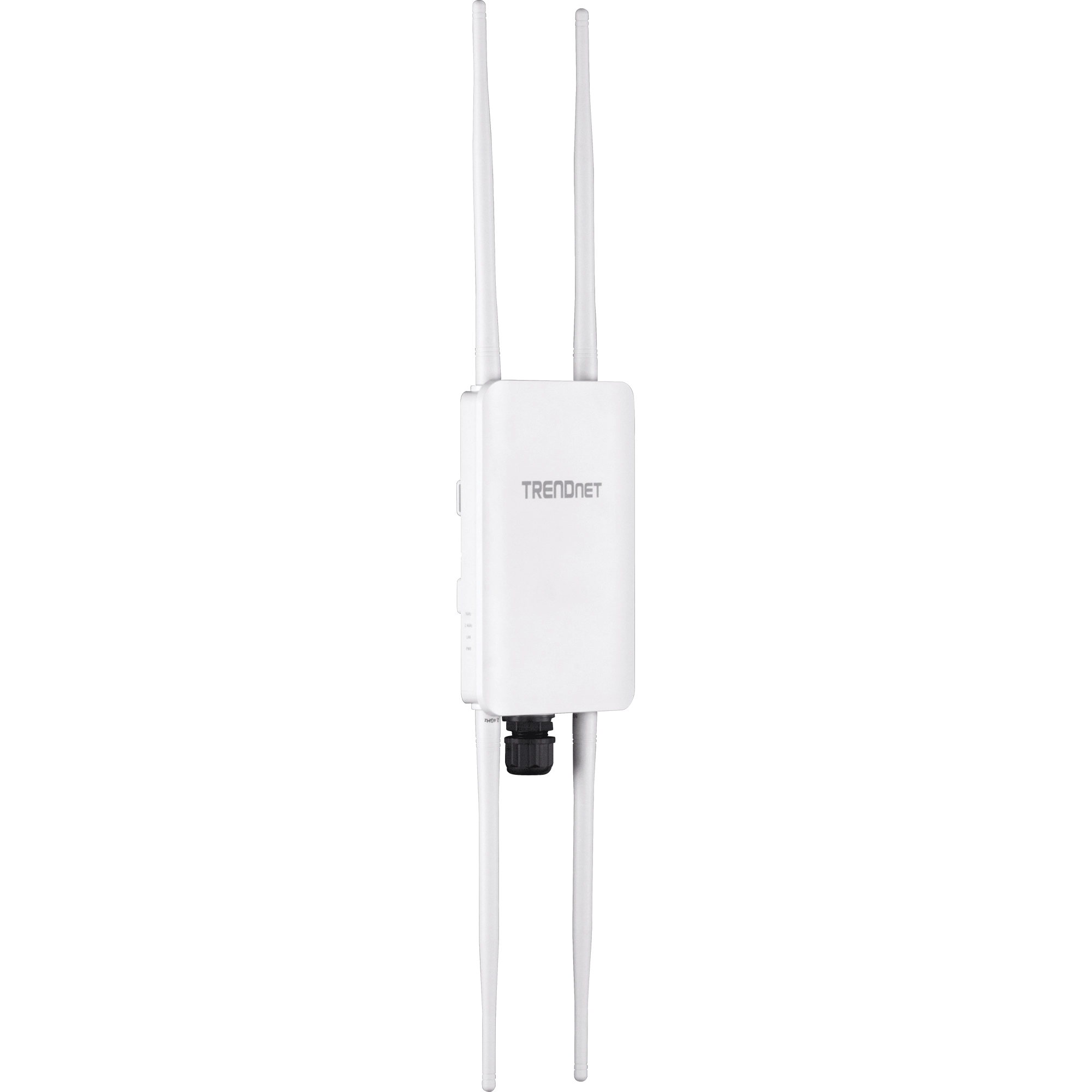

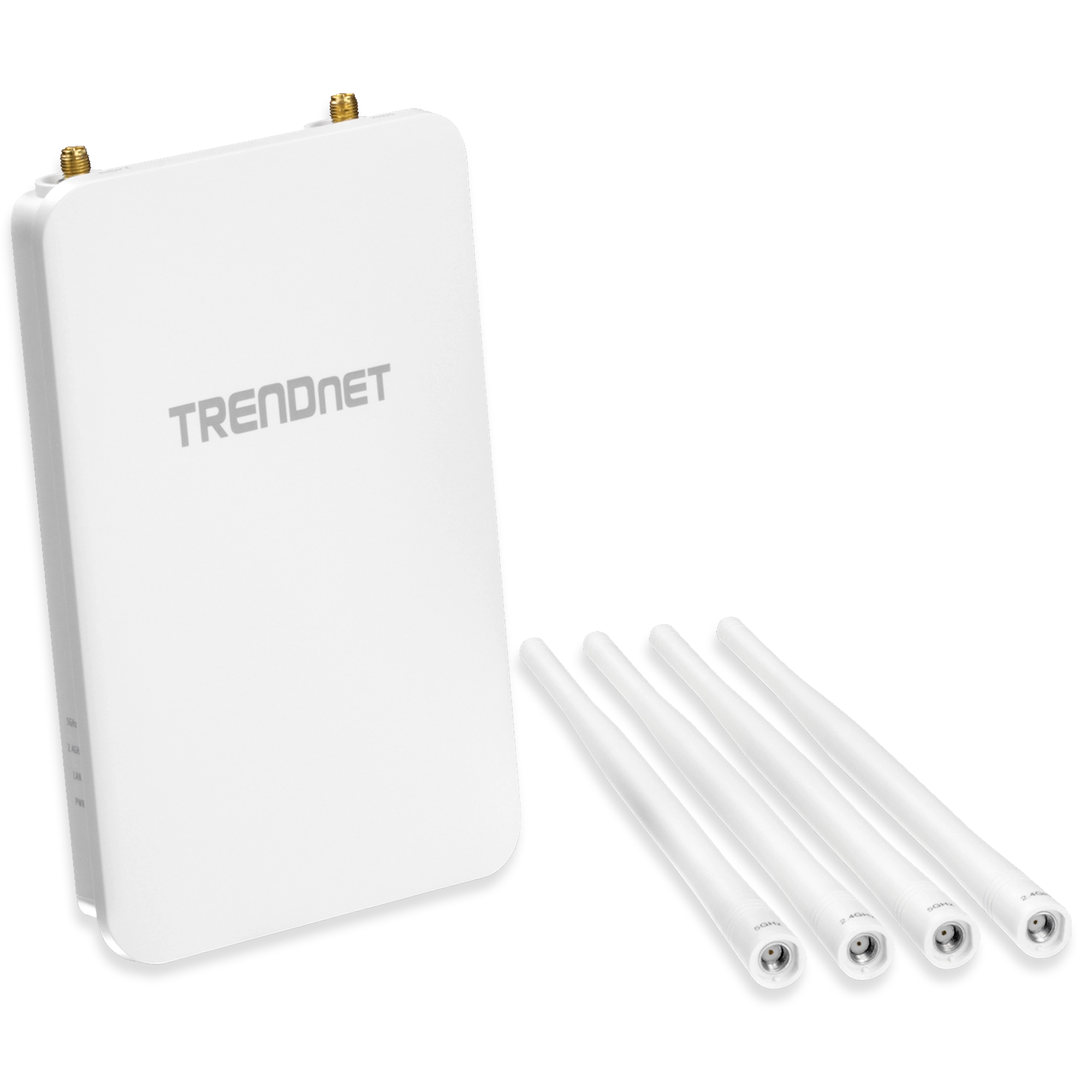

Trendnet - TEW-841APBO(CA) - 5dBi Wireless AC1200 Outdoor PoE+ Omni Directional Access Point
Part number:
Price:
- • Dual band Wireless AC1300 point-to-point and point-to-multi-point bridge
- • 4 x 5 dBi omni-directional antennas
- • Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes
- • Supports IEEE 802.3at PoE+
- • IP67 outdoor weather rated housing
- • NDAA / TAA compliant (U.S. and Canada only)
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3x • IEEE 802.3ab • IEEE 802.3az • IEEE 802.3at • IEEE 802.1Q • IEEE 802.11a • IEEE 802.11b • IEEE 802.11g • IEEE 802.11n (up to 400Mbps @ 256QAM) • IEEE 802.11ac Wave 2 (5GHz: up to 867Mbps @ 256QAM) |
| Hardware Interface | • 1 x PoE+ Gigabit LAN port (power input) • 4 x RP-SMA (female) antenna connectors • LED indicators |
| Features | • 802.11ac MU-MIMO Wave 2 support • IP67 rated housing • Concurrent dual band • Band steering • WiFi traffic shaping • 802.1Q VLAN assignment per SSID • IPv6 support (Link-Local, Static IPv6) • LEDs on/off • 802.11k intelligent radio resource management • RSSI Threshold (client signal strength and connectivity control) |
| Operation Modes | • Access Point • Client Bridge • WDS Access Point • WDS Bridge • WDS Station |
| Management/Monitoring | • Web based management • SNMP v1/v2c/v3 • STP • Event logging • Ping test • Traceroute • Nslookup • Telnet |
| Access Control | • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS • MAC filter • Maximum client limit |
| QoS | • WMM • Bandwidth control per SSID or client |
| SSID | Up to 8 SSIDs |
| Frequency | • 2.4GHz: 2.412 – 2.462GHz • 5GHz: 5.180 – 5.240GHz, 5.745 – 5.825GHz |
| Wireless Channels | • 2.4GHz: FCC: 1–11 • 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 |
| Modulation | • DBPSK/DQPSK/CCK for DSSS technique • BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique |
| MIMO Configuration | • 5GHz: 2x2:2 • 2.4GHz: 2x2:2 |
| Antenna Gain | • 2.4GHz: 2 x 5 dBi external • 5GHz: 2 x 5 dBi external |
| Wireless Output Power | • 802.11a: FCC/IC: 19 dBm (max.) • 802.11b: FCC/IC: 19 dBm (max.) • 802.11g: FCC/IC: 19 dBm (max.) • 802.11n (2.4GHz): FCC/IC: 19 dBm (max.) • 802.11n (5GHz): FCC/IC: 19 dBm (max.) • 802.11ac: FCC: FCC/IC: 19 dBm (max.) |
| Receiving Sensitivity | • 802.11a: -72 dBm (typical) @ 54 Mbps • 802.11b: -87 dBm (typical) @ 11 Mbps • 802.11g: -72 dBm (typical) @ 54 Mbps • 802.11n (2.4 GHz): -67 dBm (typical) @ 400 Mbps • 802.11n (5 GHz): -61 dBm (typical) @ 400 Mbps • 802.11ac: -58 dBm (typical) @ 867 Mbps |
| Power | • IEEE 802.3at Type 2 PoE PD Class 4 • Max. consumption: 12.6W |
| Operating Temperature | -22° – 60° C (-7.6° – 140° F) |
| Operating Humidity | Max. 90% non-condensing |
| Certifications | FCC, IC |
| Dimensions | 111 x 174 x 38mm (4.4 x 6.9 x 1.5 in.) |
| Weight | 302g (10.7 oz.) |
| Warranty | 3 year |

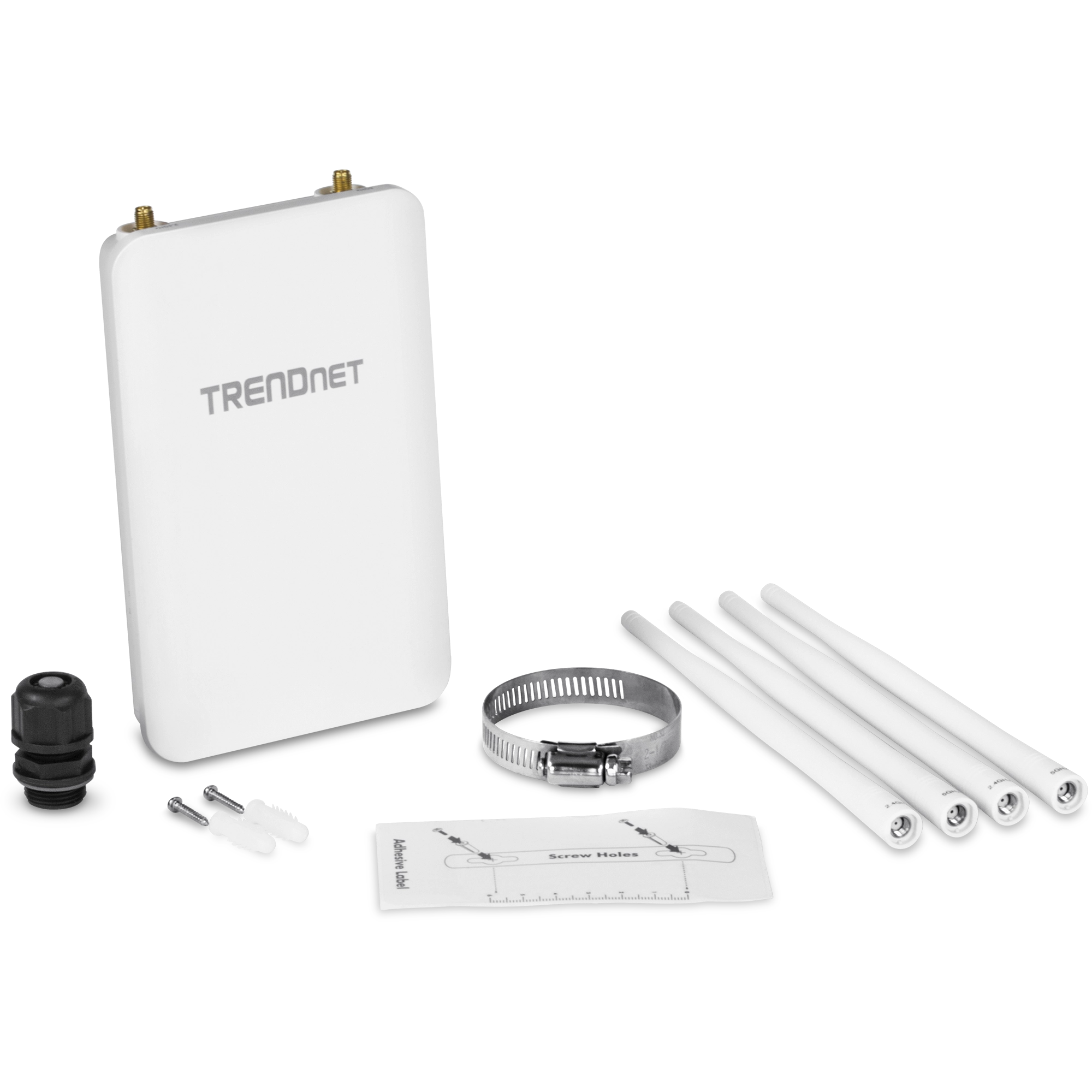

| Package Contents | • TEW-841APBO • 2 x Detachable 2.4GHz 5 dBi antennas • 2 x Detachable 5GHz 5 dBi antennas • IP67 weather rated cable gland • Mounting hardware • Quick Installation Guide |
Name
Description
Size
Downloads
File
TEW-841APBO(CA) - 5dBi Wireless AC1200 Outdoor PoE+ Omni Directional Access Point - Datasheet.pdf
0.9mb
File
TEW-841APBO(CA) - 5dBi Wireless AC1200 Outdoor PoE+ Omni Directional Access Point - UG.pdf
1.6mb
Designed for point-to-point and point-to-multi-point Wi-Fi bridging applications, TRENDnet's 5 dBi Wireless AC1300 Outdoor PoE+ Omni-Directional Access Point model TEW-841APBO is ideal for outdoor use. This multi-point wireless bridge can be powered by a PoE+ switch or PoE+ injector of your choice. Access Point, WDS Bridge, WDS Access Point, WDS Station and Client Bridge modes facilitate a variety of installation scenarios. The IP67-rated housing of the wireless multi-point bridge is designed for outdoor environments and includes wall and pole mounting hardware.
