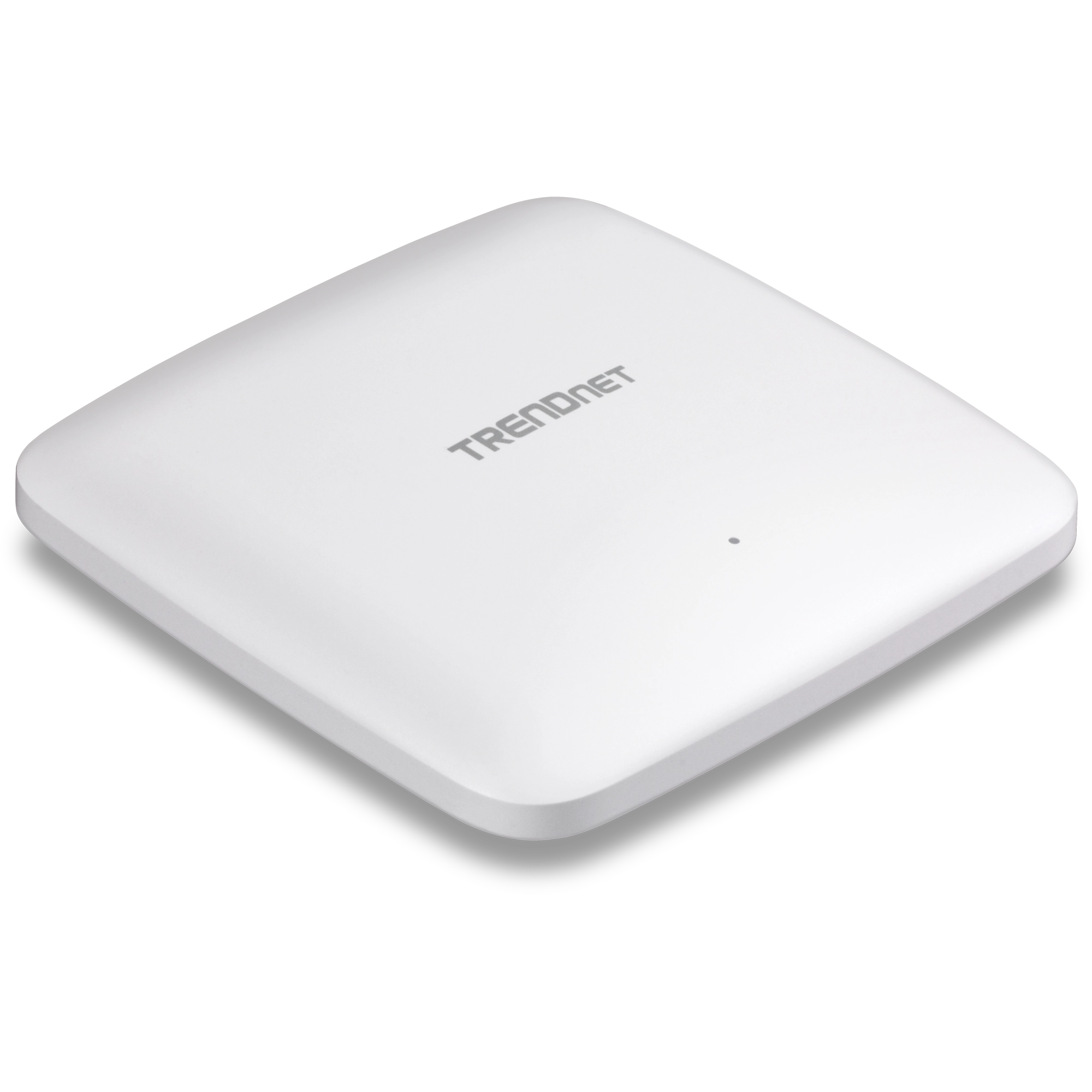

Trendnet - TEW-921DAP(CA) - AX1800 Dual Band PoE+Indoor Wireless Access Point
Part number:
Price:
- • High-performance AX1800 PoE+ WiFi 6 access point
- • OFDMA and MU-MIMO technology boosts performance in a busy environment
- • Two concurrent WiFi bands maximize device networking speeds
- • AX1800 Dual Band: 1201Mbps (5GHz) + 567Mbps (2.4GHz) bands
- • Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes
- • Supports up to WPA3 encryption
- • Optional cloud management with TRENDnet Hive (Additional fee applies)
- • 1 x Gigabit PoE+ LAN port
- • Captive portal for hotspot applications
- • Low-profile housing blends into most environments
- • Includes wall / ceiling mounting plate
- • NDAA / TAA compliant (U.S. and Canada only)
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3x • IEEE 802.3ab • IEEE 802.3at • IEEE 802.1Q • IEEE 802.11a • IEEE 802.11b • IEEE 802.11g • IEEE 802.11k • IEEE 802.11n (up to 400Mbps)* • IEEE 802.11r • IEEE 802.11v • IEEE 802.11w • IEEE 802.11ac Wave 2 (up to 867Mbps)* • IEEE 802.11ax (up to 1201Mbps)* |
| Hardware Interface | • 1 x PoE+ Gigabit LAN port (power input) • Power port (optional power adapter sold separately) • LED indicators • Mounting plate • Reset button |
| Features | • MU-MIMO • OFDMA • Band steering • WiFi traffic shaping • 802.1Q VLAN assignment per SSID • IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6)) • Multi-Language interface, English, French, Spanish, German, Russian • LEDs on/off • External Captive Portal (Coovachilli server authentication) • Internal Captive Portal (Local user account authentication and customizable portal page) • Redirect Captive Portal • 802.11k intelligent radio resource management • RSSI Threshold (client signal strength and connectivity control) • Airtime Fairness • IGMP Snooping |
| Operation Modes | • Access Point • Client Bridge • WDS AP • WDS Bridge • WDS Station • Repeater |
| Management/Monitoring | • Web based management • SNMP v1/v3 • STP • Event logging • Ping test • Traceroute • Telnet • Reboot & scheduled automatic reboot |
| Hive Cloud Management | • Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser, or through the mobile app • Multi-device management • Provisioning through scheduled batch firmware or configuration updates for multiple switches • Event/hardware network monitoring (CPU/memory utilization) • Configure features such as IP address settings, WiFi settings, operation modes, and LED control through cloud management |
| Access Control | • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS, WPA3-PSK • MAC filter • Maximum client limit |
| QoS | Bandwidth control per SSID or client |
| SSID | Up to 8 SSIDs per wireless band (16 total) |
| Frequency | • 2.4GHz: 2.412 – 2.472GHz • 5GHz: 5.180 – 5.320GHz |
| Wireless Channels | • 2.4GHz: FCC: 1–11, ETSI: 1 – 13 • 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140) ** |
| Modulation | • DBPSK/DQPSK/CCK for DSSS technique • BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM technique • OFDMA |
| MIMO Configuration | • 5GHz: 2x2:2 • 2.4GHz: 2x2:2 |
| Antenna Gain | • 2.4GHz: 2 x 3.2 dBi internal • 5Ghz: 2 x 4.3 dBi internal |
| Wireless Output Power | • 802.11a: FCC: 30 dBm (max.) / CE: 28 dBm (max.) • 802.11b: FCC: 29 dBm (max.) / CE: 18 dBm (max.) • 802.11g: FCC: 29 dBm (max.) / CE: 19 dBm (max.) • 802.11n (2.4GHz): FCC: 29 dBm (max.) / CE: 19 dBm (max.) • 802.11n (5GHz): FCC: 30 dBm (max.) / CE: 28 dBm (max.) • 802.11ac: FCC: 30 dBm (max.) / CE: 28 dBm (max.) • 802.11ax (2.4GHz): FCC: 29 dBm / CE: 19 dBm • 802.11ax (5GHz): FCC: 30 dBm / CE: 28 dBm |
| Receiving Sensitivity | • 802.11a: -75 dBm (typical) @ 54Mbps • 802.11b: -90 dBm (typical) @ 11Mbps • 802.11g: -77 dBm (typical) @ 54Mbps • 802.11n (2.4 GHz): -77 dBm (typical) @ 400Mbps • 802.11n (5 GHz): -71 dBm (typical) @ 400Mbps • 802.11ac: -71 dBm (typical) @ 867 Mbps • 802.11ax (2.4GHz): -65 dBm (typical) @ 574Mbps • 802.11ax (5GHz): -63 dBm (typical) @ 1201Mbps |
| Power | • IEEE 802.3at Type 2 PoE PD Class 4 Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1.5A external power adapter (optional power adapter sold separately) • Max. consumption: 15W |
| Operating Temperature | 0° – 40° C (32° – 104° F) |
| Operating Humidity | Max. 95% non-condensing |
| Certifications | CE, FCC |
| Dimensions | 160 x 160 x 34mm (6.3 x 6.3 x 1.34 in.) |
| Weight | 486g (1.07 lbs.) |
| Warranty | 3 year |
| Package Contents | • TEW-921DAP • Network cable (1.5m/5 ft.) • Quick Installation Guide • Mounting plate |
Name
Description
Size
Downloads
File
TEW-921DAP(CA) - AX1800 Dual Band PoE+Indoor Wireless Access Point - Datasheet.pdf
0.8mb
File
TEW-921DAP(CA) - AX1800 Dual Band PoE+Indoor Wireless Access Point - UG.pdf
1.3mb
TRENDnet’s high-performance AX1800 Dual Band Wi-Fi 6 PoE+ Access Point (model TEW-921DAP) features two concurrent Wi-Fi bands that maximise device networking speeds using the latest Wi-Fi 6 technology. These two separate, high-speed WiFi 6 bands provide speeds of up to 1201 Mbps on the 5 GHz band and 567 Mbps on the 2.4 GHz band. This WiFi 6 access point offers even faster speeds thanks to 1024-QAM, OFDMA, and MU-MIMO technologies.
This Wi-Fi 6 access point supports innovative networking technology that improves coverage, speed and capacity. Increasing the QAM to 1024-QAM enables data to flow through a much wider 'pipe' than with previous Wi-Fi technologies. OFDMA (Orthogonal Frequency-Division Multiple Access) increases the number of clients that can connect to this WiFi 6 access point. OFDMA efficiently manages traffic in congested areas by splitting the channel frequencies into subcarriers. MU-MIMO technology processes multiple data streams simultaneously, thereby enhancing the WiFi 6 AP's real-time performance when multiple devices access the network.
