Trendnet - TEW-929DRU(CA) - AX1800 Dual-Band WiFi 6 Gigabit Dual-WAN VPN SMB Router
Part number:
Price:
- • Dual-WAN ports support load-balancing and fail-over modes
- • 1x 2.5G LAN port, 2 x Gigabit LAN ports, 1 x RJ-45 console port, 1 x USB 2.0 share port
- • SSL, IPsec, PPTP, and L2TP w/IPsec VPN support
- • IEEE 802.1Q inter-VLAN routing
- • Two concurrent WiFi bands maximize device networking speeds
- • Dual Band support: 1201Mbps (5GHz) / 574Mbps (2.4GHz)
- • Pre-encrypted WiFi for your convenience
- • Wireless client isolation
- • Web browser and CLI management
- • Online firmware notification and upgrade
- • QoS for VoIP and media streaming applications
- • Deep Packet Inspection traffic monitoring
- • Advanced web content filtering service powered by Bark®
- • Remote cloud management with TRENDnet Hive (Additional fee applies)
- • NDAA / TAA compliant (U.S. and Canada only)
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3x • IEEE 802.3ab • IEEE 802.3bz (2.5GBASE-T) • IEEE 802.1Q • IEEE 802.1X • IEEE 802.11a • IEEE 802.11b • IEEE 802.11g • IEEE 802.11n (up to 400Mbps @ 256QAM)* • IEEE 802.11ac (up to 867Mbps @ 256QAM)* • IEEE 802.11ax Wi-Fi 6 (5GHz: up to 1201Mbps, 2.4GHz: up to 574Mbps @ 1024QAM) |

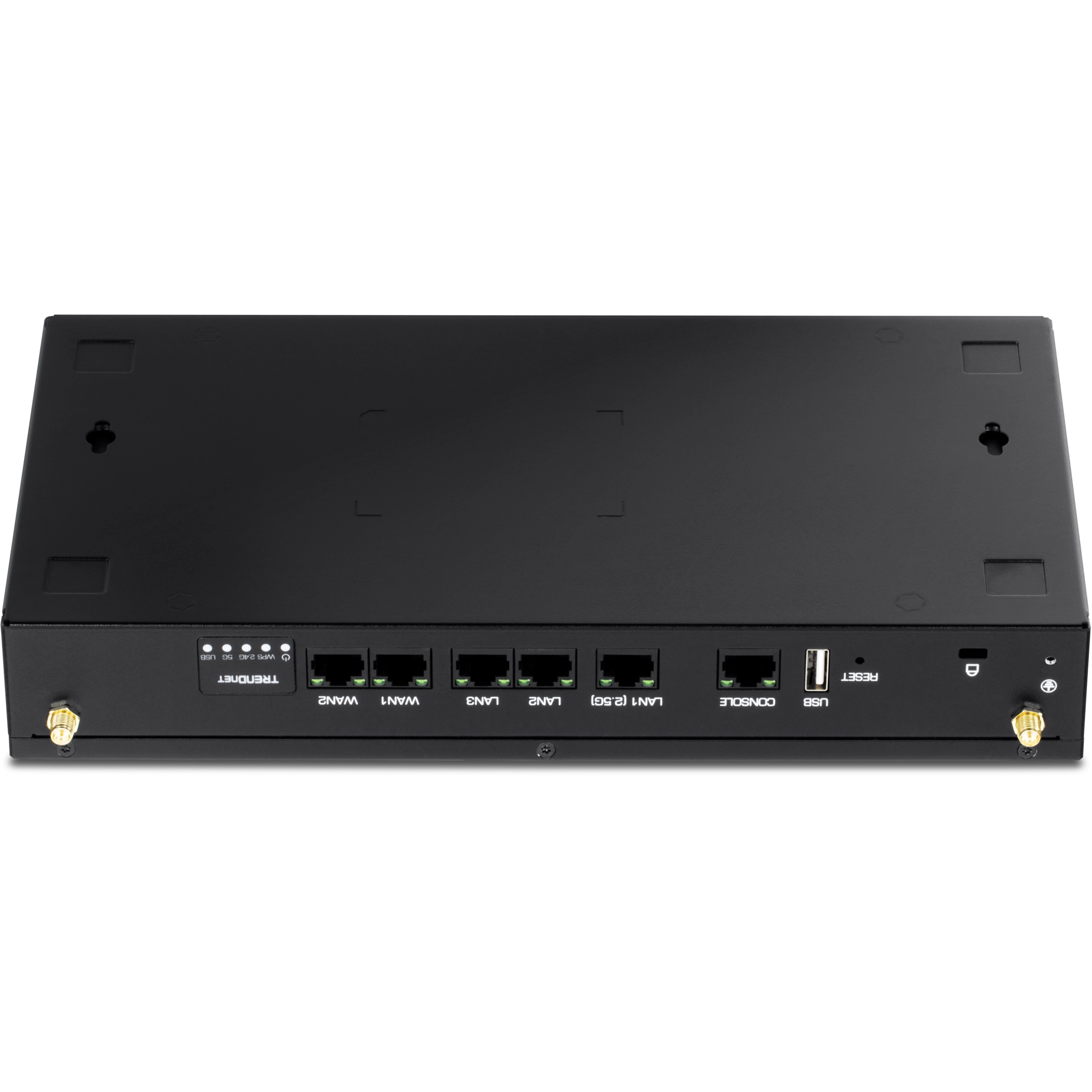

| Device Interface | • 1 x 2.5GbE LAN port (LAN1) • 2 x Gigabit LAN ports (LAN2-LAN3) • 2 x Gigabit WAN ports (WAN failover / load balancing) • 1 x USB 2.0 (USB Storage Device Sharing) • 1 x RJ-45 console port • Security slot • Grounding screw • Power switch • Reset button • LED indicators |
| Performance | • NAT (LAN-to-WAN) throughput: 900Mbps • Routing performance: 900Mbps • Maximum concurrent sessions: 32,768 • Maximum number of VLANs: 8 (ID: 1-4094) • IPsec VPN (AES-256/SHA-256/LAN-to-LAN) throughput: 64Mbps • SSL VPN (OpenVPN®) Throughput (Blowfish/SHA-1/Bridge): 12Mbps |
| Virtual Private Networking | • SSL VPN Server Mode (OpenVPN®) (Up to 10 tunnels) • SSL VPN Client Mode (OpenVPN®) • SSL (OpenVPN®) Encryption: BF-CBC, AES-128-CBC, AES-256-CBC • SSL (OpenVPN®) HMAC Authentication: SHA1, SHA256 • SSL VPN Certificate: RSA • IPsec VPN Server (Dynamic) / Site-to-Site (Up to 15 tunnels) • IPsec Encryption: DES, 3DES, AES-128/256 • IPsec Authentication: MD5, SHA1, SHA2-256, Certificate: X.509v3 • IPsec Key Exchange: IKE: IKEv1/2, Main Mode, RSA, Pre-shared Key, DH Groups 1/2/5/14 • IPsec Protocols: ESP (Transport/Tunnel), PFS (Per DH Groups 1/2/5/14, DPD (Dead Peer Detection), Local/Remote ID: IP Address, FQDN (Fully Qualified Domain Name) • IPsec NAT Traversal • IPsec VPN failover support • PPTP/L2TP VPN Server (Up to 10 tunnels) • L2TP with IPsec VPN Server (Up to 8 tunnels shared with L2TP) • PPTP/L2TP Encryption: MPPE 40-bit, 128-bit, IPsec • PPTP/L2TP Authentication: MS-CHAPv1/2 |
| Networking | • WAN Modes: NAT, Classical Routing • NAT Modes: NAT, PAT (Port Address Translation), One-to-One NAT • WiFi client bridge mode • ISP IPv4 WAN Modes: DHCP, Static IP, PPPoE, PPTP, L2TP • IPv4 WAN client ID and vendor class for DHCP, override/clone MAC address • ISP IPv6 WAN Modes: Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE • IPv6 LAN Modes: SLAAC, Stateless/Stateful DHCPv6 • VLAN ID assignment on WAN interface • Routing: Static, RIPv1/v2, OSPFv1/2, routing policies (Up to 20 entries) • Static ARP entries (Up to 32 entries) • Static host entries (Up to 32 entries) • Inter-VLAN Routing (Up to 8 VLANs, 8 IP interfaces) • SSID per VLAN assignment • DHCP Server/Relay • DHCP static leases/reservation • Dynamic DNS: dynu.com, freedns.afraid.org, changeip.com, ydns.io, duckdns.org, no-ip.com • WAN Failover • WAN Load Balancing |
| Access Control | • Wireless encryption: WPA2/WPA3-Personal (PSK), WPA2/WPA3-Enterprise (EAP) • Wireless captive portal (external RADIUS authentication, internal user authentication, redirect URL) • NAT, virtual server/port forwarding, port triggering, firewall traffic rules, DMZ host, UPnP/NAT-PMP, allow/deny ping on WAN interfaces • ALG: PPTP/L2TP/IPsec VPN passthrough, PPPoE Relay, FTP/TFTP/SNMP/SIP/RTSP/IRC/H.323 passthrough • MAC & IP filtering • Advanced Traffic/Firewall rules configuration • Custom scheduling for access control rules • Wireless guest network • WPS (WiFi Protected Setup™) Virtual PBC (Push Button), PIN • Wireless client isolation • DoS prevention (TCP/UDP/ICMP Flood Prevention) • Advanced web content filtering service powered by Bark® • RADIUS Server |
| Quality of Service | • User defined classification rules with 4 priority queues • WMM (Wireless Multimedia Extensions) |
| Management/Monitoring | • CLI (Console/Telnet/SSH) command line management • HTTP/HTTPS web based management • Security certificates: Create, Import/Export • Scheduled automatic reboot • Scheduled Wake-on-LAN (WoL) for remote WoL device • View ARP and routing table entries • View CPU load, traffic/wireless usage, NAT sessions, and Internet bandwidth usage • Internet speed test • Internal system logging • Manual or online firmware upgrade and notification • Backup and restore configuration • Internal logging • Ping watchdog • DPI (nDPI deep packet inspection) monitoring • Ping, traceroute, ns-lookup, Internet speed test, and multi-WAN diagnostic tools |
| Hive Cloud Management** | • Configure, monitor, and manage through the TRENDnet Hive Cloud Management • Portal remotely via PC or Mac web browser • Multi-device management • Provisioning through scheduled batch firmware or configuration updates for multiple switches • Event/hardware network monitoring (CPU/memory utilization) • Configure features such as interface IP address settings, VLANs, WiFi, VPN, WAN failover and load balancing, DMZ, port forward, and firewall access control settings through cloud management |
| Frequency | • 2.412 – 2.462GHz • 5.180 – 5.250GHz, 5.745 – 5.825GHz |
| Modulation | • 802.11b: CCK, DQPSK, DBPSK • 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM • 802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM • 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM • 802.11ax: BPSK, QPSK, and 16/64/256/1024-QAM |
| Media Access Protocol | CSMA/CA with ACK |
| MIMO Configuration | 5GHz: 2x2:2 2.4GHz: 2x2:2 |
| Antenna Gain | 2 x dual band detachable/external antennas (2.4GHz: 3.2 dBi (max.) / 5GHz: 5.5 dBi) |
| Wireless Output Power (max output power without antenna gain) | • 802.11b/g/n/ac/ax (2.4GHz): FCC: 24 dBm (max.) / IC: 24 dBm (max.) • 802.11a/n/ac/ax (5GHz): FCC: 23 dBm (max.) / IC: 23 dBm (max.) |
| Receiving Sensitivity (per chain) | • 802.11a: -70 dBm (typical) @ 54Mbps • 802.11b: -80 dBm (typical) @ 11Mbps • 802.11g: -69 dBm (typical) @ 54Mbps • 802.11n (2.4GHz): -59 dBm (typical) @ 300Mbps • 802.11n (5GHz): -56 dBm (typical) @ 300Mbps • 802.11ac: -56 dBm (typical) @ 866Mbps • 802.11ax (2.4GHz): -50 dBm (typical) @ 574Mbps • 802.11ax (5GHz): -51 dBm (typical) @ 1201Mbps |
| Wireless Channels | • 2.4GHz: FCC: 1–11 • 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 |
| Power | • Input: 100 – 240 V AC, 50 – 60 Hz, 0.9A • Output: 12V DC, 2A external power adapter • Max. Consumption: 17.4W |
| Operating Temperature | 0° – 40° C (32° – 104° F) |
| Operating Humidity | Max. 90% non-condensing |
| Certifications | FCC, IC |
| Dimensions | • 280 x 160 x 44.45mm (11 x 6.3 x 1.75 in.) • Rack mountable 1U height |
| Weight | 1.215kg (2.68 lbs.) |
| Warranty | 3 year |
| Package Contents | • TEW-929DRU • Quick Installation Guide • 2 x detachable high gain antennas • Network cable (1.5m / 5 ft.) • RJ-45 to RS-232 console cable (1.5m / 5 ft.) • Power adapter (12V DC, 2A) • Rackmount kit |
Name
Description
Size
Downloads
File
TEW-929DRU(CA) - AX1800 Dual-Band WiFi 6 Gigabit Dual-WAN VPN SMB Router - Datasheet.pdf
0.4mb
The TRENDnet AX1800 Dual-Band Wireless Gigabit Dual-WAN VPN SMB Router model TEW-929DRU features two concurrent Wi-Fi bands to maximise device networking speeds, offering two separate high-performance 802.11ax networks (5 GHz: 1201 Mbps / 2.4 GHz: 574 Mbps). The router also features dual-WAN ports for load balancing or failover modes and encrypted virtual private network (VPN) access for remote users. The dual-WAN ports balance network loading, minimise network downtime and enable employees to access your network from the internet — all with a single router. This Wi-Fi 6 router comes equipped with a 2.5GBASE-T RJ-45 LAN port that provides gigabit speeds of up to 2.5 Gbps over your existing Cat5e or better cabling. This provides faster throughput to your 2.5G compatible devices, such as network-attached storage and high-speed WiFi 6 access points.
