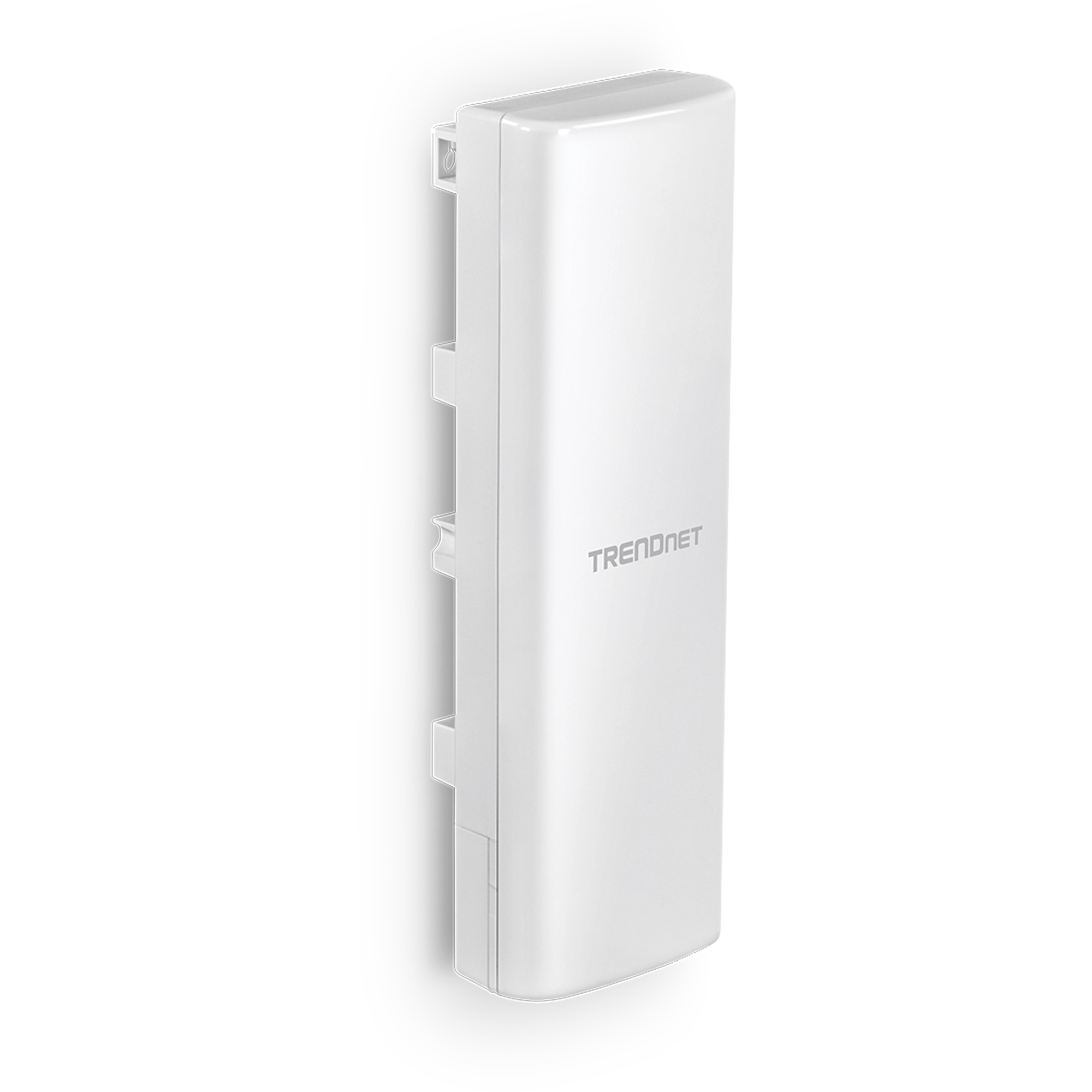

Trendnet - TEW-940APBO(CA) - 14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-Point
Part number:
Price:
- • 5GHz WiFi 6 AX1200 point-to-point bridge
- • 1 x Gigabit PoE (in) port, and 1 x Gigabit port
- • 14 dBi directional antenna
- • Supports Access Point, Client Bridge, and Repeater modes
- • IP55 outdoor weather rated housing
- • Proprietary PoE power adapter included
- • Remote cloud management with TRENDnet Hive™ (Additional fee applies)
- • NDAA / TAA compliant (U.S. and Canada only)
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3ab • IEEE 802.1d • IEEE 802.1Q • IEEE 802.1X • IEEE 802.11a • IEEE 802.11k • IEEE 802.11n (5GHz: up to 300Mbps)* • IEEE 802.11ac (5GHz: up to 867Mbps)* • IEEE 802.11ax (5GHz: up to 1201Mbps)* |

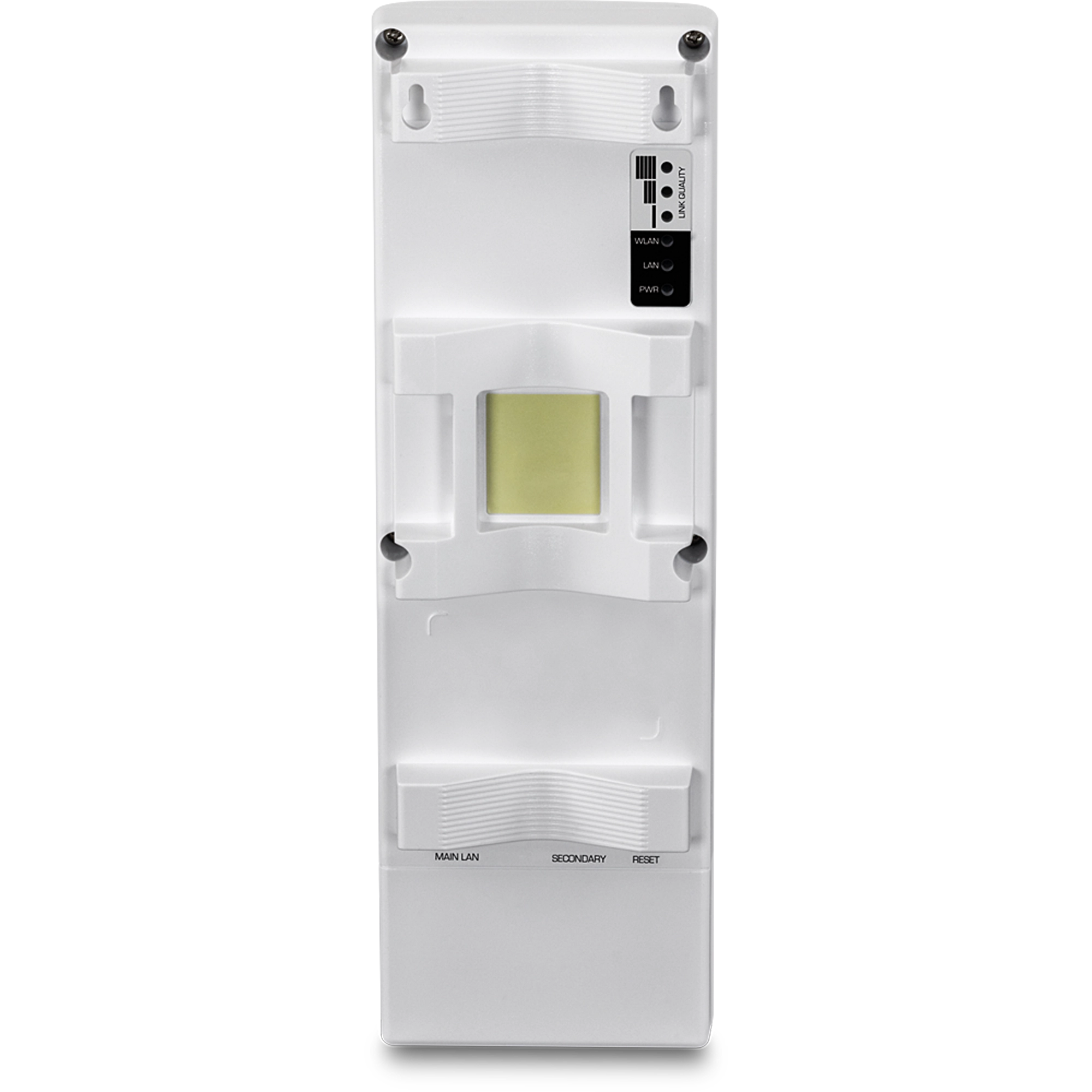

| Hardware Interface | • 1 x Gigabit PoE-in LAN port (proprietary PoE max. cable length 60m (197 ft.)) • 1 x Gigabit LAN port • LED indicators • Reset button |
| Features | • 802.11ax WiFi 6 support • IP55 rated housing • MU-MIMO • Band steering • Airtime fairness • 802.1Q VLAN assignment per SSID • IPv6 support • LEDs on/off • 802.11k intelligent radio resource management • RSSI Threshold (client signal strength and connectivity control) • LLDP • Bonjour/UPnP |
| Operation Modes | • Access Point • Client Bridge • Repeater |
| Management/Monitoring | • Web based management (HTTP/HTTPS) • Command Line Interface (SSH) • SNMP v2c/v3 • Spanning Tree Protocol (STP) • Event logging • Ping test • Traceroute • Performance throughput test • Schedule WiFi radio enable/disable • Ping watchdog/gateway connection monitor • Reboot & scheduled automatic reboot • Channel utilization scan/AP detection |
| Hive Cloud Management*** | • Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser • Multi-device management • Provisioning through scheduled batch or configuration updates for multiple switches • Event/hardware network monitoring (CPU/memory utilization) • Configure features such as IP address settings, WiFi settings, operation modes, and LED control through cloud manage-ment |
| Access Control | • Wireless encryption: OWE (Opportunistic Wireless Encryption), WPA/WPA2/WPA3-RADIUS (Enterprise), WPA-PSK/WPA2-PSK/WPA3-SAE (Personal) • MAC filter (max entries: 32) • Maximum client limit • Client isolation/separate stations |
| QoS | • WMM • Bandwidth control per SSID |
| SSID | Up to 8 SSIDs |
| Frequency | 5.150GHz – 5.250GHz, 5.725GHz – 5.850GHz |
| Wireless Channels | 5 GHz: 36, 40, 44, 48, 149, 153, 157, 161, 165 |
| Modulation | BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA |
| MIMO Configuration | • 5GHz: 2x2:2 • 2.4GHz: N/A |
| Antenna Gain | 14 dBi internal directional patch antenna |
| Distance | Up to 1km** |
| Wireless Output Power | • 802.11a: 23 dBm (max.) • 802.11n: 22 dBm (max.) • 802.11ac: 22 dBm (max.) • 802.11ax: 22 dBm (max.) |
| Receiving Sensitivity (per chain) | • 802.11a: -71 dBm (typical) @ 54Mbps • 802.11n: -66 dBm (typical) @ 300Mbps • 802.11ac: -55 dBm (typical) @ 867Mbps • 802.11ax: -54 dBm (typical) @ 1201Mbps |
| Power | • Input: 100 – 240V AC, 50/60Hz, 0.8A • Output: 54V DC, 0.6A proprietary/passive PoE injector • Max. Consumption: 10.1W |
| Operating Temperature | -20° – 60° C (-4° – 140° F) |
| Operating Humidity | Max. 90% non-condensing |
| Certifications | FCC |
| Dimensions | 82 x 257 x 50mm (7.3 x 3.9 x 1.4 in.) |
| Weight | 598g (21.09 oz.) |
| Warranty | 3 year |

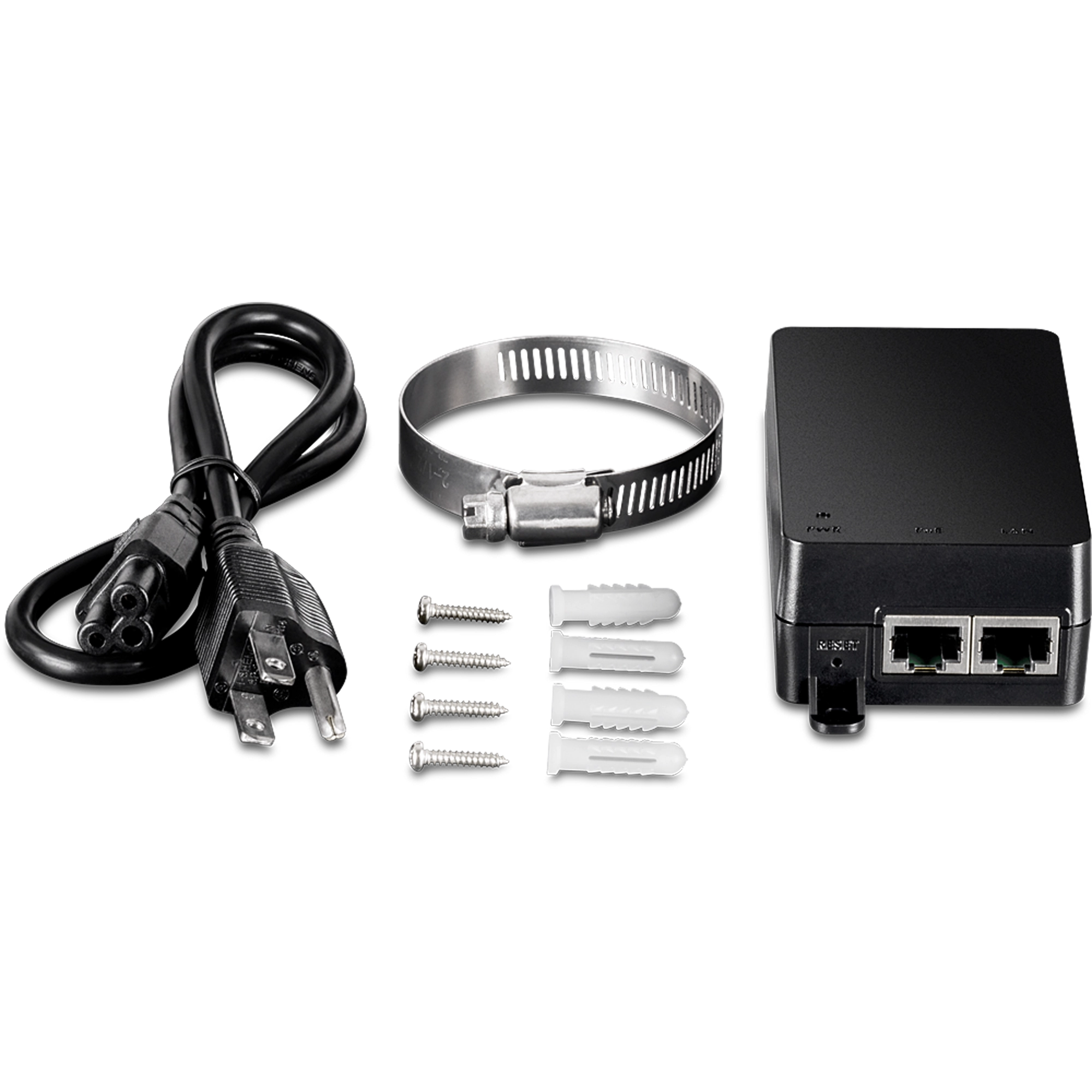

| Package Contents | • TEW-940APBO • Quick Installation Guide • Proprietary/Passive PoE injector (54V DC, 0.6A) • Mounting hardware |
Name
Description
Size
Downloads
File
TEW-940APBO(CA) - 14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-Point - Datasheet.pdf
1.3mb
File
TEW-940APBO(CA) - 14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-Point - UG.pdf
1.6mb
Designed for point-to-point Wi-Fi bridging applications, TRENDnet’s 14 dBi Wi-Fi 6 AX1200 Outdoor Directional PoE Access Point model TEW-940APBO is ideal for outdoor use. This 5 GHz outdoor wireless access point supports point-to-point wireless installation scenarios in Access Point, Client Bridge and Repeater modes. Its IP55-rated housing is designed for outdoor environments and includes wall and pole mounting hardware. This WiFi 6 access point offers faster speeds with OFDMA and MU-MIMO technologies. MU-MIMO technology processes multiple data streams simultaneously, thereby enhancing the outdoor wireless access point's real-time Wi-Fi performance when multiple devices access the network.
