Trendnet - TFC-G21SFP - 1000BASE-T to Dual SFP Fiber Media Converter with Redundant Mode
Part number:
Price:
- • 1 x Gigabit RJ-45 port
- • 2 x Gigabit SFP ports
- • Redundant SFP uplink
- • SFP ports accommodate multimode or single-mode modules
- • Auto-MDIX RJ-45 port supports full-duplex mode
- • Functions as a standalone converter
- • NDAA / TAA compliant (U.S. and Canada only)
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3z • IEEE 802.3ab • IEEE 802.3az |
| Device Interface | • 1 x Gigabit RJ-45 port (10/100/1000Mbps) • 2 x Gigabit SFP ports (100/1000Mbps) • LED indicators |
| Data Transfer Rate | • Ethernet: 10Mbps (half duplex) 20Mbps (full duplex) • Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex) • Gigabit: 2Gbps (full duplex) • 100Mbps SFP: 200Mbps (full duplex) • Gigabit SFP: 2Gbps (full duplex) |
| Performance | Jumbo Frames: 9KB |
| Special Feature | Redundant mode for SFP connection |
| Power | • Input: 100 – 240V AC, 50/60 Hz • Output: 5V DC, 1.5A • Max. Consumption: 3.3W |
| Fan/Acoustics | Fanless design |
| MTBF | 780,000 hours @ 25° C |
| Operating Temperature | 0° – 50° C (32° – 122° F) |
| Operating Humidity | Max. 90% non-condensing |
| Dimensions (L x W x H) | 101 x 75 x 22.6mm (3.97 x 2.95 x 0.89 in.) |
| Weight | 202g (0.45lbs) |
| Certifications | CE, FCC, LVD |
| Warranty | 3-year |

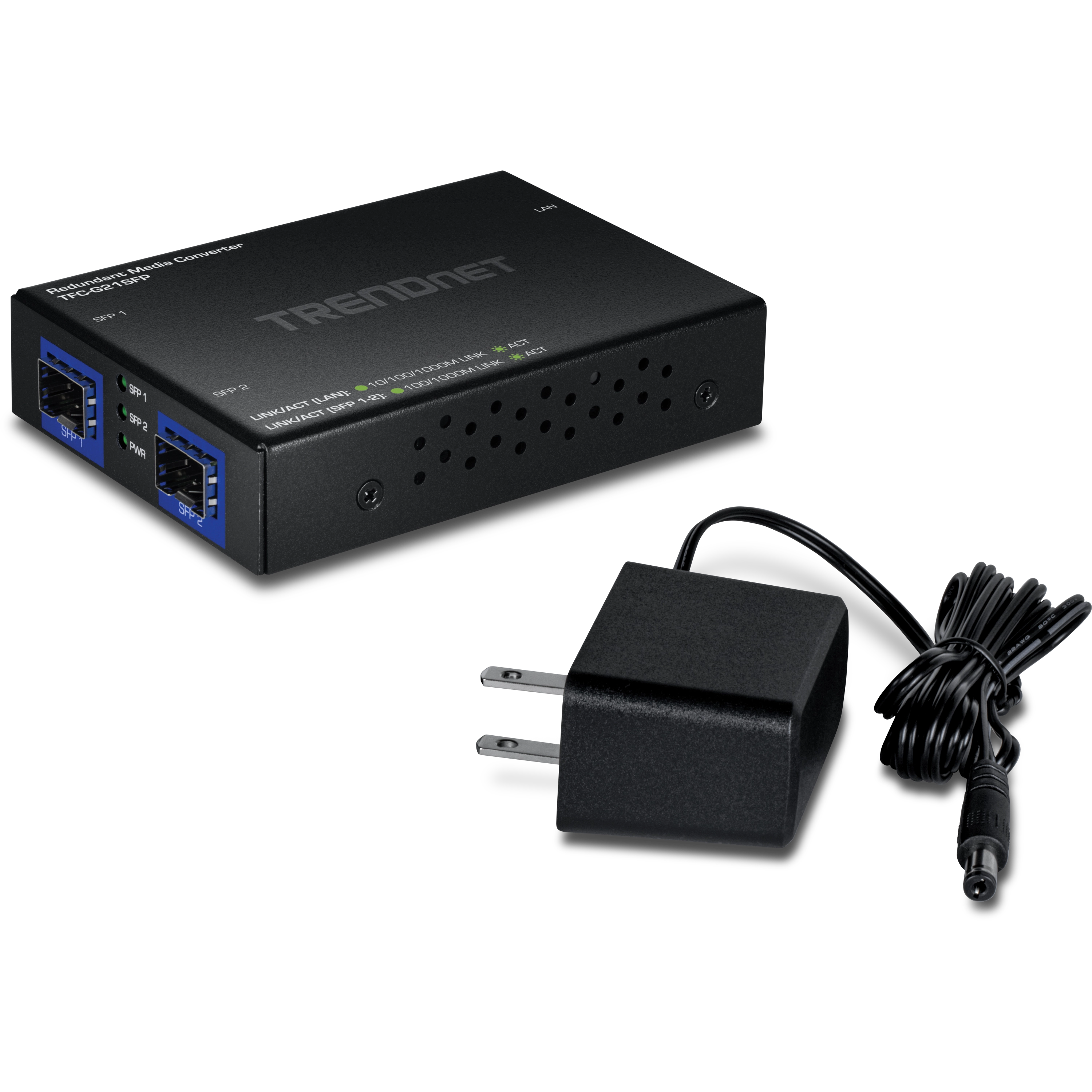

| PACKAGE CONTENTS | • TFC-G21SFP • Power adapter (5V DC, 1.5A) |
Name
Description
Size
Downloads
File
TFC-G21SFP - 1000BASE-T to Dual SFP Fiber Media Converter - Datasheet.pdf
0.3mb
TRENDnet’s compact 1000BASE-T to Dual SFP Fibre Media Converter with Redundant Mode TFC-G21SFP converts a 1000BASE-T (copper, 1 Gbps) Ethernet connection to two 1 G BASE-SX/LX (fibre) SFP media connections, and vice versa. The 1000BASE-T RJ-45 port on the SFP transceiver supports full-duplex 1 Gbps connections at wire speed. The dual SFP ports allow for uplink redundancy in the event of a failure on one of the SFP ports. The SFP ports support both multimode (SX) and single-mode (LX) SFP modules.
