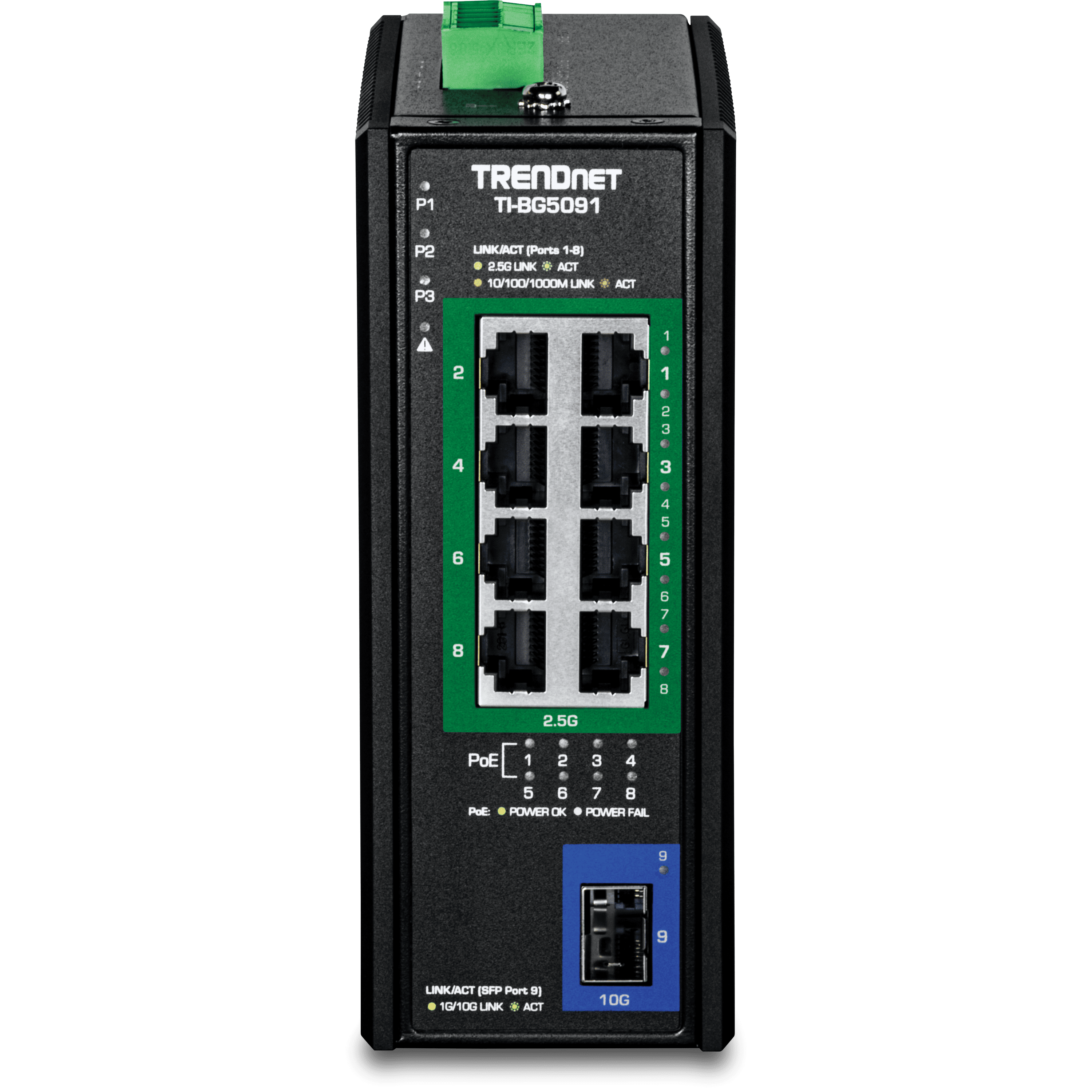

TrendNet - TI-BG5091 - 9-Port Industrial 2.5G DIN-Rail PoE++ Switch with 10G SFP+ Port
- • 8 x 2.5G PoE++ ports
- • 1 x 10G SFP+ port
- • 480W PoE power budget
- • 60Gbps switching capacity
- • Hardened IP50 rated metal switch
- • Fast PoE minimizes wait time for powering up PoE devices

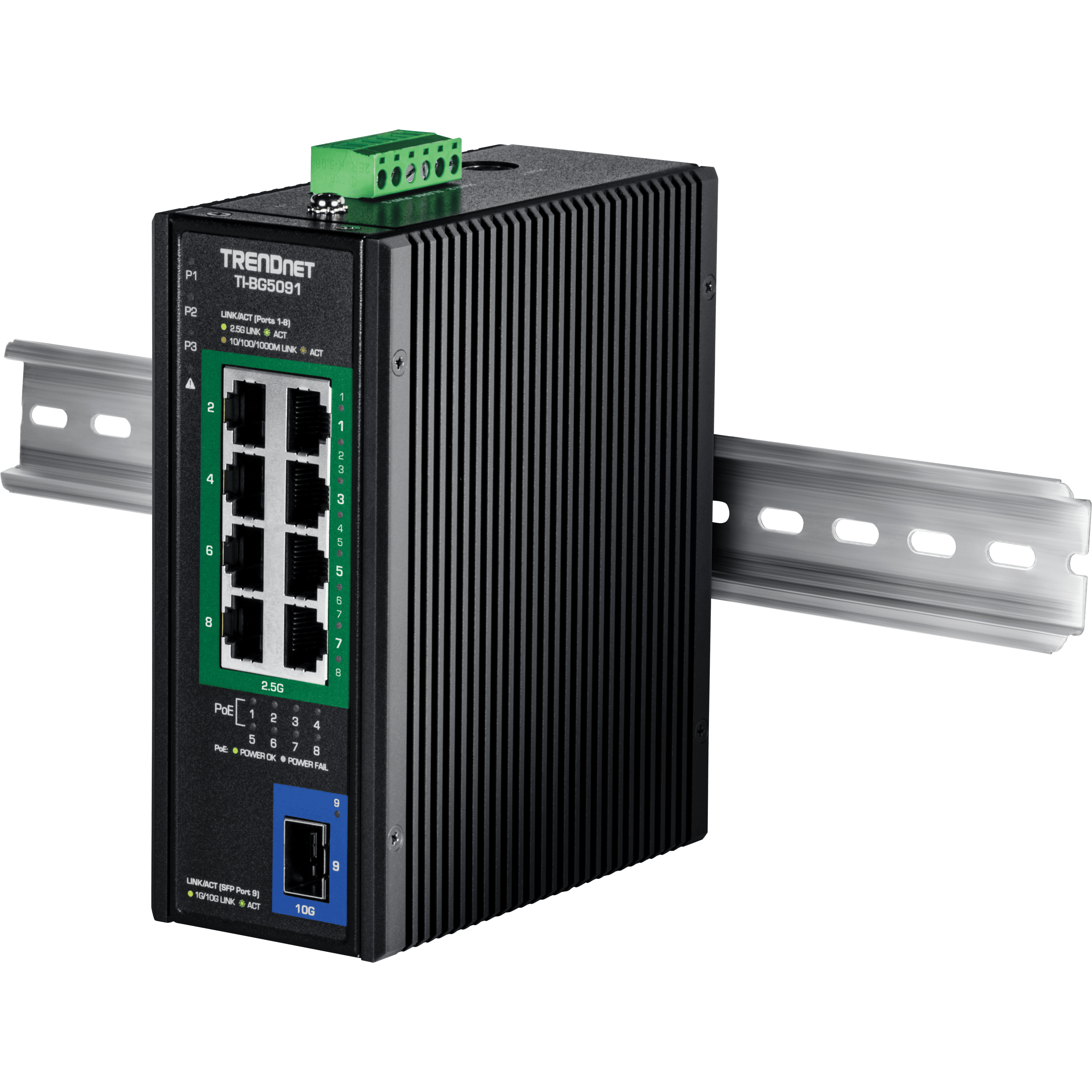

- • Includes DIN-Rail and wall mounts
- • Extreme operating temperature range of -40° – 75° C (-40° – 167° F)
- • Multiple power inputs for redundancy
- • Alarm output triggered by power failure
- • Power supply sold separately (TI-S48048, TI-S24052, 48VDC3000)
- • Lifetime Warranty*
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3z • IEEE 802.3x • IEEE 802.3ae • IEEE 802.3af • IEEE 802.3an • IEEE 802.3at • IEEE 802.3bt • IEEE 802.3bz |
| Device Interface | • 8 x 2.5G PoE++ ports (10Mbps/100Mbps/1Gbps/2.5Gbps) • 1 x 10G SFP+ port (1Gbps/10Gbps) • 6-pin removable terminal block • LED indicators • DIN-Rail mount • Wall mount • Grounding point |
| Data Transfer Rate | • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) • Gigabit: 2Gbps (full duplex) • 2.5 Gigabit: 5Gbps (full duplex) • 1G Fiber: 2Gbps (full duplex) • 10G Fiber: 20Gbps (full duplex) |
| Performance | • Data RAM Buffer: 1MB • Switching Fabric: 60Gbps • MAC Address Table: 4K entries • Jumbo Frame: 12KB • Forwarding rate: 44.64Mpps (64-byte packet size) |
| Special Features | • Hardened components rated for extreme temperatures • Fast PoE • Multiple power inputs • Auto-Negotiation • Auto store and forward architecture • Automatic address learning and address aging • ESD 6kV protection |
| DC Power | • Input: 48 - 57V DC • Compatible power supply: TI-S24052, TI-S48048 (sold separately) • Max. consumption: 10.08W (no PD) |
| AC Power | • Input 100 – 240V AC, 50/60Hz, 2A • Compatible power adapter: 48VDC3000 (sold separately) • Output: 48V DC, 3.34A 160W max. |
| PoE | • PoE: up to 15.4W per port • PoE+: up to 30W per port • PoE++: up to 95W per port • Power budget: 480W |
| Terminal Block | • 6-pin terminal block • Alarm relay contact • Wire range: 0.34mm² to 2.5mm² • Solid wire (AWG): 12-24/14-22 • Stranded wire (AWG): 12-24/14-22 • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm • Wire strip length: 7-8mm |
| Alarm Relay Contact | • Relay outputs with current carrying capacity of 1A, 24V DC • Short circuit mode when two power sources are connected • Open circuit mode when only one power source is connected |
| MTBF | • 83,000 hours @ 75°C |
| Housing | • IP50 metal case • DIN-Rail mount • Wall mount • Grounding point • 6kV ESD protection |
| Operating Temperature | • - 40° – 75° C (-40 – 167° F) |
| Operating Humidity | • Max. 95% non-condensing |
| Dimensions | • 156 x 122 x 48mm (6.1 x 4.8 x 1.9 in.) |
| Weight | • 630g (1.38 lbs.) |
| Certifications | • CE • FCC • Shock (IEC 60068-2-27) • Freefall (IEC 60068-2-31) • Vibration (IEC 60068-2-6) • IEC 61000-6-2 • IEC 61000-6-4 • IEC 61000-4-5 |
| Warranty | • Lifetime Warranty |
The TrendNet TI-BG5091 is a high-performance industrial PoE++ switch featuring 8 x 2.5G PoE++ ports and 1 x 10G SFP+ uplink port, delivering 60Gbps switching capacity with a massive 480W PoE power budget for high-power devices. Fast PoE technology minimizes power-up wait times for connected cameras and devices. Housed in a hardened IP50-rated metal enclosure with DIN-Rail and wall mount options, it operates reliably in extreme temperatures from -40°C to 75°C, making it ideal for outdoor cabinets, factory floors, and transportation applications. The switch supports multiple redundant power inputs with alarm output triggered by power failure for enhanced reliability. Power supplies sold separately (TI-S48048, TI-S24052, 48VDC3000). Backed by a lifetime warranty, it provides robust, high-bandwidth connectivity for demanding industrial surveillance and networking deployments requiring 2.5G PoE++ and 10G fiber uplink capabilities.
