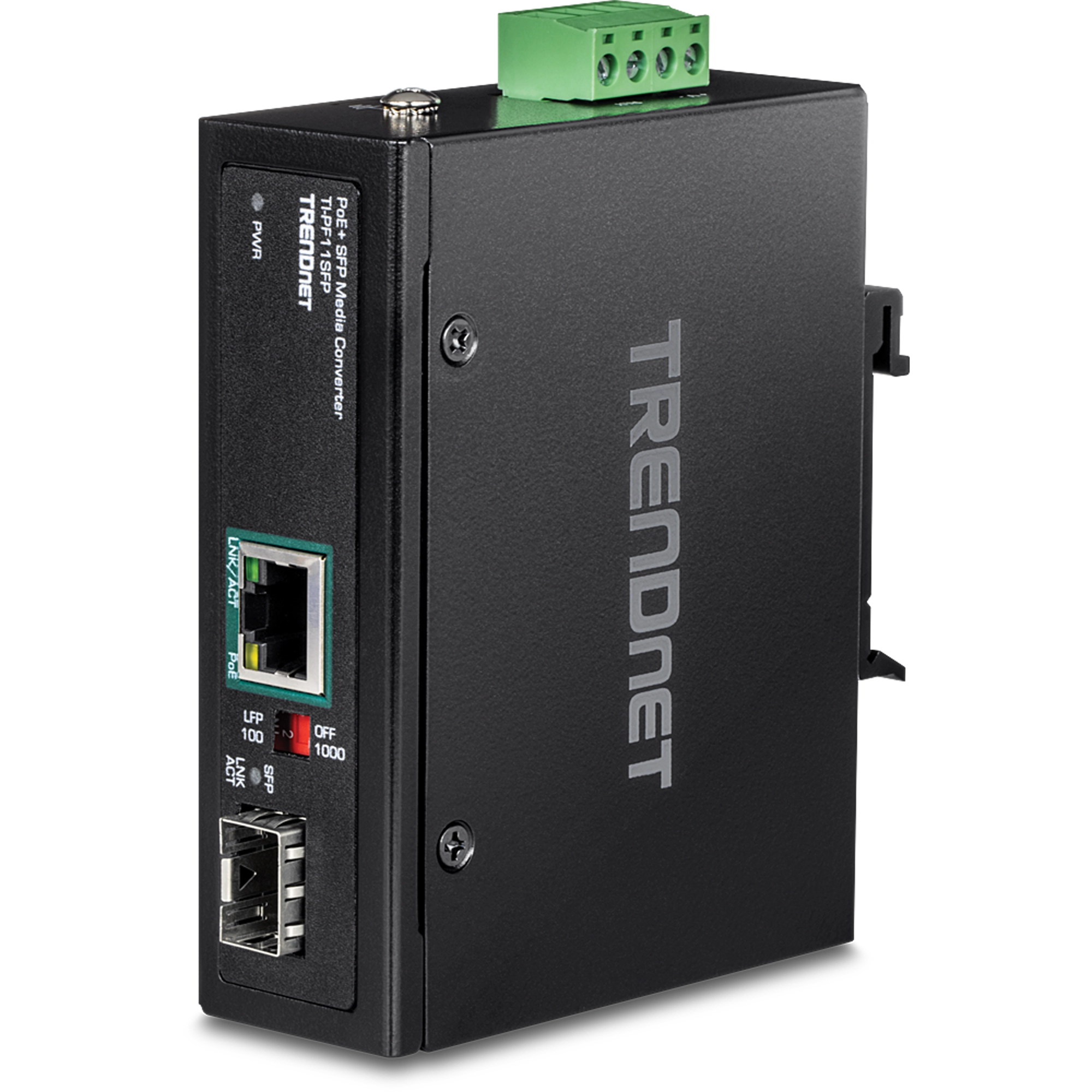

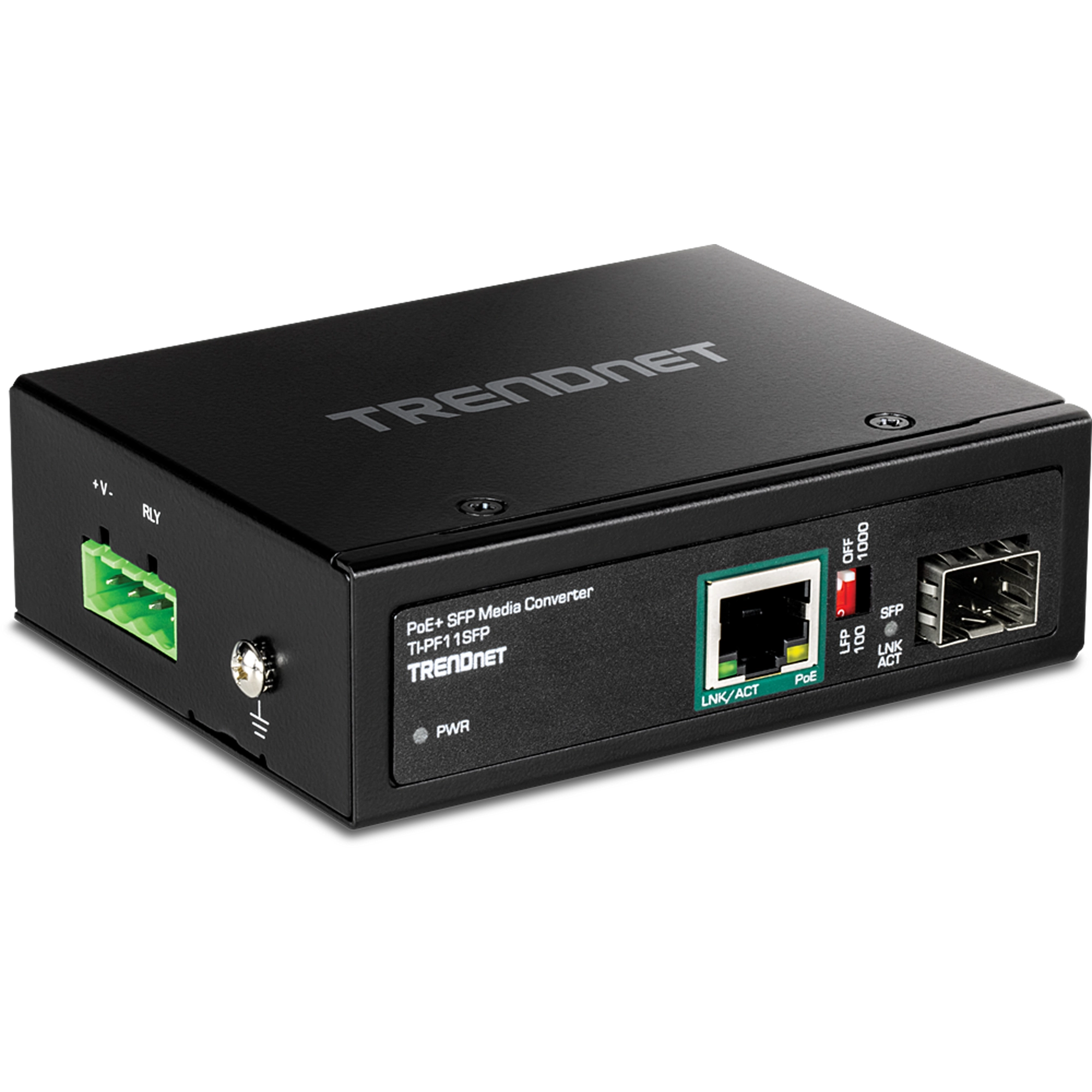

TRENDnet’s Industrial SFP to Gigabit PoE+ Media Converter, model TI-PF11SFP, converts fiber to copper while providing power to PoE and PoE+ compliant devices, such as IP cameras, VoIP phones, and wireless access points. With an operating temperature range of -40°– 75 °C (-40° – 167 °F), the hardened IP30 rated housing is suitable for extreme industrial environments. Dual power inputs (power supply sold separately: TI-S12048) with overload current protection minimizes downtime.
Industrial Applications
Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
PoE+ Output
Converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points.
Extreme Environments
Hardened IP30 converter for extreme networking environments, with a -40 to 75 °C (-40 to 167 °F) operating temperature range
Features:
- Hardened IP30 rated SFP to Gigabit PoE+ converter
- SFP port accommodates Multi or Single Mode fiber
- Up to 40 km fiber networking distances with the TI-MGBS40 SFP module
- Provides up to 30W for PoE and PoE+ compliant devices

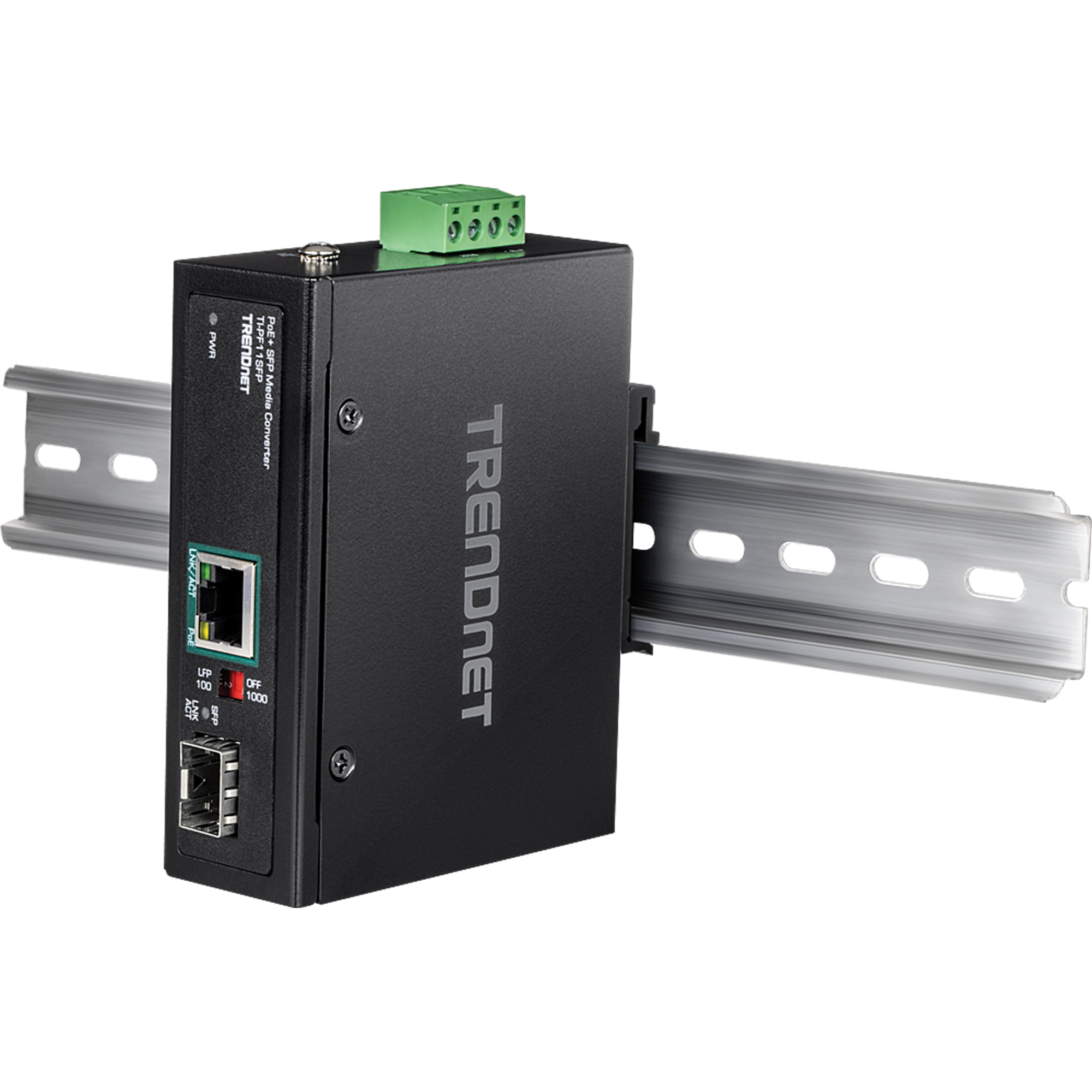

- Includes DIN-rail and wall mounts
- Wide operating temperature range -40 to 75 °C (-40 to 167 °F)
- Dual power inputs with overload current protection
- Powers supply sold separately (model TI-S12048)
- NDAA / TAA compliant
| Technical Specifications | |
| Standards | IEEE 802.3 |
| IEEE 802.3u | |
| IEEE 802.3ab | |
| IEEE 802.3z | |
| IEEE 802.3x | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| Device Interface | 1 x Gigabit PoE+ port |
| 1 x 100/1000Mbps SFP slot | |
| 4-pin removable terminal block | |
| LED indicators | |
| DIP Switch | |

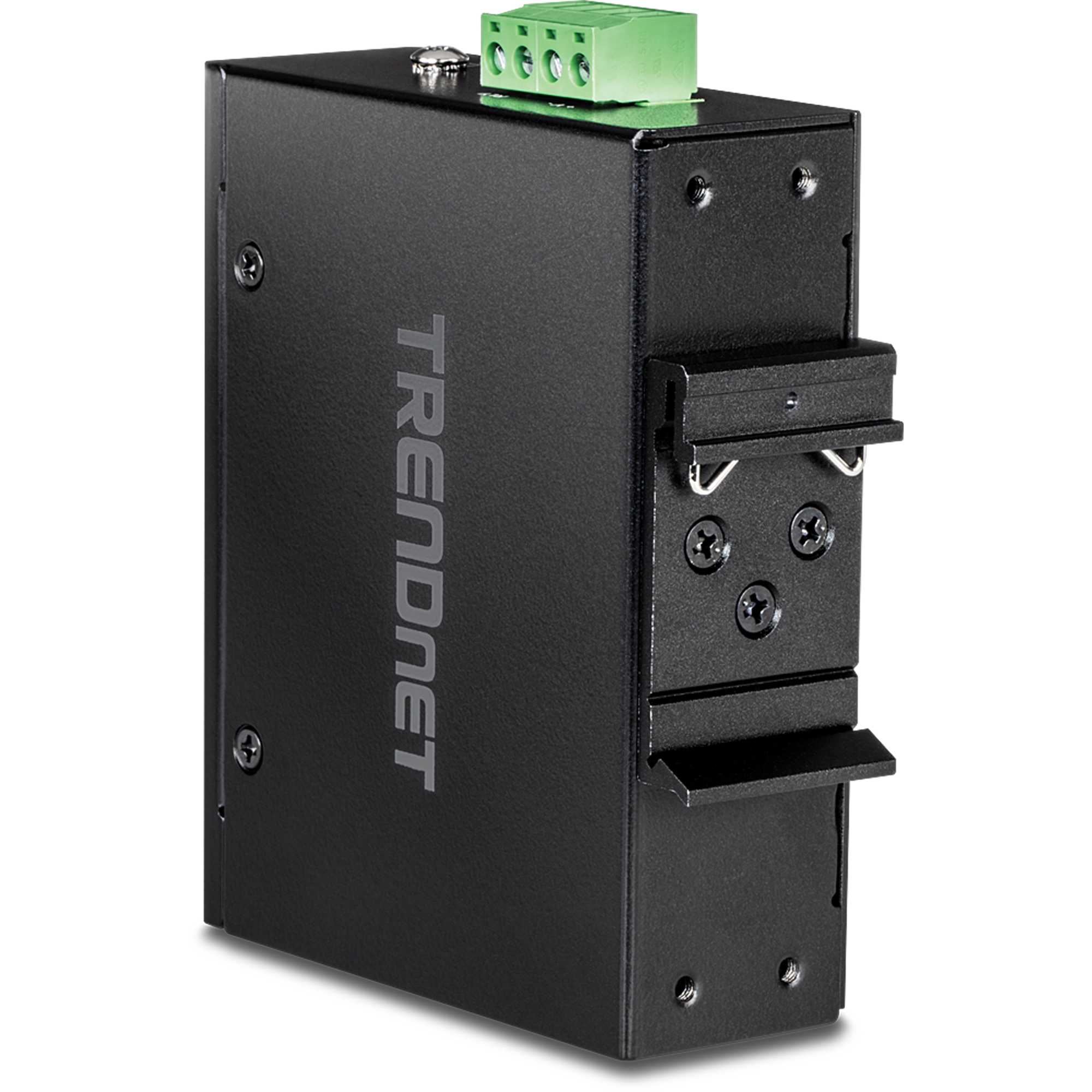

| DIN-Rail mount | |
| Wall mount | |
| Grounding point | |
| Data Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) |
| Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) | |
| Gigabit: 2000Mbps (full duplex) | |
| SFP: 200Mbps (full duplex), 2000Mbps (full duplex) | |
| Performance | Data RAM Buffer: 1MB |
| MAC address table: 1K | |
| Jumbo Frame: 16KB | |
| Switching fabric: 4Gbps | |
| Special Features | Hardened components rated for extreme temperatures |
| Supports Link Fault Pass through (LFP) function | |
| Adjustable SFP speed at 100Mbps or 1000Mbps | |
| Auto store and forward architecture | |
| Automatic address learning and address aging | |
| Power | Input: 48 - 56 V DC |
| Compatible power supply: TI-S12048 (sold separately) | |
| Consumption: 2 watts (without PoE) @ 48V DC | |
| PoE | Pin 3, 6, 4, 5 for power (+) and pin 1, 2, 7, 8 for power (-) |
| Budget budget: 30 watts | |
| Max. consumption: 36W @ 56V DC | |

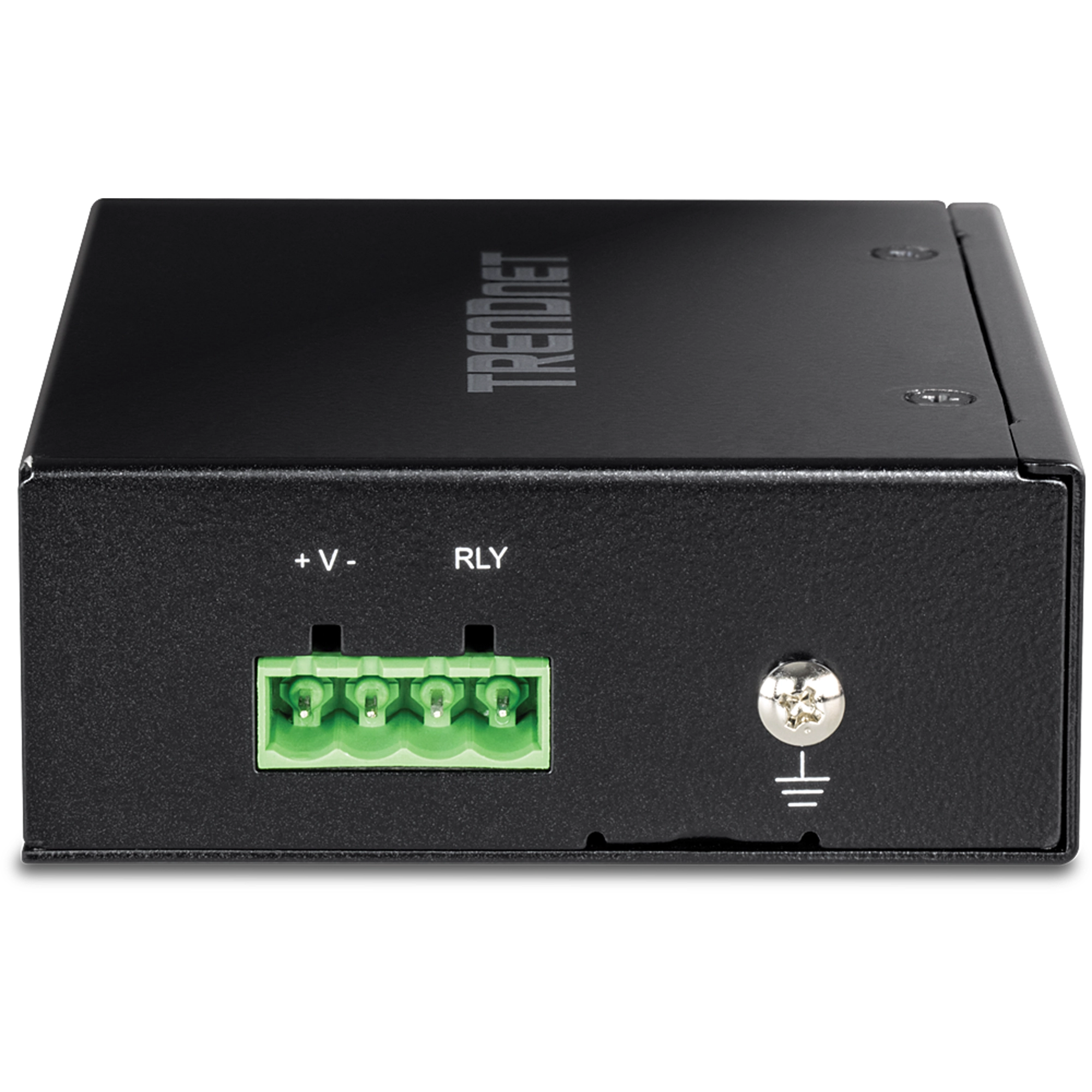

| Terminal Block | Power and relay inputs, 4 pin |
| Wire range: 0.34mm^2 to 2.5mm^2 | |
| Solid wire (AWG): 12-24/14-22 | |
| Stranded wire (AWG): 12-24/14-22 | |
| Torque: 5 lb. – In / 0.5Nm / 0.56 Nm | |
| Wire strip length: 7-8mm | |

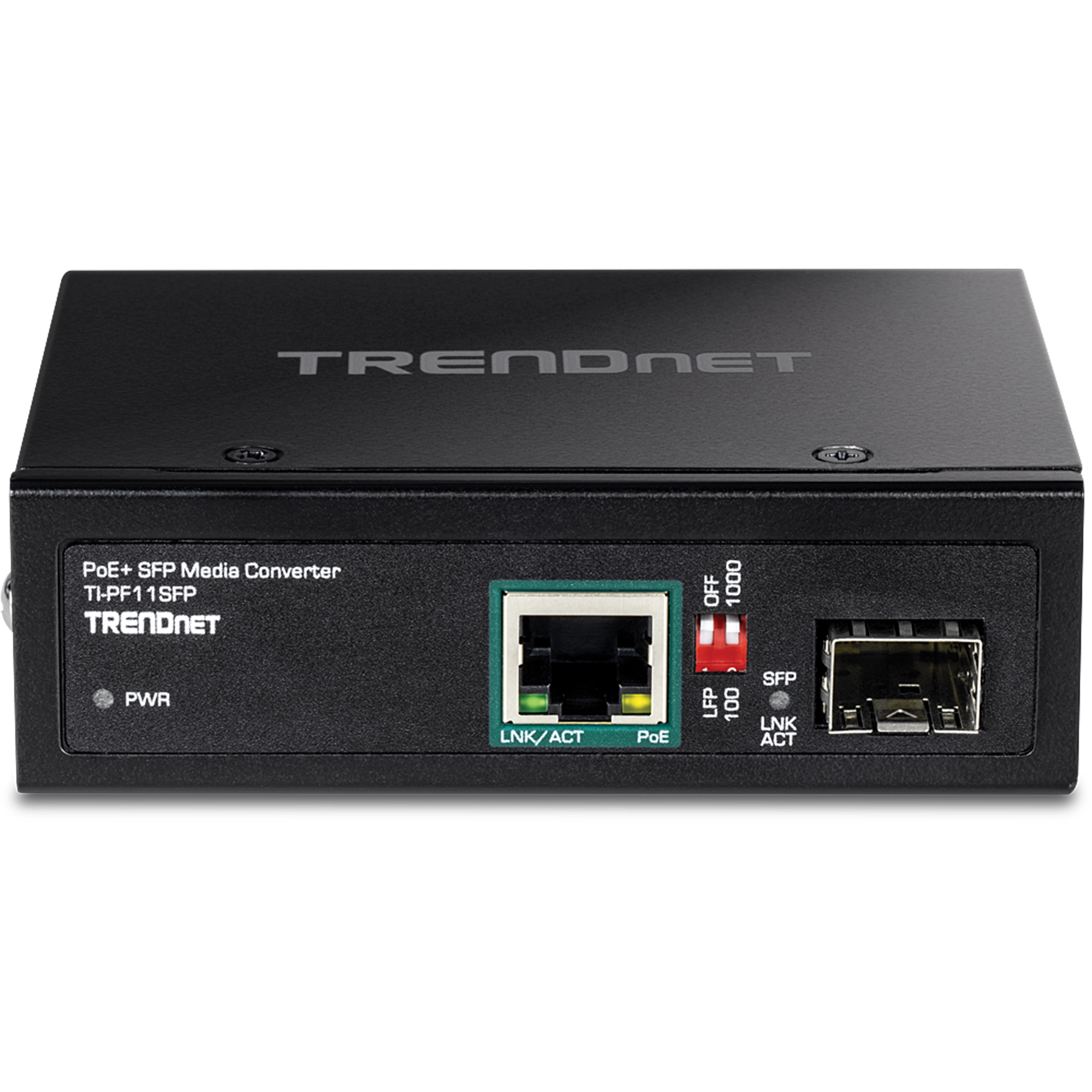

| DIP Switch | 1: OFF: LFP disabled (default), ON: LFP enabled |
| 2: OFF: SFP at 1000Mbps (default), ON: SFP at 100Mbps | |
| MTBF | 557,082 hours |
| Housing | IP30 aluminum case |
| DIN-rail mount | |
| Wall mount | |
| Grounding point | |
| Operating Temperature | - 40 to 75 °C (-40 to 167 °F) |
| Operating Humidity | Max. 95 % non-condensing |
| Dimensions | 104 x 81 x 32 mm (4 x 3.2 x 1.2 in.) |
| Weight | 154 g (5.4 oz.) |
| Certifications | CE |
| FCC | |
| Shock (IEC 60068-2-27) | |
| Freefall (IEC 60068-2-32) | |
| Vibration (IEC 60068-2-6) | |
| EN60950-1 (LVD) | |
| Warranty | 3 year |
