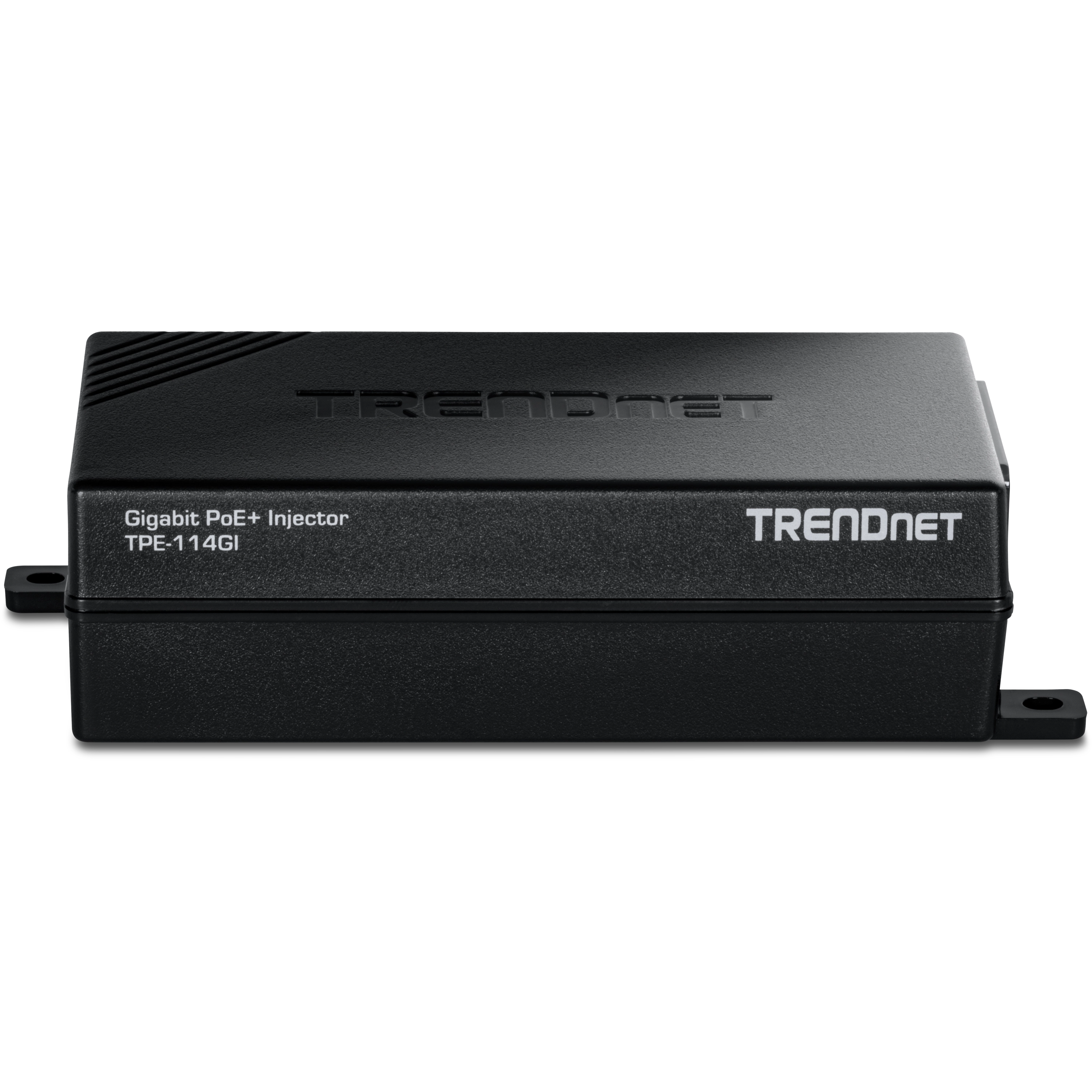

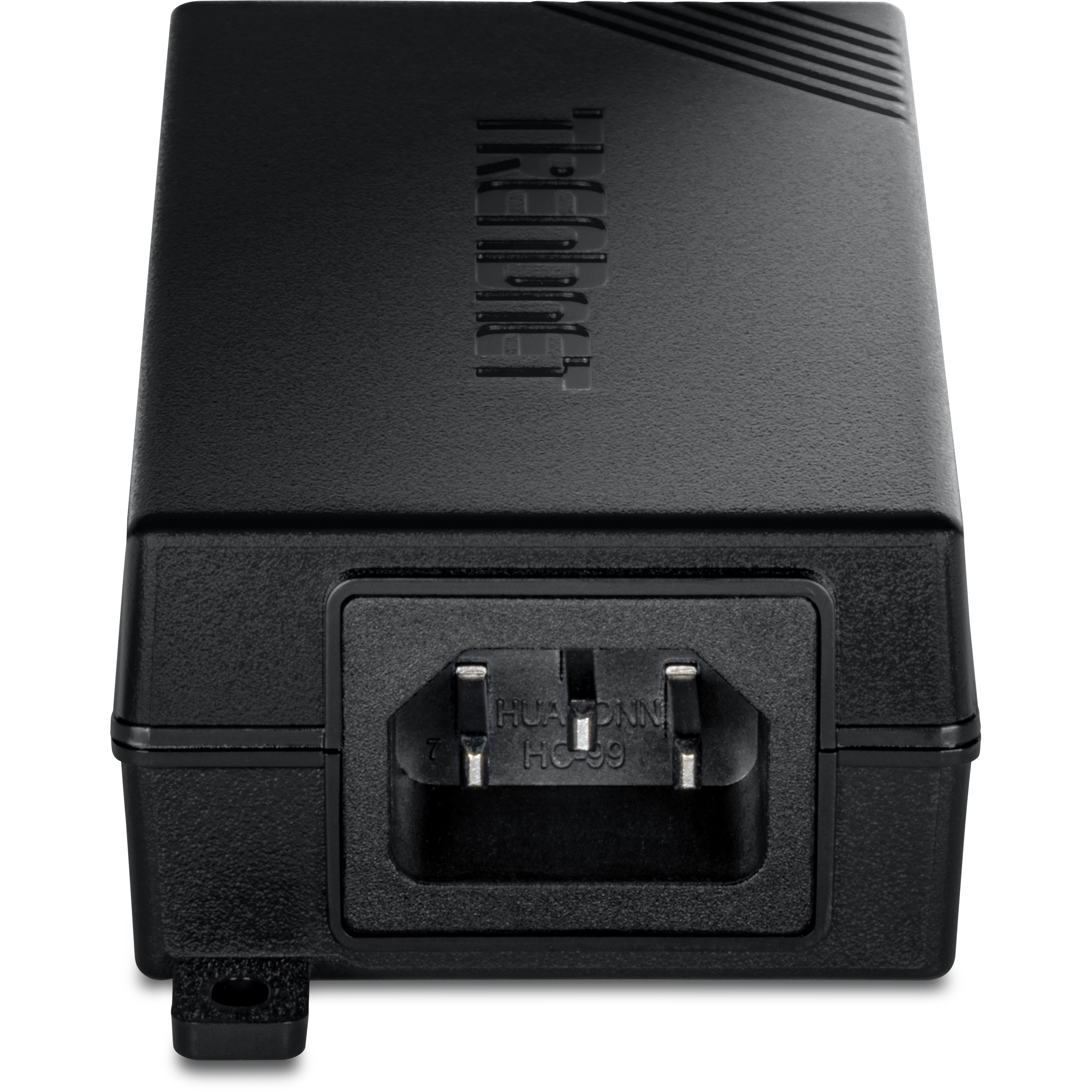

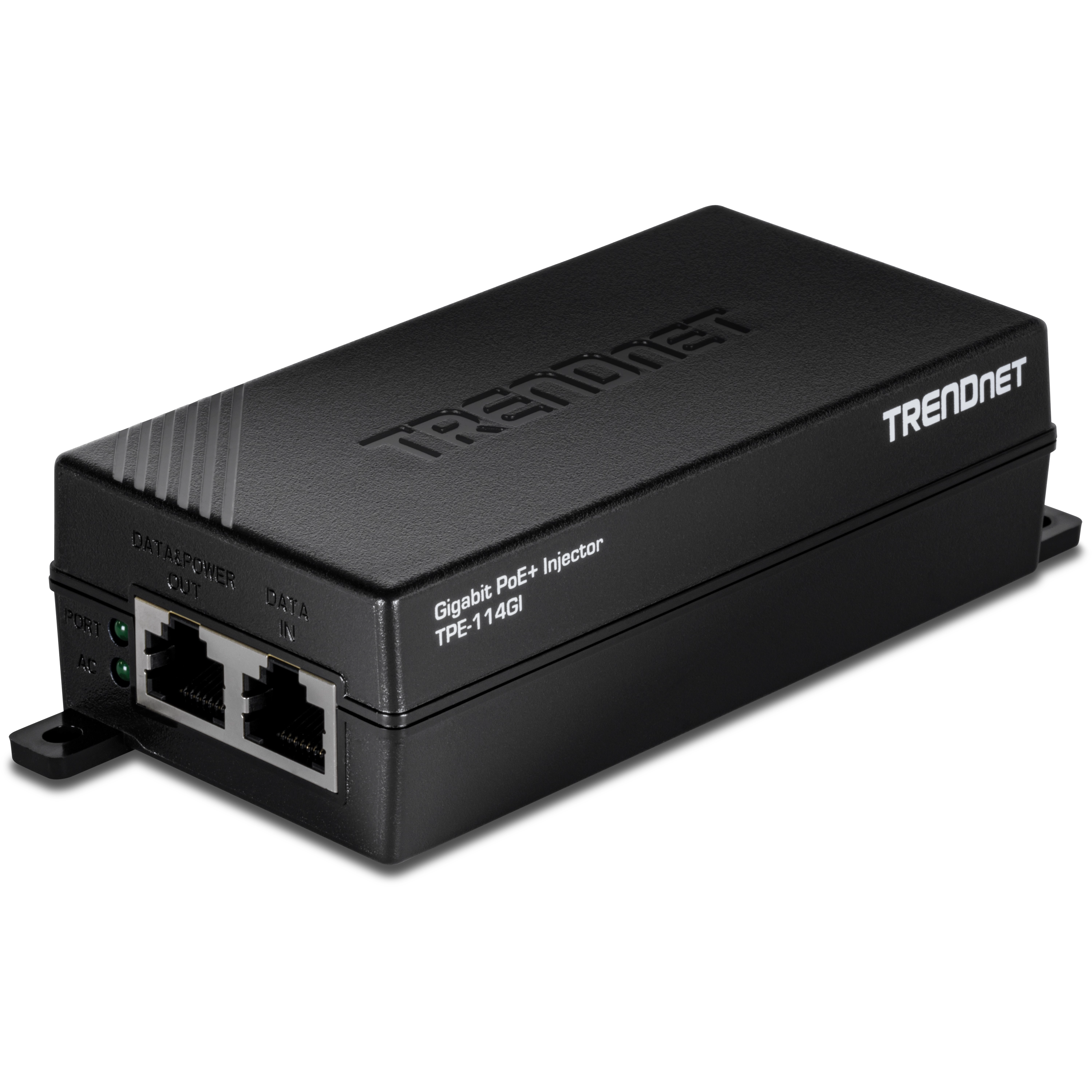

Trendnet - TPE-114GI - Gigabit PoE+ Injector
• Supplies PoE (15.4W) and PoE+ (30W)
• Networks a PoE device located up to 100 metres (328 feet) away
• Converts a non-PoE gigabit port to a PoE gigabit port
• Saves on installation and equipment costs
• Wall-mountable for flexible installation
• Built-in internal power supply
• IEEE 802.3af and IEEE 802.3at compliant
• NDAA/TAA compliant (US and Canada only)
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3af • IEEE 802.3at |
| Device Interface | • 1 x Gigabit port (data) • 1 x Gigabit PoE+ port (data + power) |
| PoE | Pins 3, 6, 4, 5 for power + and pins 1, 2, 7, 8 for power – Max. 30W |
| Power | Input: 100 – 240V, 50/60Hz, 0.8A max |
| Power Consumption | Max. 1.4W (without PD) |
| Temperature | 0° – 40° C (32° – 104° F) |
| Humidity | Max. 90% non-condensing |
| Certifications | CE, FCC, ETL, LVD |
| Dimensions | 110 x 57 x 33mm (4.33 x 2.24 x 1.3 in.) |
| Weight | 146g (5.15 oz.) |
| Warranty | 3-year |
| Pacage Contents | TPE-114GI Power cord (1m / 3.2 ft.) |
The TRENDnet Gigabit PoE+ Injector TPE-114GI combines electrical power with a Gigabit network connection. Its auto-sensing technology conveniently delivers the correct wattage needed to power your PoE devices. Simply connect the PoE+ injector to a non-PoE gigabit switch and run an Ethernet cable with data and power to network a PoE device up to 100 metres (328 feet) away. You can network a variety of PoE devices, including wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls and more.
