TRENDnet - TPE-BG350 - 5-Port 2.5G PoE++ Switch
Product Overview
The TRENDnet TPE-BG350 is a 5-port 2.5G PoE++ switch designed to provide multi-gigabit connectivity and high-power PoE delivery for modern network devices. It includes four 2.5G PoE++ RJ45 ports and one additional 2.5G RJ45 port, supporting speeds up to 2.5 Gbps over existing Cat5e or better cabling.
Key Configuration
Five 2.5G RJ45 ports, including four PoE++ ports and one non-PoE port. 135W total PoE power budget with up to 95W per PoE++ port. 25 Gbps switching capacity for multi-gigabit network traffic
Key Features
- • Provides 2.5G network speeds over existing Cat5e or better cabling
- • Supports IEEE 802.3af/at/bt PoE++ for powering compatible network devices
- • Compliant with IEEE 802.3bz 2.5Gbps Ethernet standards
- • Supports 802.1Q VLAN passthrough and 802.1p QoS passthrough
- • Fanless passive cooling design reduces operating noise
Technical Context
The TPE-BG350 combines multi-gigabit switching with PoE++ power delivery, making it suitable for access points, IP cameras, and other high-power network devices. Its 25 Gbps switching capacity supports simultaneous traffic across all five 2.5G ports, while VLAN and QoS passthrough help preserve network segmentation and traffic priority settings.
Installation Notes
The switch features a durable metal enclosure and can be wall-mounted for flexible deployment. Its fanless design supports quiet operation in offices, equipment rooms, and other noise-sensitive environments. The product is NDAA / TAA compliant for U.S. and Canada deployments and includes a lifetime warranty.
| Standards | |
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt IEEE 802.3bz |
| Device Interface | |
| Device Interface | 4 x 2.5GBASE-T RJ45 PoE++ ports (10/100/1000/2500Mbps) 1 x 2.5GBASE-T RJ45 port (10/100/1000/2500Mbps) LED indicators |
| Performance | |
| Switch Capacity | 25Gbps |
| RAM Buffer | 1MB |
| MAC Address Table | 4K entries |
| Jumbo Frames | 10 KB |
| Forwarding Rate | 18.6Mpps (64-byte packet size) |
| Power | |
| Input | 100-240V AC, 50/60Hz, 2.5A |
| Output | 55V/2.73A DC |
| Max. Consumption | 5.45W (no PoE load) / 140.45W (full PoE load) |
| Special Features | |
| Special Features | 802.1Q VLAN tag passthrough 802.1p QoS CoS tag passthrough Wall mountable |
| PoE | |
| PoE | PoE++ up to 95W |
| PoE Budget | 135W |
| PoE Pins | Pins 1,3,4,7 (-); 2,5,6,8 (+) |
| Fan/Acoustics | |
| Fan/Acoustics | Fanless design |
| MTBF | |
| MTBF | 907,832 hours |
| Operating Temperature | |
| Operating Temperature | 0° – 40° C (32° – 104° F) |
| Operating Humidity | |
| Operating Humidity | Max. 90% non-condensing |
| Dimensions | |
| Dimensions | 160 x 110 x 26mm (6.29 x 4.33 x 1.02 in.) |
| Weight | 424g (14.95 oz.) |
| Certifications | CE FCC LVD |
| Warranty | lifetime warranty |
| Package Contents | |

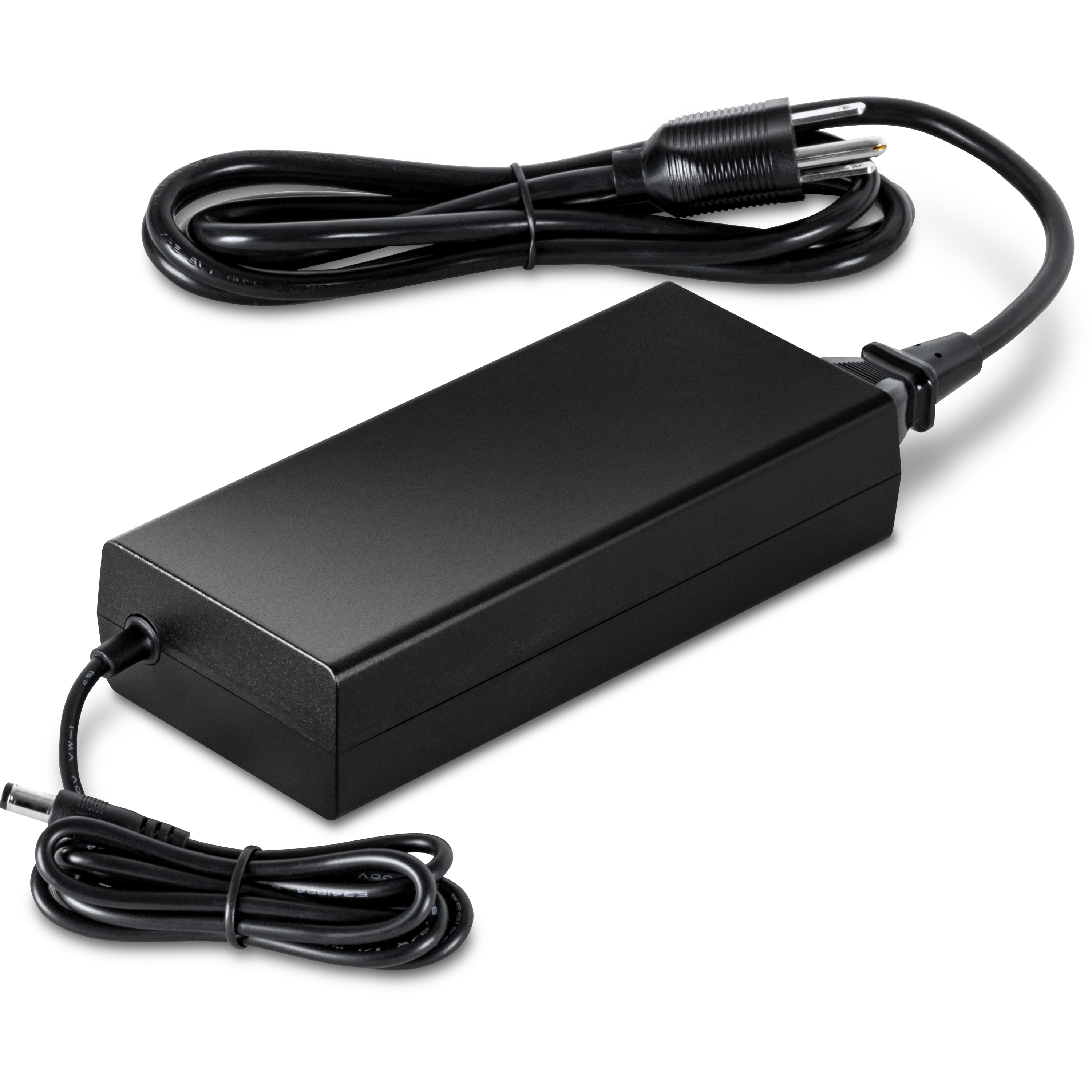

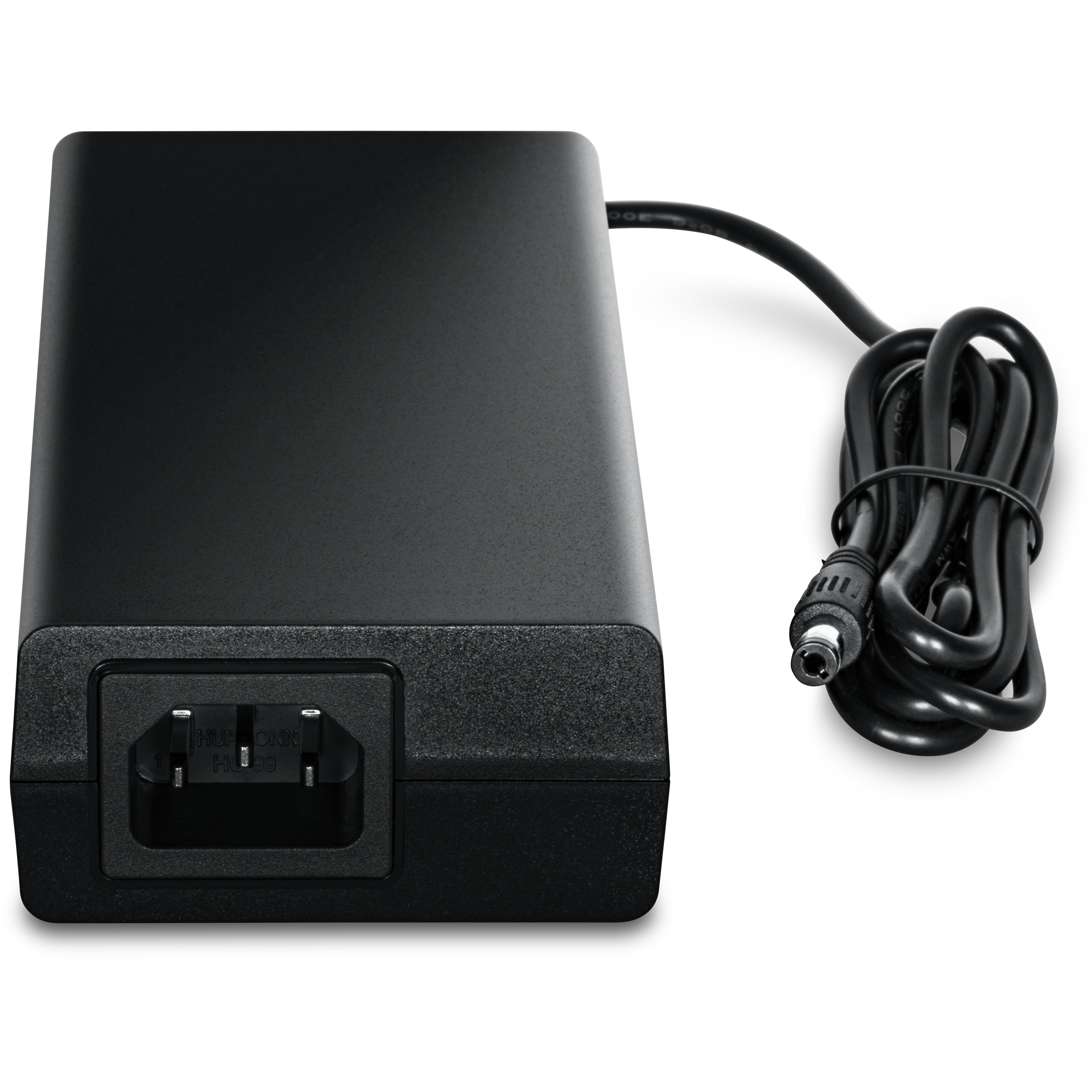

| Package Contents | TPE-BG350 Power brick (54V, 2.78A) Power cord (1.5m / 5 ft.) |
