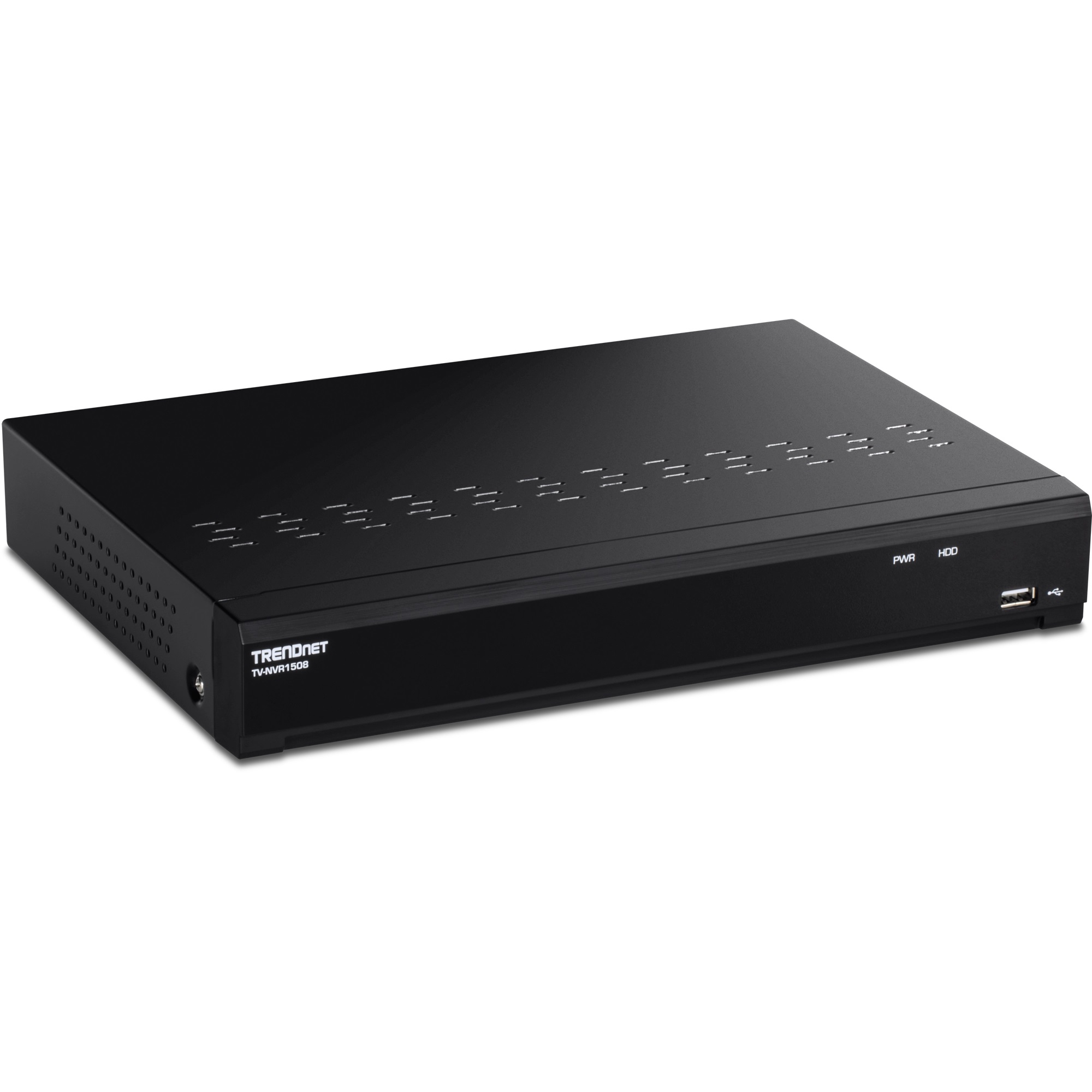

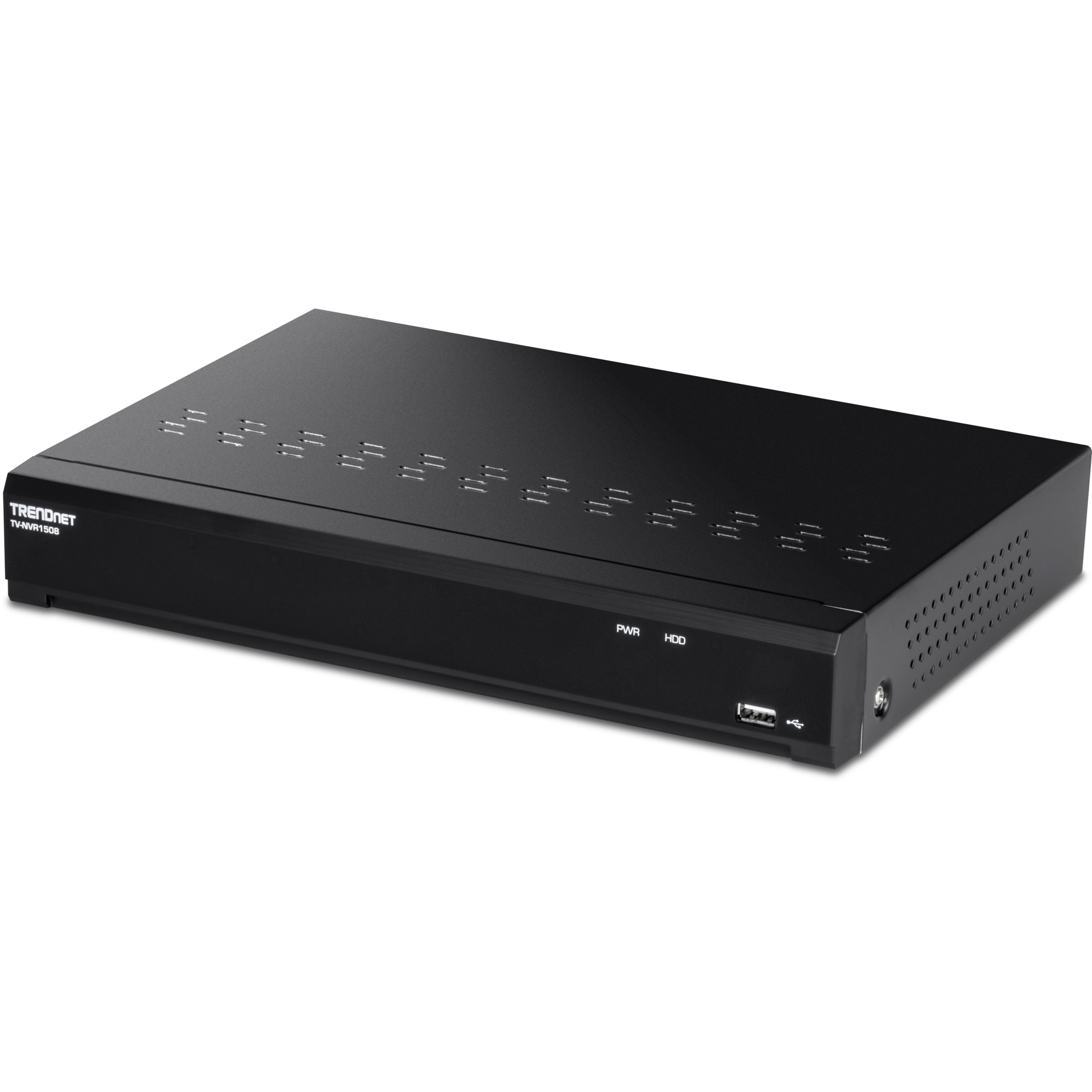

Trendnet - TV-NVR1508 - 8 Channel 4K UHD PoE+ NVR
Trendnet - TV-NVR1508 - 8 Channel 4K UHD PoE+ NVR
Part number:
TV-NVR1508
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

TRENDnet’s standalone 8-Channel H.265 4K (8MP) PoE NVR, model TV-NVR1508, offers a comprehensive rack mountable camera management solution. The 8-port NVR networks and powers up to eight PoE cameras. Install up to 12TB of storage (hard drives not included) to record over one month of continuous video from eight 4K HD PoE cameras. The TV-NVR1508 features advanced video playback and works with free iOS/Android apps.



Features:

  • Easy Cloud P2P QR code installation
  • Standalone 8-channel UHD PoE network video recorder
  • 8MP (4K) concurrent camera streams up to 240fps
  • Supports eight 4K camera channels
  • Supports H.265 video encoding for high quality & low bandwidth streams
  • Plug and play up to 8 TRENDnet PoE cameras
  • Concurrent 4K HD video recording for all channels
  • One 3.5” SATA internal drive bay supports up to a 12TB of storage (HDD sold separately)
  • External USB port supports up to 128GB
  • Over one month of continuous 4K HD video recording
  • Advanced video playback
  • PoE power budget: 56W
  • ONVIF certified
  • Made in Taiwan
  • NDAA / TAA compliant
Video Input
  • H.265 / H.264
  • Up to 8 cameras
  • Max. frame rate: 240fps
Video Output
  • HDMI up to 4K 3840 x 2160
  • VGA up to 1920 x 1080
Audio
  • Input: 8 Channel, G.711 u-law 8K & AAC
  • Output: RCA connector (0.7Vp-p, 300 – 3000Hz)
Recording
  • Up to 8MP resolution
  • H.265 / H.264
  • Max. network throughput: 64Mbps
  • 8-Channel simultaneous recording up to 1080p 30fps
  • SATA interface for HDD or SSD up to 12TB storage each
Playback
  • Playback resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Hardware Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at

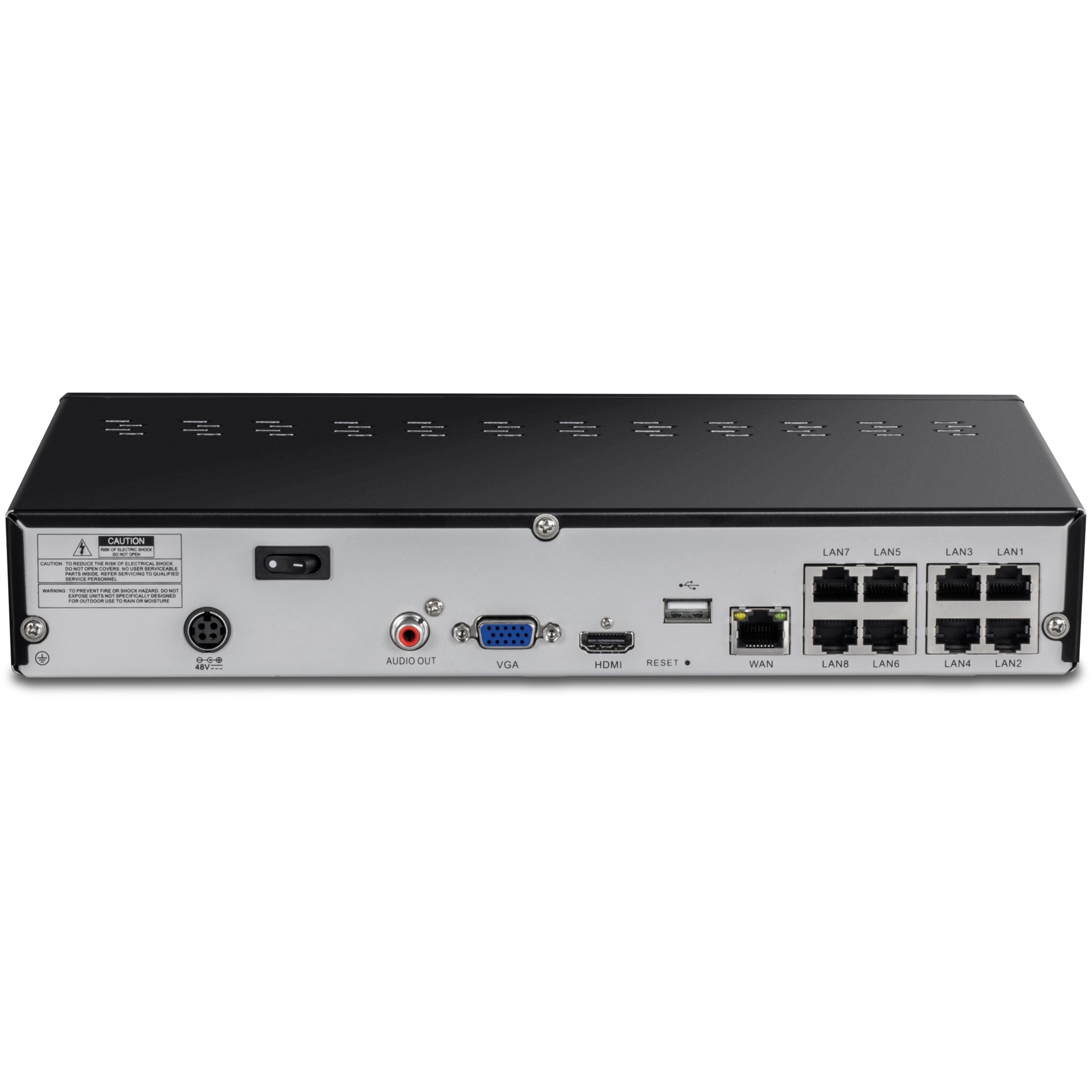

Device Interface
  • 1 x Gigabit network port
  • 8 x 100Mbps PoE ports
  • 2 x USB 2.0 ports
  • 1 x HDMI port
  • 1 x VGA port
  • 1 x SATA connector (up to 12TB)
  • Analog audio out port
  • Power port
  • Power switch
PoE Ports
  • Max. 7W per port
  • Power budget: 56W
Network Protocol
  • IPv4, UDP, TCP, ONVIF v2.2
  • DHCP, NTP, DDNS, SMTP, FTP, SNMP v2
  • HTTP, UPnP, RTSP, RTP, RTCP
Operating Temperature
  • 0° - 40° C (32° - 104° F)
Operating Humidity
  • Max. 80% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 300 x 227 x 53mm (15 x 12 x 1.8 in.)
Weight
  • 1kg (2.3 lb.)
Power
  • Input: 100 – 240V AC 50/60 Hz
  • Output: 48V 1.5A
  • Max. consumption: 6W (without camera)
Management Interface
  • Live view: Simultaneous 1 / 4 / 9 / 16 split
  • Manual, schedule (continuous, event) recording
  • Video export
  • USB external storage: firmware upgrade, import/export configuration file and logs, export recorded video files, search and playback videos directly from external storage
  • Local live view settings: define screen layout and channel viewing sequence
  • Alert messages: motion, alarm and video lost
  • Supported dynamic DNS services: dyndns.org and ipddns.cc
  • Management Setting: maximum 15 user accounts
Sentinel App
  • Free iOS and Android apps
  • View live camera video
  • Push notifications
  • Take snapshots and videos
  • Playback
Warranty
  • 2 year

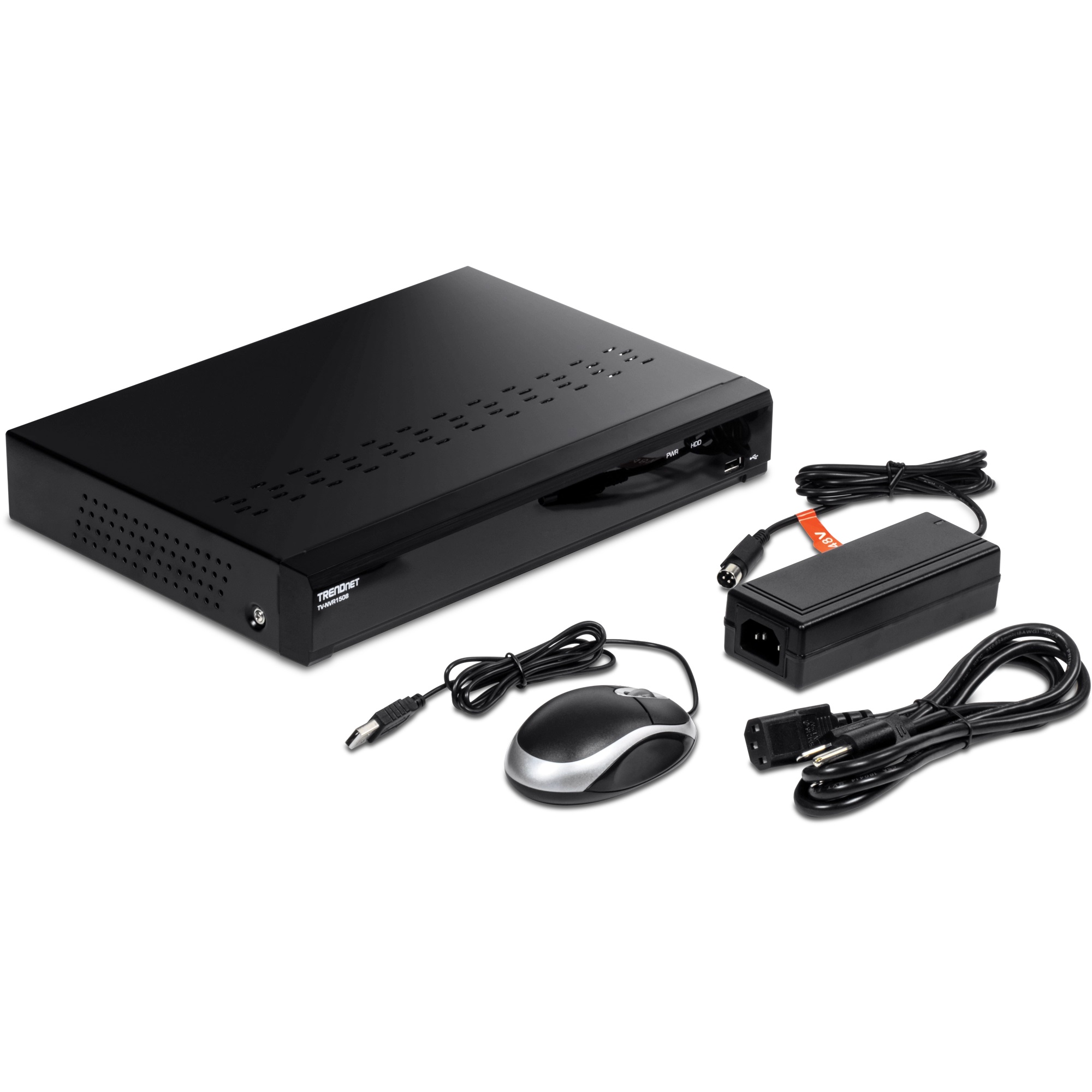

PACKAGE CONTENTS

  • TV-NVR1508
  • Optical mouse
  • Quick Installation Guide
  • Power adapter (48V, 1.5A)
Name
Description
Size
Downloads
File
Datasheet
0.5mb
