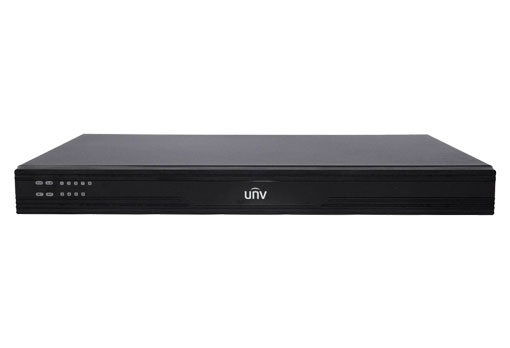

Uniview - DC5506 - 6-Channel High Definition Video Decoder
Part number:
DC5506
Price:
6 - Channel High Definition Video Decoder
Features:
- Provide 4/6/9 HDMI output interfaces
- Provide 2 HDMI input interface
- Up to 3840x2160@30Hz via HDMI output interfaces
- Up to 3840x2160@30Hz via HDMI input interfaces
- Up to decoding at 8MP resolution
- DC5506-E Support 6-ch@4K/24-ch@1080P/54-ch@720P/96-ch@D1 decoding ability
- Decode video stream in H.265/ H.264/ MPEG4
- 1/2/3/4/6/7/9/16 display split
- Standard ONVIF video stream supported
- Support multicast
- Decode video stream in H.265/ H.264/MPEG4
- Support up to 4/6/9 video-wall display units
| Model | DC5504-E | DC5506-E | DC5509-E |
| Video Output | |||
| Output channel | 4 | 6 | 9 |
| HDMI output | 3840x2160（4K）@30HZ, 1920X1200（WUXGA）@60HZ, 1920X1080（1080P）@60HZ, 1600X1200（UXGA）@60HZ, 1440x900（WXGA+）@60HZ, 1280x1024（SXGA）@60HZ, 1280x720（720P）@60HZ, 1024x768（XGA）@60HZ | ||
| Video input | |||
| Input channel | 2*HDMI | ||
| HDMI input | 3840x2160（4K）@30HZ, 1920X1080（1080P）@60HZ, 1920X1080（1080P）@50HZ, 1600x1200（UXGA）@60HZ, 1440x900（WXGA）@60HZ, 1280x1024（SXGA）@60HZ, 1280x720（720P）@60HZ, 1280x720（720P）@50HZ, 1024x768（XGA）@60HZ | ||
| Video Decoding | |||
| Video Stream Format | H.265, H.264, MPEG4 | ||
| Decoding Capability | 4x8MP@30, 16x1080P@30, 36x720P@30, 64xD1 | 6x8MP@30, 24x1080P@30, 54x720P@30, 96xD1 | 9x8MP@30, 36x1080P@30, 81x720P@30, 144xD1 |
| Display split | 1/2/3/4/6/7/8/9/16 | ||
| External Interface | |||
| Audio Input | 1-ch (Reservation) | ||
| Audio Output | 1-ch | ||
| Alarm Input | 6(Reservation) | ||
| Alarm Output | 3 (Reservation)) | ||
| USB Interface | 1*USB3.0 | ||
| Serial Interface | 1*RS-232, 1*RS485 | ||
| Network Interface | 1*RJ-45 , 10M/100M/1000M adaptive Ethernet Interfaces | ||
| General | |||
| Dimensions | 440mm(W)×339mm(D)×44mm(H) | ||
| Weight | 3.28kg | 3.30kg | 3.37kg |
| Working Temperature | -10~55°C | ||
| Working Humidity | 10% ~ 90%(No-condensing) | ||
| Power Supply | 100V ~ 240V AC | ||
| Consumption | 20W | 24W | 31W |
