UNV - EC-B5F28DL - 5MP Dual Light Fixed Mini Bullet, 2.8mm, Built-in Mic
Product Overview

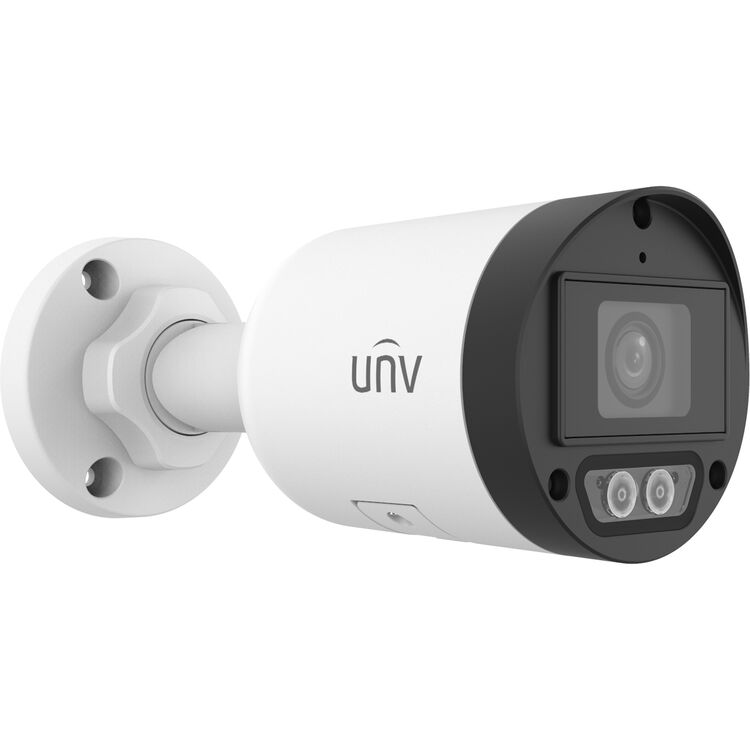

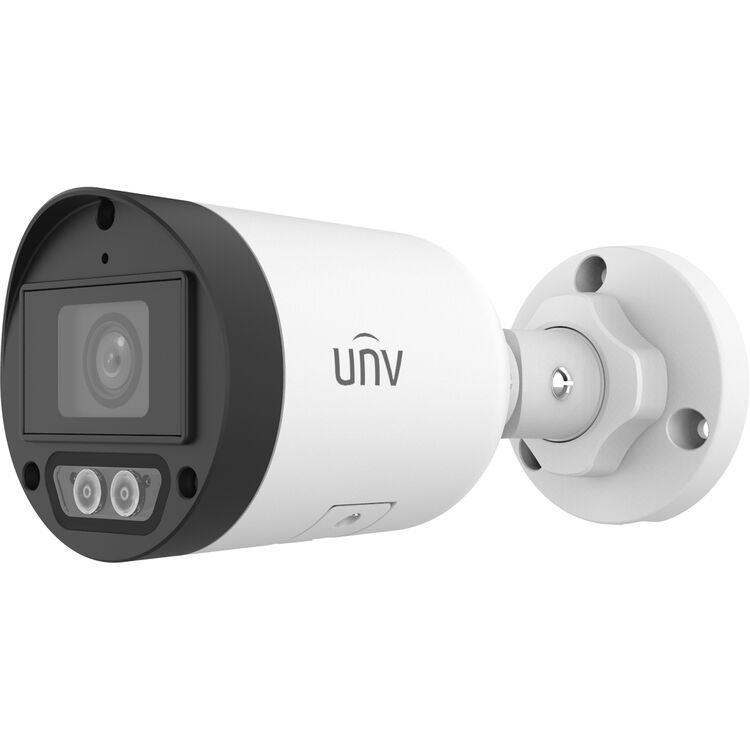

The Uniview EC-B5F28DL is a 5MP dual-light fixed mini bullet network camera designed for continuous outdoor video surveillance. It combines invisible infrared illumination for discreet nighttime monitoring with an automatic white-light floodlight that can provide color video when motion is detected in darkness. The camera features a fixed 2.8mm wide-angle lens, corridor mode, and built-in audio for flexible security installations.
Key Configuration
Model: EC-B5F28DL | Resolution: 5MP | Lens: Fixed 2.8mm wide-angle lens | Illumination: Infrared and motion-activated white light | Function: Outdoor IP video surveillance with built-in audio
Key Features
- · 5MP high-definition video provides detailed surveillance images
- · Fixed 2.8mm lens provides a wide viewing angle for broad-area coverage
- · Dual-light technology combines infrared and white-light illumination
- · Infrared illumination supports discreet nighttime monitoring
- · White-light floodlight can activate when motion is detected for color night video
- · Supports 9:16 corridor mode for narrow vertical spaces
- · Built-in audio supports sound monitoring at the camera location
- · Mini bullet form factor supports discreet and flexible installation
- · Suitable for driveways, backyards, storefronts, corridors, and other outdoor areas
Technical Context
Dual-light operation combines low-visibility infrared monitoring with active white-light illumination. The camera can remain in discreet IR mode during normal nighttime observation and switch to white light when motion is detected, helping preserve color details such as clothing and vehicle appearance in dark scenes. Corridor mode changes the image orientation for narrow vertical areas.
Installation Notes
Install the camera with a clear view of the monitored area and orient the fixed 2.8mm lens to cover the required scene. Use suitable outdoor mounting hardware and consider the position of the white-light illumination when installing near entrances, driveways, or other motion-sensitive areas.
| Product Information | |
| Product Model | Uniview EC-B5F28DL |
| Product Type | 5MP Dual Light Fixed Mini Bullet IP Camera |
| Series | Uniview Eco Series |
| Application | Outdoor 24/7 video surveillance |
| Video and Lens | |
| Resolution | 5 Megapixels |
| Lens | 2.8 mm fixed focal lens |
| Viewing Coverage | Wide-angle coverage for driveways, backyards, storefronts, and other broad areas |
| Corridor Mode | Supported; 9:16 aspect ratio for narrow spaces such as hallways and alleyways |
| Video Compression | Ultra 265 compression Reduces storage and bandwidth requirements while preserving image quality. |
| Dual Light Night Vision | |
| Smart IR | Invisible infrared illumination up to 30 m (100 ft) |
| White Light | Built-in warm white illumination up to 30 m (100 ft) |
| Dual Light Operation | Uses infrared illumination for discreet monitoring and activates white light when motion is detected to capture full-color nighttime video. |
| Audio and Storage | |
| Microphone | Built-in microphone for audio recording |
| Local Storage | Built-in MicroSD card slot |
| Maximum MicroSD Capacity | Up to 512 GB |
| Recording Redundancy | Local video backup during network interruptions |
| Network and Power | |
| Network Interface | Ethernet IP network connection |
| Power Method | PoE; power and network data are transmitted through a single Ethernet cable |
| Voltage Tolerance | Supports voltage fluctuation tolerance of ±25% |
| Mechanical and Environmental | |
| Form Factor | Compact fixed mini bullet camera |
| Ingress Protection | IP67 dustproof and waterproof |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Outdoor Suitability | Designed for outdoor operation in rain, snow, and changing weather conditions |
| Certifications and Compliance | |
| Compliance | NDAA Compliant |
| Recommended Use | Commercial, residential, industrial, and government surveillance installations |
