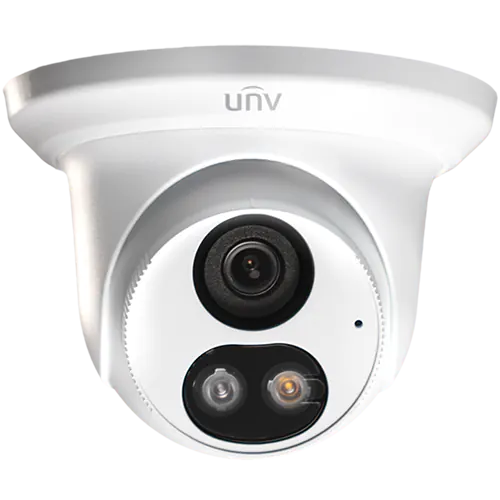

UNV - EC-T4F28DL - 4MP HD Smart Dual Light Fixed Turret Network Camera

Product Overview

This 4MP Fixed Dual Light Economic Network Camera is designed for day and night surveillance with both infrared and white light illumination. It supports flexible lighting modes for discreet black-and-white monitoring, visible full-color illumination, or automatic dual-light operation triggered by ultra motion detection.

Key Configuration

Product Type: 4MP Fixed Dual Light Economic Network Camera | Illumination: Infrared LED and White Light LED | IR Range: Up to 30m / 98ft | White Light Range: Up to 30m / 98ft | Video Compression: Ultra 265, H.265, H.264, MJPEG | Protection: IP67

Key Features

 · Day and night functionality for continuous surveillance

 · Smart IR illumination up to 30m / 98ft

 · White light illumination up to 30m / 98ft

 · Dual Light mode switches from infrared to color imaging when ultra motion detection is triggered

 · Supports DWDR, motion detection, and ultra motion detection

 · 2D/3D DNR helps reduce image noise in challenging lighting conditions

 · ROI support allows important image areas to be prioritized

 · ONVIF conformance supports integration with compatible video systems

Technical Context

The camera provides three illumination options: White Light for visible full-color night images, Infrared for discreet black-and-white night monitoring, and Dual Light as the default mode. As a basic model, it supports DWDR, motion detection, and ultra motion detection, but does not support line crossing or intrusion detection.

Installation Notes

The IP67-rated housing supports outdoor installation in rain and dusty environments. The camera supports a wide operating temperature range of -30°C to +60°C (-22°F to 140°F), a wide voltage range of ±25%, and uses the TR-JB03-H-IN and TR-WM03-B-IN junction boxes.
