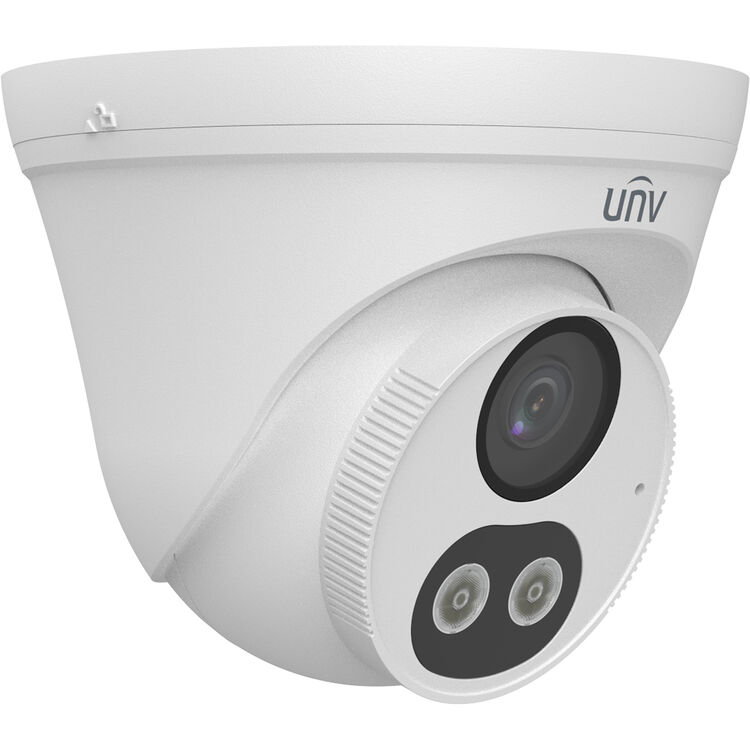

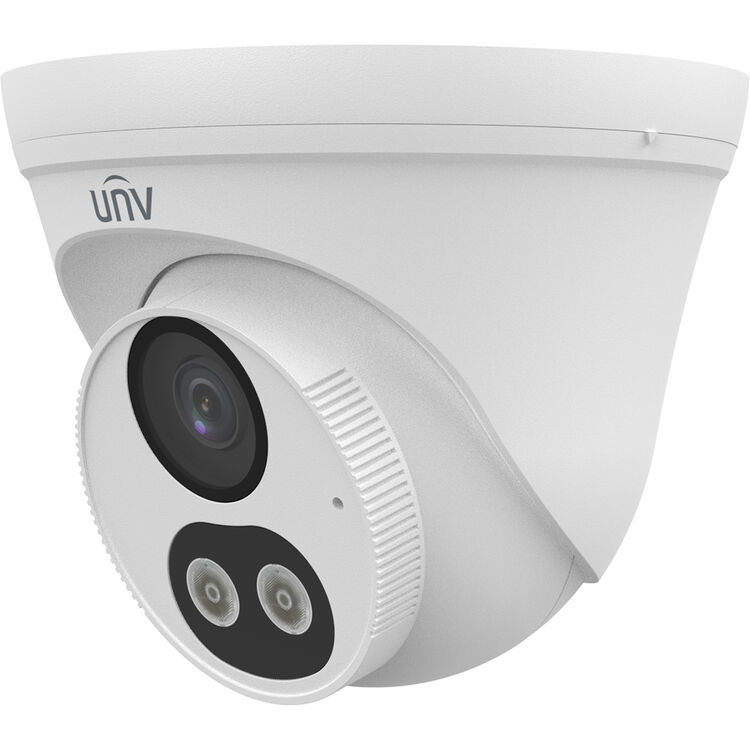

UNV - EC-T5F28DL - 5MP Dual Light Fixed Turret, 2.8mm, Built-in Mic
Product Overview
The Uniview EC-T5F28DL is a 5MP turret-style IP camera designed for outdoor and general-purpose video surveillance. Its Smart Dual Light Technology uses invisible infrared illumination for discreet nighttime monitoring and can activate a warm white light when motion is detected, helping capture full-color evidence and provide visual deterrence. The camera combines a fixed 2.8mm wide-angle lens with wide dynamic range for broad and balanced scene coverage.
Key Configuration
Model: EC-T5F28DL | Resolution: 5MP | Lens: Fixed 2.8mm wide-angle lens | Illumination: Infrared and motion-activated warm white light | Camera Type: Turret-style IP camera | Application: Outdoor and general-purpose surveillance
Key Features
- · 5MP resolution provides detailed surveillance video
- · Fixed 2.8mm lens provides a wide viewing angle
- · Smart Dual Light Technology combines infrared and warm white illumination
- · Infrared light supports discreet black-and-white nighttime monitoring
- · Warm white light can activate when motion is detected for color night video
- · White-light activation provides visual deterrence in response to movement
- · Wide Dynamic Range balances bright highlights and dark shadows
- · Turret-style housing supports flexible camera positioning
- · Suitable for yards, entrances, rooms, storefronts, and perimeter areas
- · Rugged weather-resistant housing supports outdoor deployment
Technical Context
Smart Dual Light operation allows the camera to remain in discreet infrared mode during routine nighttime monitoring and switch to warm white illumination when motion occurs. This preserves color information for important events while adding a visible deterrent. Wide Dynamic Range helps maintain usable detail when a scene contains both strong sunlight and shadowed areas.
Installation Notes
Mount the turret camera with a clear view of the required surveillance area and adjust the fixed 2.8mm lens toward the target zone. Position the warm-light output carefully near entrances, driveways, and other motion-sensitive areas, and use suitable weather-resistant mounting hardware for outdoor installation.
| Product Information | |
| Product Model | Uniview EC-T5F28DL |
| Product Type | 5MP Smart Dual Light Fixed Turret IP Camera |
| Camera Style | Turret-style eyeball camera |
| Application | Indoor and outdoor 24/7 video surveillance |
| Video and Image Quality | |
| Resolution | 5 Megapixels |
| Lens | 2.8 mm fixed focal lens |
| Viewing Coverage | Wide-angle coverage for rooms, yards, entrances, and other broad areas |
| Wide Dynamic Range | WDR for balancing bright highlights and dark shadows |
| Video Compression | Ultra 265 Reduces video file sizes and storage requirements while maintaining image quality. |
| Smart Dual Light | |
| Illumination | Infrared LEDs and warm white light LEDs |
| IR Night Vision Distance | Up to 30 m (98 ft) |
| White Light Distance | Up to 30 m (98 ft) |
| Smart Lighting Operation | Uses invisible infrared illumination for standard nighttime monitoring and can activate warm white lighting when motion is detected for full-color video. |
| Audio and Storage | |
| Microphone | Built-in microphone with noise suppression |
| Local Storage | Built-in MicroSD card slot |
| Maximum MicroSD Capacity | Up to 512 GB |
| Network and Power | |
| Network Connection | IP Ethernet network connection |
| Power Method | PoE; video, data, and power can be transmitted through a single Ethernet cable |
| Mechanical and Environmental | |
| Form Factor | Fixed turret-style eyeball camera |
| Ingress Protection | IP67 dustproof and waterproof |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Outdoor Suitability | Designed for operation in rain, snow, dust, and extreme temperatures |
| Certifications and Compliance | |
| Compliance | NDAA Compliant |
