UNV - EK-S31P4B44-V3 - 4-Channel NVR with 4MP Bullet Cameras
Product Overview

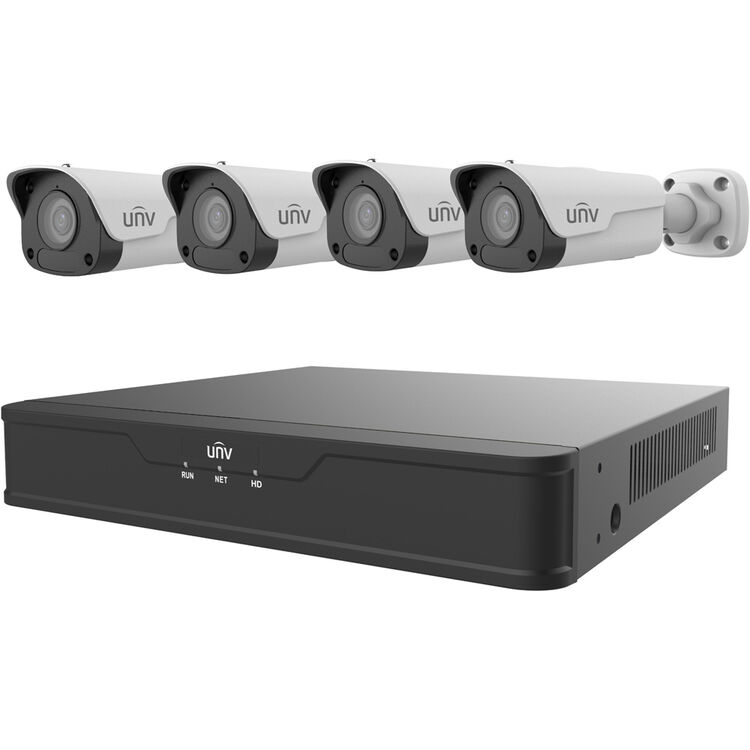

This Uniview 4-channel surveillance kit combines an NVR301-04S3-P4 network video recorder with four EC-B4F28M-V3 4MP IP cameras. The NVR provides four independent PoE ports, Ultra 265/H.265/H.264 recording, HDMI and VGA simultaneous output, and recording support up to 8MP. Each camera uses a 2.8mm lens, Smart IR up to 30m, day/night functionality, and IP67 protection; no HDD is included.
Key Configuration
System: 4-channel IP surveillance kit | NVR: NVR301-04S3-P4 | Cameras: 4 × EC-B4F28M-V3, 4MP, 2.8mm lens | Recording: Up to 8MP, 1 SATA HDD bay, HDD not included | Connectivity: 4 independent PoE ports, HDMI, VGA, ONVIF Profiles S/G/T | Protection: IP67 camera housings
Key Features
- · 4-channel NVR includes four independent PoE network interfaces
- · Includes four EC-B4F28M-V3 4MP IP cameras with 2.8mm lenses
- · Supports Ultra 265, H.265, and H.264 video formats
- · NVR supports recording resolutions up to 8MP
- · HDMI and VGA outputs support simultaneous local display
- · ONVIF Profiles S, G, and T support compatible third-party IP cameras
- · EC-B4F28M-V3 cameras provide day/night functionality and Smart IR up to 30m
- · Cameras support 2D/3D digital noise reduction and ROI
- · IP67 camera housings support outdoor installation
- · NVR supports cloud upgrades and one SATA HDD bay
Technical Context
The NVR's independent PoE ports provide power and network connectivity to each included camera through a single Ethernet cable, simplifying deployment. Ultra 265, H.265, and H.264 compression helps manage bandwidth and recording storage, while ONVIF support allows compatible third-party cameras to be integrated into the four-channel platform.
Installation Notes
Connect the four EC-B4F28M-V3 cameras to the NVR's four PoE ports and install a compatible SATA HDD before recording. The cameras operate from -30°C to 60°C, support a wide voltage range of ±25%, and provide IP67 protection for outdoor use. HDD is not included.
| Product Information | |
| Product Model | NVR301-04S3-P4 |
| Video and Network | |
| IP Video Input | 4 channels |
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Remote Users | Up to 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
| Video and Audio Output | |
| HDMI Output | 4K (3840 × 2160) at 30 Hz 1920 × 1080 at 60/50 Hz 1600 × 1200 at 60 Hz 1280 × 1024 at 60 Hz 1280 × 720 at 60 Hz 1024 × 768 at 60 Hz |
| VGA Output | 1920 × 1080 at 60/50 Hz 1600 × 1200 at 60 Hz 1280 × 1024 at 60 Hz 1280 × 720 at 60 Hz 1024 × 768 at 60 Hz |
| Recording Resolution | 4K, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, CIF |
| Audio Output | 1-channel RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 4 channels |
| Live View Display | 1/4 |
| Corridor Mode Screen | 3/4 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 1-channel snapshot, up to D1 resolution |
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Live View and Playback | 4K, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, CIF |
| Decoding Capability | 1 × 4K at 30 fps 4 × 5MP at 25 fps 4 × 4MP at 25 fps 4 × 3MP at 25 fps 4 × 1080p at 30 fps |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 8 TB per disk Maximum HDD capacity may vary according to the operating environment temperature. |
| Smart Functions | |
| VCA Detection by Camera | Face detection, intrusion detection, cross-line detection, enter area, leave area, audio detection, and Ultra Motion Detection (UMD) |
| VCA Search | Face search and behavior search |
| Alarms | |
| General Alarm | Motion, tampering, human body detection, video loss, and alarm input |
| Alert Alarm | IP conflict, network disconnection, disk offline, disk abnormality, illegal access, low hard disk space, full hard disk, and recording/snapshot abnormality |
| External Interfaces | |
| Network Interface | 1 × RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| USB Interface | Rear panel: 2 × USB 2.0 |
| RS-232 | Not available |
| RS-485 | Not available |
| Alarm Input | Not available |
| Alarm Output | Not available |
| PoE | |
| PoE Interface | 4 × RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| Maximum PoE Power | 30 W per port 54 W total |
| Supported Standards | IEEE 802.3at, IEEE 802.3af |
| Electrical and Environmental | |
| Power Supply | 48 VDC |
| Power Consumption | ≤9 W without hard disk |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Operating Humidity | ≤90% RH, non-condensing |
| Dimensions | 260 × 240 × 46 mm 10.2 × 9.4 × 1.8 in |
| Weight | ≤1.1 kg (2.43 lb) without hard disk |
| Certifications | |
| Certifications | CE, FCC, UL, RoHS, WEEE |
| CE Standards | EN 55032:2015, EN 61000-3-3:2013, EN IEC 61000-3-2:2019, EN 55035:2017 |
| FCC Standards | Part 15 Subpart B, ANSI C63.4 |
