UNV - EK-S31P4DLT44T1 - 4MP Dual Light 4 Channel Surveillance Kit with 4 Turret Domes, 4K NVR with 4 Channel and 1TB HDD

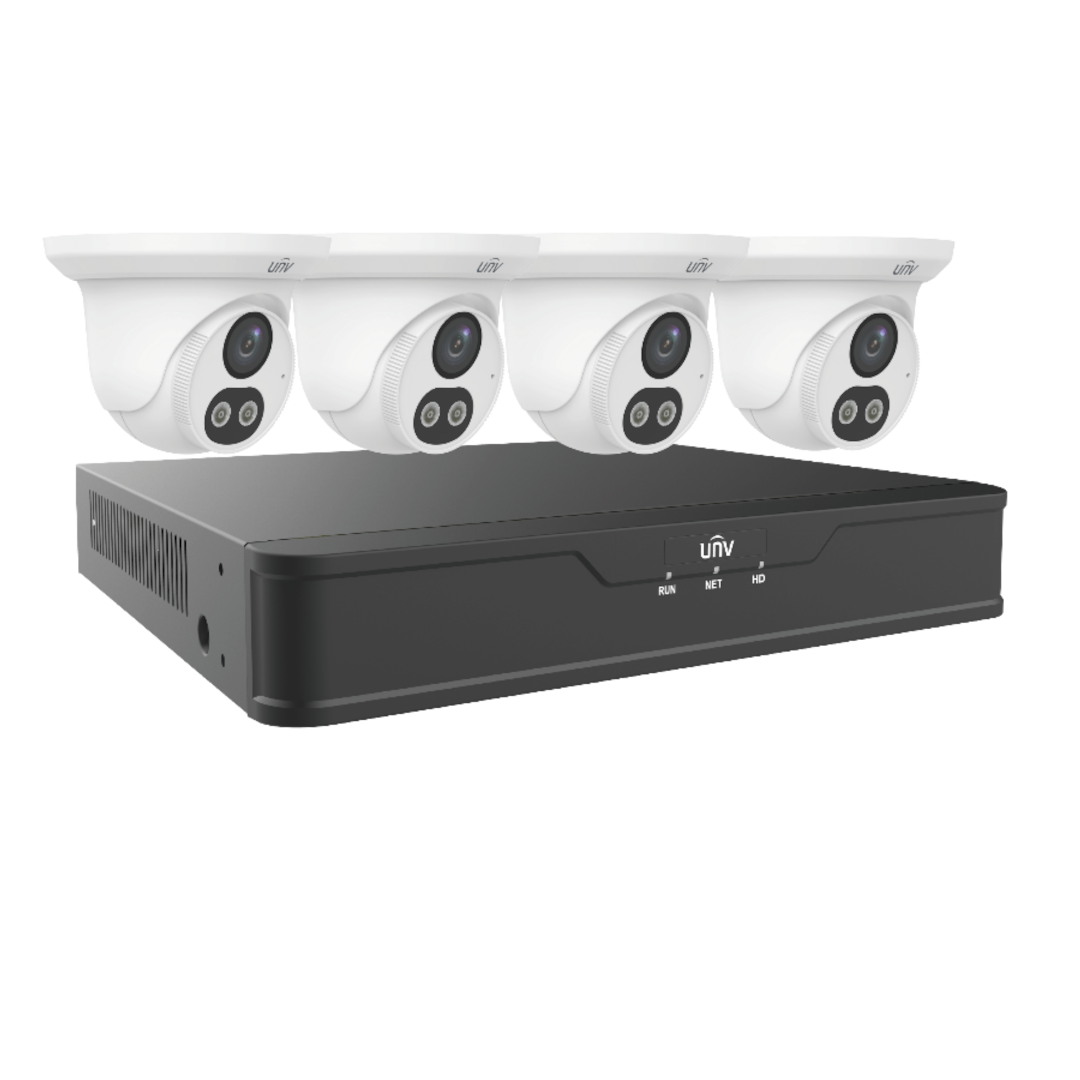

The EK-S31P4DLT44T1 is a user-friendly 4MP IP camera system with four dual-light cameras. The system is designed for small to medium-sized businesses and home applications. The dual light cameras can be programmed to activate the white light when motion is detected. The system comes with a 4-channel PoE NVR, four dual light cameras and a 1 TB HDD. This unit comes with four weatherproof IP turret cameras. In addition, the system comes with free lifetime technical support and a three-year warranty.
Features:
NVR301-04S3-P4
• Support Ultra 265/H.265/H.264 video formats
• 4-channel input
• Plug & Play with 4 independent PoE network interfaces
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support 1-ch HDMI, 1-ch VGA
• HDMI and VGA simultaneous output
• Up to 8MP resolution recording
• 1 SATA HDD
• Support cloud upgrade
IPC3614LB-AF28K-DL
• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra H.265,H.265, H.264
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Warm Light, up to 30m (98ft) warm light distance
• 2D/3D DNR (Digital Noise Reduction)
• Support 128GB Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
| Model NVR301-04S3-P4 | |
|---|---|
| Video/Audio Input | |
| IP Video Input | 4-ch |
| Network | |
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
| HDMI/VGA Output | HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 4-ch |
| Liveview display | 1/4 |
| Corridor Mode Screen | 3/4 |
| Model IPC3614LB-AF28K-DL | |
|---|---|
| Camera | |
| Resolution | 4MP |
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Colour: 0.01 lux (F1.6, AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | |
| S/N | >52dB |
| WDR | DWDR |
| Lens | |
| Lens type | 2.8mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | 97.0° |
| Field of View (V) | 52.2° |
| Field of View (D) | 107.5° |
| DORI | |
| DORI Distance (Lens) | 2.8mm |
| DORI Distance (Detect) | 63.0 m (206.7 ft) |
| DORI Distance (Observe) | 25.2 m (82.7 ft) |
| DORI Distance (Recognize) | 12.6 m (41.3 ft) |
| DORI Distance (Identify) | 6.3 m (20.7 ft) |
| Illuminator | |
| Illumination Distance (IR) | 30 m |
| Illumination Distance (Warm Light) | 30 m |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4MP (2560×1440), Max 25fps; 3MP (2304×1296), Max 30fps; 1080P (1920×1080), Max 30fps; 720P (1280×720), Max 30fps Sub Stream: D1 (720×576), Max 30fps; 640×360, Max 30fps; 2CIF(704×288), Max 30fps; CIF(352×288), Max 30fps |
| Video Bit Rate | 128 Kbps ~ 6144 Kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video stream | Dual streams |
| Image | |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°; 90° Clockwise; 90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
