UNV - EK-S31P4T44-V3 - 4-Channel NVR with 4 x 4MP Fixed Dome Network Cameras

Product Overview

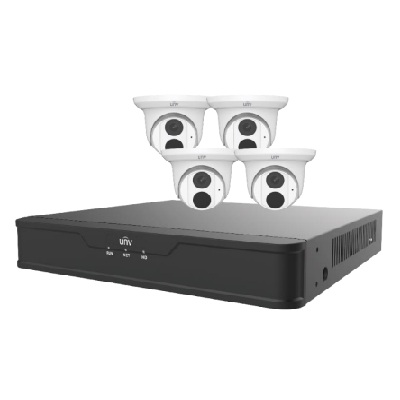

The Uniview EK-S31P4T44T1-V3 is a 4-channel plug-and-play IP surveillance kit with an NVR301-04S3-P4 recorder and four EC-T4F28M-V3 4MP turret cameras. The NVR provides four independent PoE ports, 4K HDMI output, Ultra 265/H.265/H.264 recording, and AI-enabled detection functions. The cameras feature fixed 2.8mm lenses, Smart IR up to 30m, built-in microphones, 120dB WDR, and IP67 protection; no HDD is included.

Key Configuration

Model: EK-S31P4T44T1-V3 | System Capacity: 4 channels | Included Cameras: 4 × EC-T4F28M-V3, 4MP turret cameras, 2.8mm lenses | Recorder: NVR301-04S3-P4, 4-channel NVR with 4 PoE ports | Recording: Up to 8MP, 1 SATA bay up to 8TB | Storage: HDD not included | Protection: IP67 camera housings

Key Features

• · Complete 4-channel IP surveillance kit with four included 4MP turret cameras
• · NVR provides four independent PoE ports for plug-and-play installation
• · EC-T4F28M-V3 cameras use 2.8mm lenses with a 101.5° horizontal field of view
• · Cameras provide 4MP video at up to 20 fps
• · Smart IR illumination reaches up to 30m
• · Supports face, intrusion, cross-line, enter-area, leave-area, audio, and Ultra Motion Detection
• · NVR supports Ultra 265, H.265, and H.264 decoding and recording
• · 4K HDMI and VGA outputs support simultaneous local display
• · Built-in microphones provide audio capture at each camera
• · IP67 camera housings support outdoor installation and 2D/3D noise reduction improves image clarity

Technical Context

The NVR's four PoE interfaces carry power and network data over individual Ethernet connections, simplifying system deployment. Ultra 265 and H.265 compression help reduce bandwidth and storage requirements, while camera-based smart detection provides event monitoring for faces, people, intrusion, line crossing, audio, and motion. The NVR supports one SATA drive up to 8TB, but the HDD must be installed separately.

Installation Notes

Connect the four EC-T4F28M-V3 cameras to the NVR's PoE ports and install a compatible SATA HDD before recording. The cameras operate from -30°C to 60°C, support 12V DC or PoE IEEE 802.3af, and provide IP67 protection for outdoor use. HDD is not included.
