UNV - EK-S31P8DLT46-BK - Uniview Dual Light 8 Channel Surveillance Kit with (6) 4MP Turret Domes in Black, NDAA

Product Overview

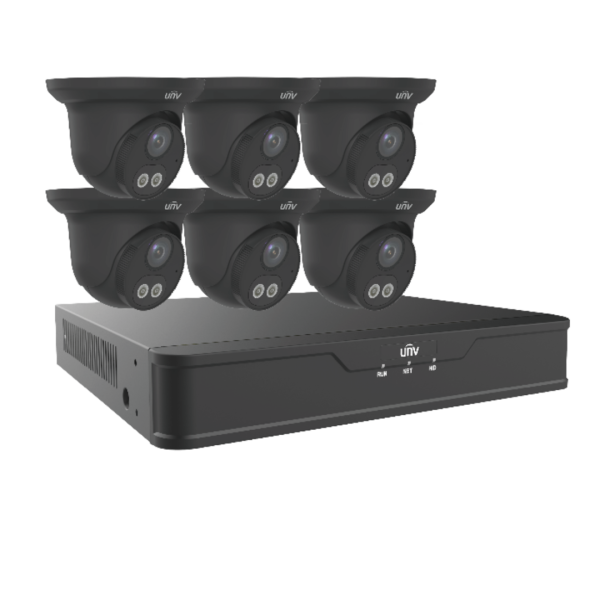

The Uniview EK-S31P8DLT46T2-BK is an 8-channel plug-and-play IP surveillance kit with six black 4MP dual-light turret cameras and an NVR301-08S3-P8 PoE recorder. The IPC3614LB-AF28K-DL cameras provide 2.8mm wide-angle coverage, infrared night vision up to 100 feet, motion-activated white-light illumination, built-in microphones, and IP67 weather protection. The system is designed for residential and small to medium-sized business applications; no HDD is included.

Key Configuration

Model: EK-S31P8DLT46T2-BK | System Capacity: 8 channels | Included Cameras: 6 × IPC3614LB-AF28K-DL black 4MP dual-light turret cameras, 2.8mm fixed lenses | Recorder: NVR301-08S3-P8, 8-channel PoE NVR | Storage: HDD not included | Night Vision: Up to 100 ft | Protection: IP67, NDAA compliant

Key Features

• · Complete 8-channel IP surveillance kit with six black dual-light turret cameras
• · 4MP cameras use 1/3-inch CMOS sensors for detailed video
• · Fixed 2.8mm wide-angle lenses provide broad scene coverage
• · Dual-light cameras combine infrared night vision with motion-activated white light
• · Infrared night vision reaches up to 100 feet
• · Built-in microphones support audio surveillance at the cameras
• · Integrated PoE provides plug-and-play power and video connectivity
• · IP67 weatherproof camera housings support indoor and outdoor installation
• · Supports Uniview mobile and PC clients for live and recorded video viewing
• · NDAA compliant for projects requiring compliant surveillance equipment

Technical Context

Dual-light operation allows the cameras to use infrared illumination for routine nighttime monitoring and activate white light when motion is detected, helping preserve color details during important events. The NVR's integrated PoE ports carry power and network data over the camera cables, while a compatible HDD can be installed separately for local recording.

Installation Notes

Connect the six black IPC3614LB-AF28K-DL cameras to the NVR's integrated PoE ports and install a compatible surveillance HDD before recording. The IP67 cameras can be mounted indoors or outdoors; position the white-light illumination to avoid unwanted glare. The system supports remote access through Uniview mobile and PC client software. HDD is not included.
