UNV - EK-S31P8DLT46 - Uniview Dual Light 8 Channel Surveillance Kit with (6) 4MP Turret Domes

Product Overview

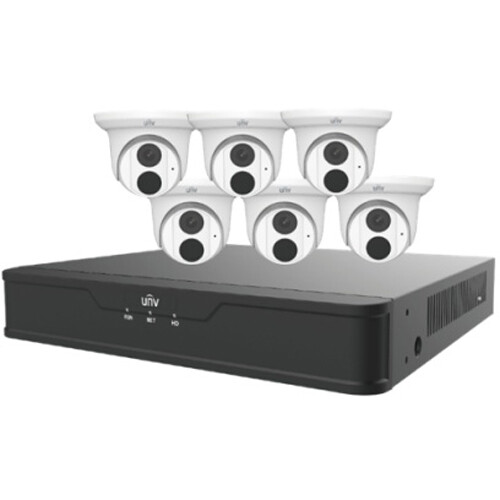

The Uniview EK-S31P8DLT46T2-BK is an 8-channel plug-and-play IP surveillance kit with six 4MP dual-light turret cameras and an 8-channel PoE NVR. The white cameras provide 2.8mm wide-angle coverage, infrared night vision up to 100 feet, motion-activated white-light illumination, built-in microphones, and IP67 weather protection. Remote viewing support, and NDAA-compliant equipment for residential and small to medium-sized business applications.

Key Configuration

Model: EK-S31P8DLT46T2-BK | System Capacity: 8 channels | Included Cameras: 6 × 4MP white dual-light turret cameras, 2.8mm lenses | Recorder: 8-channel PoE NVR | Night Vision: Up to 100 ft | Protection: IP67, NDAA compliant

Key Features

• · Complete 8-channel IP surveillance kit with six included dual-light turret cameras
• · 4MP cameras use 1/3-inch CMOS sensors for detailed video
• · Fixed 2.8mm wide-angle lenses provide broad scene coverage
• · Dual-light cameras combine infrared night vision with motion-activated white light
• · Infrared night vision reaches up to 100 feet
• · Built-in microphones support audio surveillance at the cameras
• · Integrated PoE provides plug-and-play power and video connectivity
• · IP67 weatherproof camera housings support indoor and outdoor installation
• · Supports Uniview mobile and PC clients for live and recorded video viewing

Technical Context

Dual-light operation allows the cameras to use infrared illumination for routine nighttime monitoring and activate white light when motion is detected, helping preserve color details during important events. The NVR's integrated PoE ports carry power and network data over the camera cables.

Installation Notes

Connect the six white cameras to the NVR's integrated PoE ports and use suitable Ethernet cabling for the installation. The IP67 cameras can be mounted indoors or outdoors; position the white-light illumination to avoid unwanted glare. The system supports remote access through Uniview mobile and PC client software. A 3-year warranty and lifetime technical support are included according to the supplied product information.
