UNV - EK-S31P8DLT46T2 - 6+1 Dual Light Kit 2TB HDD
Part number:
EK-S31P8DLT46T2
Price:
Product Overview

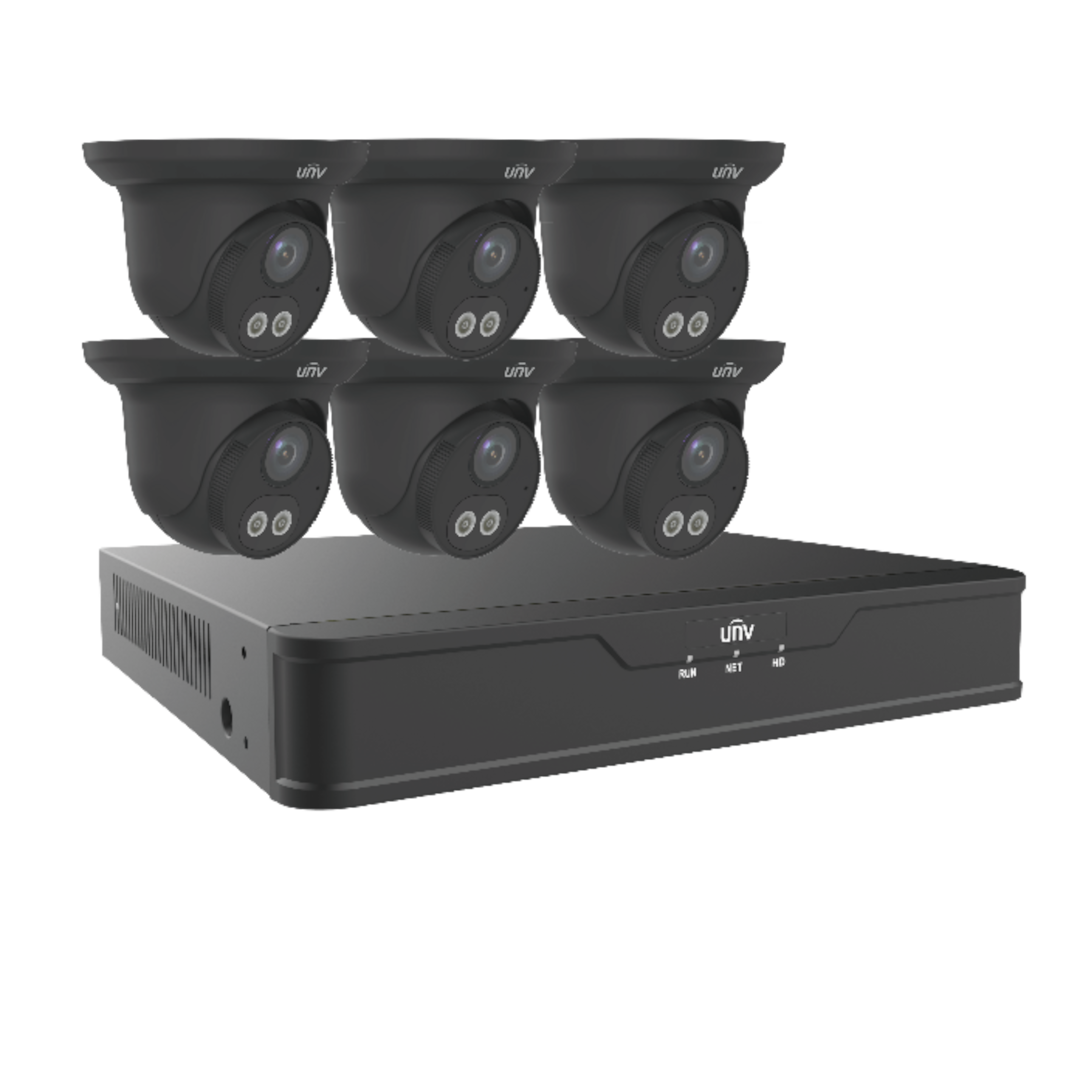

Uniview EK-S31P8DLT46T2-BK is a 4MP IP camera system designed for small to medium business and home applications. The system includes an 8-channel PoE NVR, 6 dual-light IP turret cameras, and a 2TB HDD. Cameras provide 4MP resolution, dual-light illumination with programmable white light activation on motion detection, built-in microphones, and up to 100 feet of night vision.
Key Configuration
- • 8-channel PoE NVR with built-in PoE
- • 6 dual-light IP turret cameras
- • 2TB HDD included
- • Camera lens: 2.8mm wide angle (switchable to 4mm fixed)
- • Camera resolution: 4MP
Key Features
• Dual-light cameras with programmable white light activation on motion detection
• Built-in microphones for audio surveillance
• Night vision: up to 100 feet
• Weatherproof rating: IP67
• Free Uniview EZVIEW remote viewing app for remote access
• Free lifetime technical support and 3-year warranty
| PWR (Power) | |
|---|---|
| Steady on | Connected to power. |
| RUN (Operation) | |
| Steady on | Normal. |
| Blinks | Starting up. |
| NET (Network) | |
| Steady on | Connected to network. |
| GUARD (Arming) | |
| Steady on | Arming is enabled. |
| IR | |
| Steady on | Activated for remote control. |
| Blinks | Authenticating device code. |
| ALM (Alarm) | |
| Steady on | Device alarm occurred. |
| CLOUD | |
| Steady on | Connected to cloud. |
| HD (Hard disk) — One HD LED only | |
| Steady on | No disk; or disk is abnormal. |
| Blinks | Reading or writing data. |
| HD (Hard disk) — One HD LED for each disk | |
| Steady green | Normal. |
| Blinks green | Reading or writing data. |
| Steady red | Abnormal. |
| Blinks red | Rebuilding array. |
Name
Description
Size
Downloads
File
Quick Start Guide
0.7mb
