UNV - EK-S31P8T46-V3 - 8-Channel Surveillance Kit w/ 6x 4MP IR Turret Cameras
Product Overview

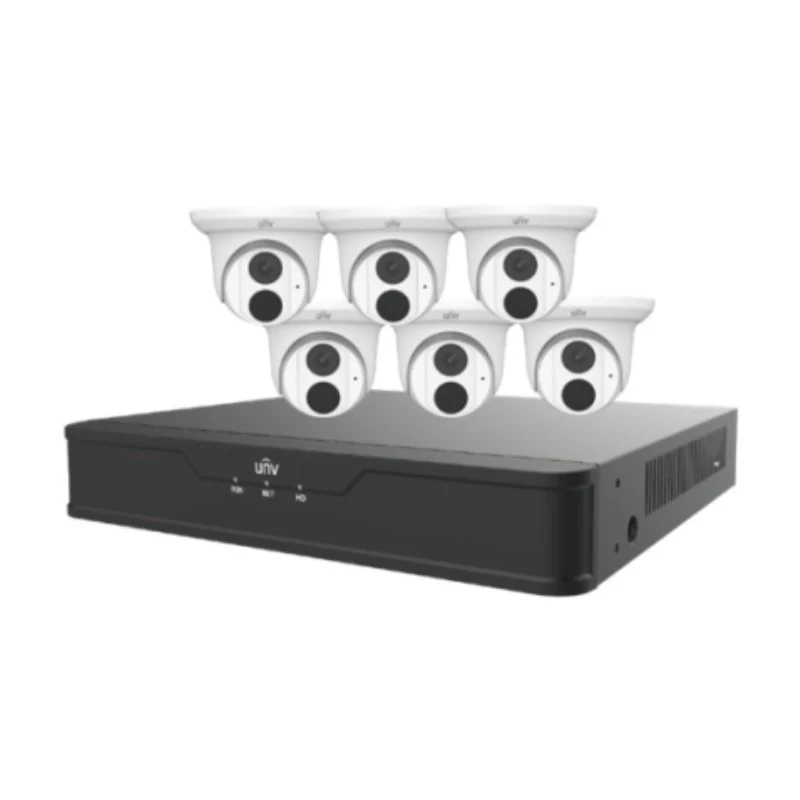

The Uniview EK-S31P8T46T2-V2 is an 8-channel plug-and-play IP surveillance kit with an NVR301-08S3-P8 recorder and six EC-T4F28M 4MP turret cameras. The NVR supports up to 8MP recording, simultaneous 4K HDMI and VGA output, Ultra 265/H.265/H.264 compression, and ONVIF and RTSP integration. The cameras provide 2.8mm wide-angle coverage, IR night vision up to 98 feet, human-based intrusion analytics, and 4kV surge protection; no HDD is included.
Key Configuration
Model: EK-S31P8T46T2-V2 | System Capacity: 8 channels | Included Cameras: 6 × EC-T4F28M 4MP turret cameras | Recorder: NVR301-08S3-P8 with PoE interfaces | Recording: Up to 8MP, 1 SATA HDD interface, HDD not included | Outputs: 4K HDMI and VGA | Compliance: NDAA Section 889
Key Features
- · 8-channel NVR supports simultaneous management of multiple IP camera feeds
- · Plug-and-play PoE connectivity simplifies camera installation
- · Includes six EC-T4F28M 4MP network turret cameras
- · Cameras provide 2560 × 1440 video at up to 25 fps
- · 2.8mm lenses provide wide-angle scene coverage
- · IR LEDs provide up to 98 feet of nighttime illumination
- · Analytics include human-based intrusion, cross-line, motion, and tampering detection
- · Supports ROI, privacy masking, digital defog, DWDR, HLC, BLC, and 2D/3D noise reduction
- · ONVIF Profiles S, G, and T and RTSP support third-party integration
- · NDAA Section 889 compliant with cloud upgrade support
Technical Context
The NVR's integrated PoE interfaces carry camera power and video data over Ethernet for simplified deployment. Ultra 265, H.265, and H.264 compression helps manage bandwidth and storage requirements, while HDMI and VGA outputs support simultaneous local monitoring. Camera analytics can identify intrusion, line crossing, motion, and tampering events.
Installation Notes
Connect the six EC-T4F28M cameras to the NVR's PoE interfaces and install a compatible SATA surveillance HDD before recording. The cameras support operation from -22°F to 140°F (-30°C to 60°C) and include 4kV surge protection. HDD is not included.
| NVR301-08S3-P8 Network Video Recorder | |
| Product Model | NVR301-08S3-P8 |
| IP Video Input | 8 channels |
| Video Compression | Ultra 265, H.265, H.264 |
| PoE Interfaces | 4 independent PoE network interfaces |
| PoE Installation | Plug-and-play camera connection through PoE |
| Camera Compatibility | Third-party IP cameras supporting ONVIF Profiles S/G/T |
| HDMI Output | 1-channel HDMI |
| VGA Output | 1-channel VGA |
| Display Output | HDMI and VGA simultaneous output |
| Maximum Recording Resolution | Up to 8MP |
| Hard Disk | 1 × SATA hard drive with 2 TB storage capacity |
| Cloud Upgrade | Supported |
| Compliance | Section 889 of the NDAA |
| EC-T4F28M IP Camera | |
| Product Model | EC-T4F28M |
| Image Sensor | 1/3" CMOS |
| Resolution | 4MP (2560 × 1440) at 25 fps |
| Lens | 2.8 mm fixed lens |
| IR Night Vision | Up to 30 m (98 ft) |
| IR Control | Automatic and manual IR on/off control |
| Day/Night Function | IR-cut filter with automatic switching |
| OSD | Up to 4 OSD areas |
| Privacy Masking | Up to 4 areas |
| Region of Interest | Up to 8 areas |
| Analytics | Cross-line detection, intrusion detection based on human body detection, motion detection for up to 4 areas, and tampering alarm |
| Image Settings | Image rotation, brightness, saturation, contrast, sharpness, and gain adjustment through a web browser |
| Flip Modes | Normal, vertical, horizontal, and 180° |
| Additional Image Features | Adjustable white balance, digital defog, digital WDR, 2D/3D DNR, highlight compensation, and backlight compensation |
| S/N Ratio | >56 dB |
| Network Storage | ANR and NAS support |
| User Management | Up to 32 users with administrator and common-user levels |
| Surge Protection | 4 kV |
