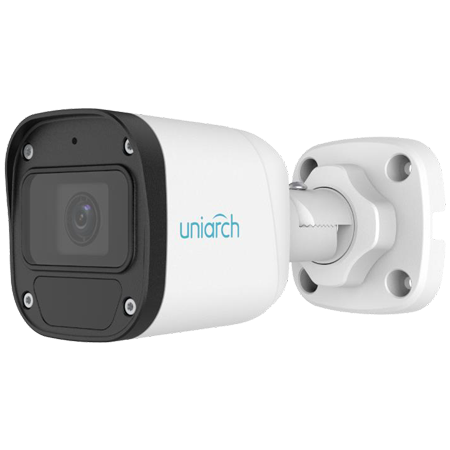

Uniview - IPC-B122-APF28 - Uniarch 2MP Fixed Lens Bullet 2.8mm
Part number:
IPC-B122-APF28
Price:
Uniarch 2MP Fixed Lens Bullet 2.8mm
Features:
Optics
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- Built-in Mic
Compression
- Ultra 265, H.265, H.264
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
| IPC-B122-APF28 | |||||||
| Camera | |||||||
| Sensor | 1/2.8", progressive scan, CMOS | ||||||
| Lens | 2.8mm@F2.1 | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | |||
| 2.8 | 43.4 | 17.4 | 8.7 | ||||
| 4.0 | 62.1 | 24.8 | 12.4 | ||||
| Angle of View (H) | 106.7° | ||||||
| Angle of View (V) | 57.1° | ||||||
| Angle of View (O) | 115.7° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Minimum Illumination | Colour: 0.02Lux (F2.1, AGC ON) 0Lux with IR on | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| S/N | >52dB | ||||||
| IR Range | Up to 30m (98ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | DWDR | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264 | ||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 25fps; 720P (1280*720), Max 25fps; Sub Stream: D1 (720*576), Max 25fps; 640*360,Max 25fps; 2CIF(704*288), Max 25fps; CIF(352*288), Max 25fps; | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| OSD | Up to 4 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, RTMP | ||||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | ||||||
| Interface | |||||||
| Network | 10/100M Base-TX Ethernet | ||||||
| Built-in Mic | Supported | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE | ||||||
| Power consumption: Max 3.5W | |||||||
| Dimensions (L × W × H) | 144 × 60 × 65mm (5.6” × 2.4” × 2.6”) | ||||||
| Weight | 0.17kg (0.37lb) | ||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge Protection | 4KV | ||||||
| Ingress Protection | IP67 | ||||||
| Reset Button | N/A | ||||||
