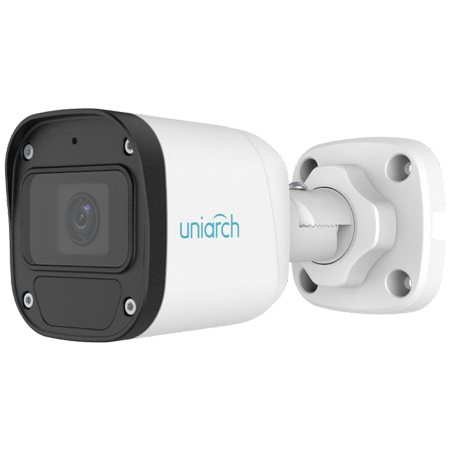

Uniview - IPC-B124-APF28 - 4MP Fixed Lens Bullet Camera 2.8mm
Part number:
IPC-B124-APF28
Price:
Uniarch 4MP Fixed Lens Bullet Camera 2.8mm
Features:
- High quality image with 4MP,1/3" CMOS sensor
- 4MP (2560*1440)@20fps;3MP (2304*1296) @20fps; 1080P (1920*1080)@30fps/25fps
- Ultra 265, H.265, H.264
- 2D/3D DNR (Digital Noise Reduction)
- ROI (Region of Interest)
- ONVIF Conformance
- Smart IR, up to 30m (98ft) IR distance
- 3-Axis
- Built-in Mic
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- DC12V or PoE(IEEE 802.3af) power supply
- IP67
| IPC-B124-APF28 | IPC-B124-APF40 | ||||||
| Camera | |||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||||
| Minimum Illumination | Colour: 0.02Lux (F2.1, AGC ON) 0Lux with IR on | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| WDR | DWDR | ||||||
| S/N | >52dB | ||||||
| Lens | |||||||
| Lens Type | 2.8mm@F2.1 | 4.0mm@F2.1 | |||||
| Iris | Fixed | ||||||
| Angle of View (H) | 97.0° | 79.0° | |||||
| Angle of View (V) | 52.2° | 42.3° | |||||
| Angle of View (O) | 107.5 | 85.1° | |||||
| DORI | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | |||
| 2.8 | 63.0 | 25.2 | 12.6 | ||||
| 4.0 | 90.0 | 36.0 | 18.0 | ||||
| Illuminator | |||||||
| IR Range | Up to 30m (98ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264 | ||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream: 4MP (2560*1440), Max 20fps; 3MP (2304*1296), Max 20fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||||
| Video Bit Rate | 128 Kbps~6 Mbps | ||||||
| U-code | Support | ||||||
| OSD | Up to 4 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Video stream | Dual streams | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180° | ||||||
| Dewarping | N/A | ||||||
| HLC | Support | ||||||
| BLC | Support | ||||||
| Defog | Digital Defog | ||||||
| Events | |||||||
| Basic Detection | Motion detection, Audio detection | ||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711U, G.711A | ||||||
| Audio Bitrate | 64 Kbps | ||||||
| Two-way Audio | N/A | ||||||
| Suppression | Support | ||||||
| Sampling Rate | 8KHZ | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SSL, QoS , RTMP | ||||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | ||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||
| Client | Uniarch Client Uniarch APP | ||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
| Interface | |||||||
| Audio I/O | N/A | ||||||
| Alarm I/O | N/A | ||||||
| Built-in Mic | Support | ||||||
| Built-in Speaker | N/A | ||||||
| WIFI | N/A | ||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | N/A | ||||||
| Certifications | |||||||
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) | ||||||
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) | ||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||||
| Protection | IP67 (IEC 60529) | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 3.5W | |||||||
| Dimensions (L × W × H) | 144 × 60 × 65mm (5.6” × 2.4” × 2.6”) | ||||||
| Weight | 0.17kg (0.37lb) | ||||||
| Working Environment | -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) | ||||||
| Storage Environment | -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) | ||||||
| Surge Protection | 4KV | ||||||
| Reset Button | N/A | ||||||
