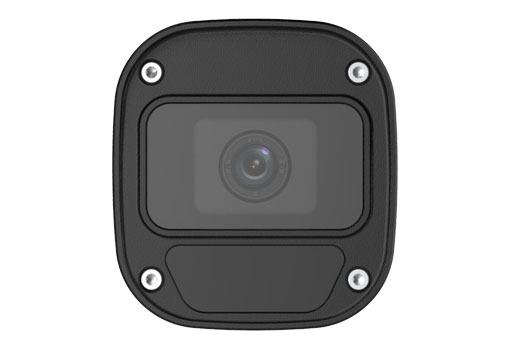

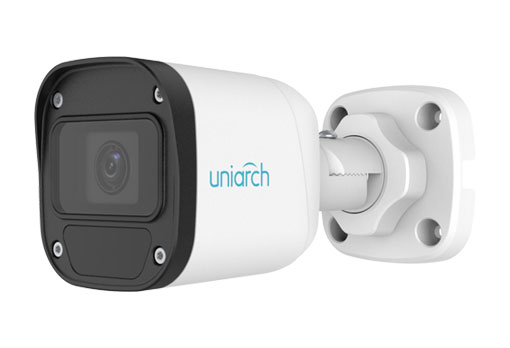

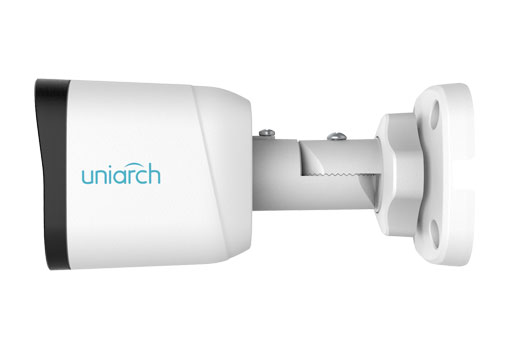

Uniview - IPC-B124-APF28KLM-A2 - 4MP Fixed Lens Bullet 2.8mm
• Day/night functionality
• Smart IR, up to 30m (98ft) IR distance
• Optical glass window with higher light transmittance
• IR anti-reflection window to increase the infrared transmittance 2D/3D DNR (Digital Noise Reduction)
• Ultra 265, H.265, H.264, MJPEG ROI (Region of Interest)
• ONVIF Conformance
• Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F) Wide voltage range of ±25%
• IP67
| Camera | |
|---|---|
| Model | IPC-B124-PF28 |
| Camera Sensor | 1/2.7", progressive scan, CMOS |
| Lens | 2.8mm @ F2.1 |
| DORI | |
| Lens | 2.8mm |
| Detect | 56.0m |
| Observe | 22.4m |
| Recognize | 11.2m |
| Identify | 5.6m |
| Viewing Angles | |
| Horizontal (H) | 112.7° |
| Vertical (V) | 60.1° |
| Oblique (O) | 146.5° |
| Adjustment Angle | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° |
| Imaging Performance | |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Color: 0.02Lux (F2.1, AGC ON) 0Lux with IR on |
| Digital Noise Reduction | 2D/3D DNR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N Ratio | >52dB |
| IR Range | Up to 30m (98ft) |
| Defog | Digital Defog |
| WDR | DWDR |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main Profile |
| Frame Rate | Main Stream: 4MP (2560*1440), Max 20fps; 1080P (1920*1080), Max 20fps Sub Stream: 720P (1280*720), Max 20fps |
| HLC / BLC | Supported |
| OSD / Privacy Mask | Up to 4 OSDs / Up to 4 areas |
| ROI / Motion Detection | Up to 2 areas / Up to 4 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP |
| Compatible Integration | ONVIF (Profile S, Profile T), API |
| Network Interface | 10/100M Base-TX Ethernet |
| General | |
| Power | DC 12V±25%, PoE |
| Power Consumption | Max 4.5W |
| Dimensions (L × W × H) | 142.1 × 62.4 × 65.2mm (5.6” × 2.5” × 2.6”) |
| Weight | 0.19kg (0.42lb) |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Ingress Protection | IP67 |
The IPC-B124-APF28KLM-A2 camera, part of the Uniarch series, uses a 4 MP 1/2.7" Progressive Scan CMOS sensor, providing a maximum resolution of 2560 × 1440 at up to 20 frames per second. The optics feature a fixed lens with an F2.1 aperture and a focal length of 2.8 mm, offering a wide horizontal field of view of approximately 112.7°. The camera utilizes Smart IR illumination for Day/night functionality, with an illumination distance of up to 30m (98ft).
The camera design incorporates an optical glass window with higher light transmittance and an IR anti-reflection window to increase the infrared transmittance. Video compression is supported via Ultra 265, H.265, H.264, and MJPEG, and it supports dual video streams. Image processing features include Digital Wide Dynamic Range, 2D/3D Digital Noise Reduction, and support for Region of Interest. The camera includes a built-in microphone for audio monitoring and is compliant with ONVIF standards. Structurally, it has IP67 protection for dust and water and operates across a wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F). Power is supplied via DC 12 V or Power over Ethernet with a wide voltage range of ±25%, and a maximum power consumption of 4.5 W.
