Uniview - IPC-B132-AF28-DL-ECO - 2MP Eco Dual Light Fixed Camera
• IP Bullet Camera
• 1/3.0" CMOS
• 2 Megapixel (1920x1080)
• 2.8 mm Lens
• 0.005 Lux
• 30 m IR Range
• 265/H.265/H.264 Compression
• RJ45 10M/100M Base-TX Ethernet
• PoE IEEE 802.3af
• IP67 Waterproof
• IR Cut
• Web, CMS, Smartphone, and NVR Interfaces
• ONVIF Compliant
| Camera | |
|---|---|
| Image Sensor | 1/3.0" CMOS |
| Day / Night | Mechanical ICR filter |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Lens | 2.8 mm |
| Field of View (FOV) | |
| Horizontal | 85.1° |
| Vertical | 46.6° |
| Diagonal | 95.5° |
| DORI | |
| Detect | 51.4 m |
| Observe | 20.6 m |
| Recognize | 10.3 m |
| Identify | 5.1 m |
| Frame Rates | |
| Main Stream | 1080P (1920*1080) @ 30fps 720P (1280*720) @ 30fps |
| Extra Stream | 640*360 @ 30fps 2CIF (704*288) @ 30fps CIF (352*288) @ 30fps |
| Compression | Ultra265 / H.265 / H.264 |
| WDR | DWDR |
| Angle of Aperture | |
| Horizontal | 87.5° |
| Vertical | 46.3° |
| Diagonal | 92.4° |
| Minimum Illumination | 0.005 Lux (Color) 0 Lux with IR |
| Infrared Range | 30 m |
| Image Enhancements | DWDR, AGC, 2D/3D-DNR, ROI, Privacy Mask, Smart IR |
| Internal Storage | Not available |
| Alarms | Not available |
| Audio | Built-in microphone |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | 3.5 W, PoE IEEE802.3af |
| Interoperability | ONVIF |
| Operating Temperature | -30°C to 60°C |
| Protection Rating | IP67 Waterproof |
| Dimensions (H x W x D) | 65 x 61 x 140 mm |
| Weight | 150 g |
| Material | Graphene and plastic |

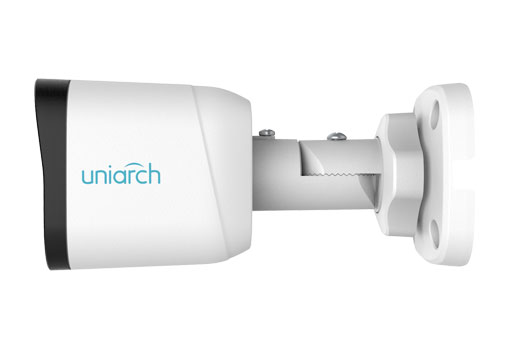

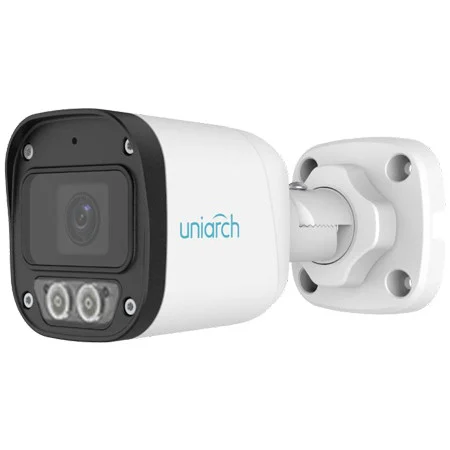

The IPC-B132-AF28-DL-ECO Megapixel IP Bullet Camera is a professional surveillance device designed for high-definition outdoor use. It is built around a sensitive 1/3.0" CMOS sensor, providing a maximum resolution of 1920 × 1080. The optics feature a fixed 2.8 mm lens, and the camera maintains excellent low-light visibility with a minimum illumination of only 0.005 Lux. For reliable night surveillance, it is equipped with IR Cut filtering and Smart IR illumination, providing a range of up to 30 meters. Video compression utilizes highly efficient standards, including Ultra 265 / H.265 / H.264. Connectivity is achieved through an RJ45 10M/100M Base-TX Ethernet port, and power is supplied via PoE (IEEE 802.3af). The camera is highly durable, featuring an IP67 Waterproof rating for complete protection against dust and water ingress. It offers broad system compatibility, supporting various interfaces including Web, CMS, Smartphone, and NVRs, and is fully ONVIF Compliant.
