UNV - IPC-B132-AF28-ECO - 2MP Fixed Dual light Bullet Network Camera
Product Overview

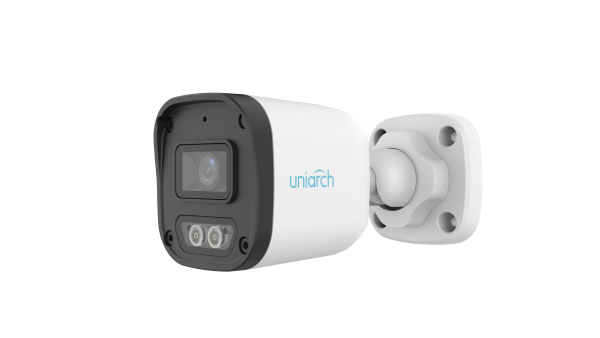

The Uniview IPC-B132-AF28-ECO is a 2MP fixed bullet network camera with a 2.8 mm wide-angle lens for residential, commercial, and outdoor surveillance. It provides 1080p video, Smart IR and warm-light illumination, human-body detection, and an integrated microphone.
The camera supports Ultra 265 compression, PoE power, ROI encoding, and IP67 weather protection for reliable day-and-night operation.
Key Configuration
Model: IPC-B132-AF28-ECO | Resolution: 2MP, 1920 × 1080 at up to 30 fps | Lens: 2.8 mm fixed | Connectivity: 10/100 Mbps RJ45 with IEEE 802.3af PoE | Protection: IP67
Key Features
- · 2MP 1/3.0-inch CMOS sensor with 1080p video at up to 30 fps
- · 2.8 mm fixed wide-angle lens with 85.1° horizontal field of view
- · Smart IR illumination up to 30 m and warm-light illumination up to 15 m
- · Ultra 265, H.265, and H.264 video compression
- · 2D/3D digital noise reduction, DWDR, HLC, BLC, and digital defog
- · ROI encoding with support for up to eight regions
- · Motion detection, audio detection, and Human Body Detection 2.0
- · Built-in microphone with G.711U/G.711A audio compression
- · IEEE 802.3af PoE power with maximum consumption of 3.5 W
- · IP67 housing, 4 kV surge protection, and operation from -30°C to 60°C
Technical Context
The dual-light system uses infrared illumination for discreet night monitoring and warm light for supplemental illumination when required. Ultra 265 compression and ROI encoding help maintain image quality while reducing network bandwidth and storage usage.
Installation Notes
The compact bullet housing supports 3-axis adjustment and can be powered through an IEEE 802.3af PoE network connection. Its IP67 enclosure is suitable for outdoor installations, with optional junction-box, pole-mount, cable-gland, and corner-mount accessories available.
| Product Information | |
| Product Model | IPC-B132-AF28-ECO |
| Product Type | 2MP fixed bullet network camera |
| Lens | 2.8 mm fixed lens |
| Note | The supplied datasheet identifies the corresponding 2.8 mm model as IPC-B132-AF28-DL-ECO. |
| Camera and Lens | |
| Maximum Resolution | 2MP (1920 × 1080) |
| Image Sensor | 1/3.0" CMOS |
| Minimum Illumination | 0.005 lux at F1.6, AGC on 0 lux with IR illumination |
| Day/Night | IR-cut filter with automatic switching |
| Shutter | Auto / Manual, 1–1/100,000 s |
| Signal-to-Noise Ratio | >52 dB |
| WDR | DWDR |
| Aperture | F1.6 |
| Field of View | Horizontal: 85.1° Vertical: 46.6° Diagonal: 95.5° |
| DORI Distance | |
| Detect | 51.4 m (168.7 ft) |
| Observe | 20.6 m (67.5 ft) |
| Recognize | 10.3 m (33.8 ft) |
| Identify | 5.1 m (16.9 ft) |
| Illumination | |
| IR Illumination Distance | Up to 30 m (98.4 ft) |
| Warm Light Distance | Up to 15 m (49.2 ft) |
| Supplemental Light | Dual light |
| Wavelength | 850 nm |
| IR Control | Auto / Manual |
| Video | |
| Main Stream | 1080p (1920 × 1080) at up to 30 fps 720p (1280 × 720) at up to 30 fps |
| Sub Stream | 640 × 360, 2CIF (704 × 288), or CIF (352 × 288) at up to 30 fps |
| Video Compression | Ultra 265, H.265, H.264 |
| H.264 Profiles | Baseline, Main, High |
| Video Bit Rate | 128 Kbps–6144 Kbps |
| Video Streams | Dual streams |
| OSD | Up to 4 OSD areas |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image and Detection Features | |
| Image Functions | Auto/outdoor/fine-tune/sodium lamp/locked/Auto2 white balance, 2D/3D DNR, Smart IR, HLC, BLC, and digital defog |
| Flip Modes | Normal, vertical, horizontal, and 180° |
| Basic Detection | Motion detection, audio detection, and Human Body Detection 2.0 |
| Audio and Network | |
| Microphone | Built-in microphone |
| Audio Compression | G.711U, G.711A |
| Audio Bit Rate | 64 Kbps |
| Two-Way Audio | Not available |
| Network Interface | 1 × RJ-45 10/100 Mbps Base-TX Ethernet |
| Network Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, and RTMP |
| Interoperability | API and SDK |
| Client Software | Mobile application and Uniarch client |
| User Management | Up to 32 users with Administrator and Common User levels |
| Electrical and Environmental | |
| Power Supply | PoE IEEE 802.3af |
| Power Consumption | Maximum 3.5 W |
| Ingress Protection | IP67 |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Storage Temperature | -30°C to 60°C (-22°F to 140°F) |
| Storage Humidity | ≤95% RH, non-condensing |
| Dimensions | 140 × 61 × 65 mm 5.5 × 2.4 × 2.6 in |
| Weight | 0.15 kg (0.34 lb) |
| Surge Protection | 4 kV |
| Certifications | |
| Certifications | CE-EMC, FCC, CE-LVD, CE-RoHS, WEEE |
