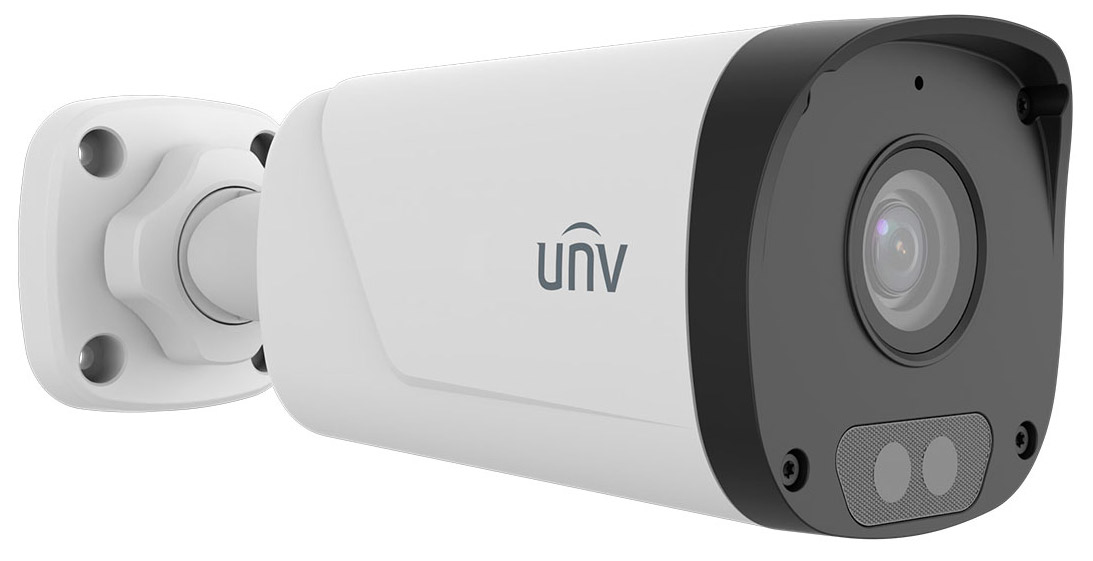

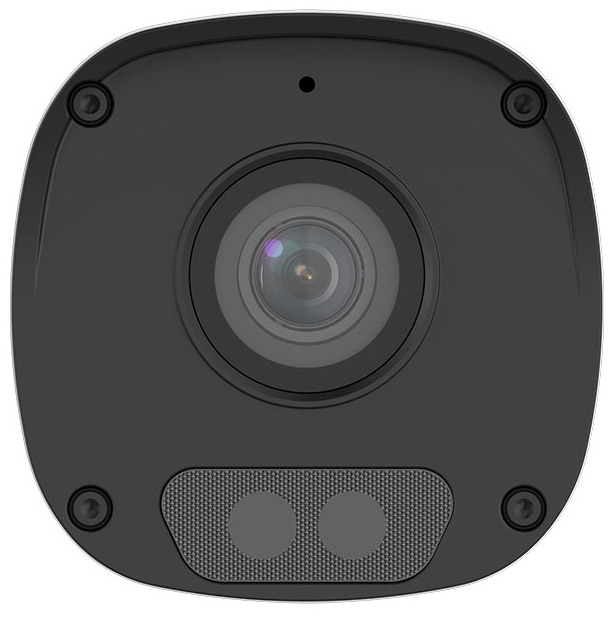

UNV - IPC-B132-AF40-DL-ECO - 2MP Eco Dual Light Fixed Camera
• High quality image with 2MP, 1/3" CMOS sensor
• 2MP(1920*1080)@30fps;720P (1280*720)@30fps
• Ultra 265, H.265, H.264
• 2D/3D DNR (Digital Noise Reduction)
• ROI (Region of Interest)
• Smart IR, up to 30m (98ft) IR distance
• 3 Axis
• Built in Mic
• Wide temperature range: -30 ℃ to 60 ℃ ( -22 ℉ to 140 ℉)
• Support PoE power supply
• IP67
| Camera | |
|---|---|
| Max Resolution | 2 MP |
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Color: 0.005Lux (F1.6, AGC ON) 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| S/N Ratio | > 52 dB |
| WDR | DWDR |
| Lens | |
| Focal Length | 4.0 mm |
| Iris | F1.6 |
| Field of View (H / V / D) | 67.3° / 37.2° / 77.8° |
| DORI Distances (Lens: 4.0 mm) | |
| Detect | 73.5 m (241.0 ft) |
| Observe | 29.4 m (96.4 ft) |
| Recognize | 14.7 m (48.2 ft) |
| Identify | 7.3 m (24.1 ft) |
| Illuminator | |
| Supplemental Light | Dual light |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Illumination Distance (Warm Light) | 15 m (49.3 ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264 |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| U-code / ROI | Support / Up to 8 areas |
| OSD / Privacy Mask | Up to 4 OSDs / Up to 4 areas |
| Video Stream | Dual streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip Options | Normal, Flip vertical, Flip horizontal, 180° |
| HLC / BLC / Defog | Support / Support / Digital defog |
| Events | |
| Basic Detection | Motion detection, Audio detection, Human body detection 2.0 |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate / Sampling Rate | 64 Kbps / 8 kHz |
| Two-way Audio | N/A |
| Suppression | Support |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, RTMP |
| Compatible Integration | ONVIF (Profile S, Profile T), API, SDK |
| Users / Client | Up to 32 users, 2 user levels: administrator and common user / Uniarch client, Uniarch app |
| Web Browser Support | Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O / Alarm I/O | N/A |
| Built-in Mic / Speaker | Support / N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | PoE (IEEE 802.3af) |
| Power Consumption | Max 3.5W |
| Power Interface | N/A |
| Dimensions | 140 × 61 × 65mm (5.5” × 2.4” × 2.6”) |
| Weight | 0.15kg (0.34lb) |
| Material | Graphene + Plastic |
| Working / Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection / Reset Button | 4 KV / N/A |
The IPC2314LB-AF40-ECO is a high-performance 4MP network camera built for continuous, reliable surveillance. It captures sharp video at a maximum resolution of 2560 × 1440 at 25 fps, leveraging a sensitive 1/3.0″ CMOS sensor and a 4.0 mm fixed F2.0 lens. The camera utilizes highly efficient Ultra 265 and H.265 compression, minimizing network and storage loads. Engineered for the outdoors, its lightweight Graphene + Plastic body is IP67-rated (dust and water resistant) and operates reliably in extreme temperatures from -30 °C to 60 °C. With an economical PoE power option and durable design, this model is an effective and cost-efficient choice for securing homes, small businesses, and warehouses.
