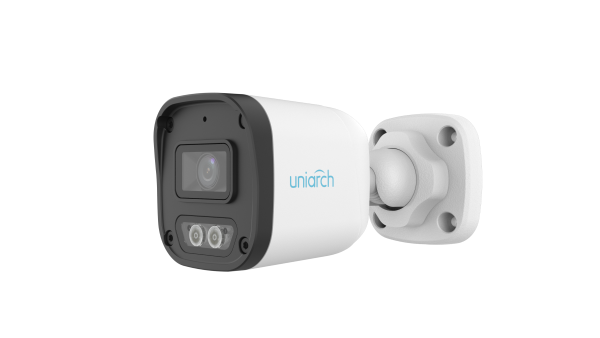

UNV - IPC-B132-AF40-ECO - 2MP Fixed Dual light Bullet Network Camera
Product Overview
The Uniview IPC-B132-AF40-ECO is a 2MP fixed bullet network camera with a 4.0 mm lens for dependable residential, commercial, and outdoor surveillance. It provides 1080p video, Smart IR and warm-light illumination, human-body detection, and an integrated microphone.
The camera supports Ultra 265 compression, PoE power, ROI encoding, and IP67 weather protection for reliable day-and-night operation.
Key Configuration
Model: IPC-B132-AF40-ECO | Resolution: 2MP, 1920 × 1080 at up to 30 fps | Lens: 4.0 mm fixed | Connectivity: 10/100 Mbps RJ45 with IEEE 802.3af PoE | Protection: IP67
Key Features
- · 2MP 1/3.0-inch CMOS sensor with 1080p video at up to 30 fps
- · 4.0 mm fixed lens with 67.3° horizontal field of view
- · Smart IR illumination up to 30 m and warm-light illumination up to 15 m
- · Ultra 265, H.265, and H.264 video compression
- · 2D/3D digital noise reduction, DWDR, HLC, BLC, and digital defog
- · ROI encoding with support for up to eight regions
- · Motion detection, audio detection, and Human Body Detection 2.0
- · Built-in microphone with G.711U/G.711A audio compression
- · IEEE 802.3af PoE power with maximum consumption of 3.5 W
- · IP67 housing, 4 kV surge protection, and operation from -30°C to 60°C
Technical Context
The dual-light system uses infrared illumination for discreet night monitoring and warm light for supplemental illumination when required. The 4.0 mm lens provides a narrower field of view than the 2.8 mm version, making it suitable when more focused scene coverage is preferred.
Installation Notes
The compact bullet housing supports 3-axis adjustment and can be powered through an IEEE 802.3af PoE network connection. Its IP67 enclosure is suitable for outdoor installations, with optional junction-box, pole-mount, cable-gland, and corner-mount accessories available.
| Product Information | |
| Product Model | IPC-B132-AF40-ECO |
| Product Type | 2MP fixed bullet network camera |
| Lens | 4.0 mm fixed lens |
| Note | The supplied datasheet identifies the corresponding 4.0 mm model as IPC-B132-AF40-DL-ECO. |
| Camera and Lens | |
| Maximum Resolution | 2MP (1920 × 1080) |
| Image Sensor | 1/3.0" CMOS |
| Minimum Illumination | 0.005 lux at F1.6, AGC on 0 lux with IR illumination |
| Day/Night | IR-cut filter with automatic switching |
| Shutter | Auto / Manual, 1–1/100,000 s |
| Signal-to-Noise Ratio | >52 dB |
| WDR | DWDR |
| Aperture | F1.6 |
| Field of View | Horizontal: 67.3° Vertical: 37.2° Diagonal: 77.8° |
| DORI Distance | |
| Detect | 73.5 m (241.0 ft) |
| Observe | 29.4 m (96.4 ft) |
| Recognize | 14.7 m (48.2 ft) |
| Identify | 7.3 m (24.0 ft) |
| Illumination | |
| IR Illumination Distance | Up to 30 m (98.4 ft) |
| Warm Light Distance | Up to 15 m (49.2 ft) |
| Supplemental Light | Dual light |
| Wavelength | 850 nm |
| IR Control | Auto / Manual |
| Video | |
| Main Stream | 1080p (1920 × 1080) at up to 30 fps 720p (1280 × 720) at up to 30 fps |
| Sub Stream | 640 × 360, 2CIF (704 × 288), or CIF (352 × 288) at up to 30 fps |
| Video Compression | Ultra 265, H.265, H.264 |
| H.264 Profiles | Baseline, Main, High |
| Video Bit Rate | 128 Kbps–6144 Kbps |
| Video Streams | Dual streams |
| OSD | Up to 4 OSD areas |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image and Detection Features | |
| Image Functions | Auto/outdoor/fine-tune/sodium lamp/locked/Auto2 white balance, 2D/3D DNR, Smart IR, HLC, BLC, and digital defog |
| Flip Modes | Normal, vertical, horizontal, and 180° |
| Basic Detection | Motion detection, audio detection, and Human Body Detection 2.0 |
| Audio and Network | |
| Microphone | Built-in microphone |
| Audio Compression | G.711U, G.711A |
| Audio Bit Rate | 64 Kbps |
| Two-Way Audio | Not available |
| Network Interface | 1 × RJ-45 10/100 Mbps Base-TX Ethernet |
| Network Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, and RTMP |
| Interoperability | API and SDK |
| Client Software | Mobile application and Uniarch client |
| User Management | Up to 32 users with Administrator and Common User levels |
| Electrical and Environmental | |
| Power Supply | PoE IEEE 802.3af |
| Power Consumption | Maximum 3.5 W |
| Ingress Protection | IP67 |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Storage Temperature | -30°C to 60°C (-22°F to 140°F) |
| Storage Humidity | ≤95% RH, non-condensing |
| Dimensions | 140 × 61 × 65 mm 5.5 × 2.4 × 2.6 in |
| Weight | 0.15 kg (0.34 lb) |
| Surge Protection | 4 kV |
| Certifications | |
| Certifications | CE-EMC, FCC, CE-LVD, CE-RoHS, WEEE |
