• 4mp
• Lente-2.8mm
• Dwdr
• Microphone-integral
• Human-body-detection 2.0
• Ir30m
• Onvif
• Ultra265
• Poe
• 12vcd
• 3axis
• IP67
• Series Eco
| Camera | |
|---|---|
| Model | IPC-B134-AF28-DL-ECO |
| Camera Type | IP Bullet Camera |
| Image Sensor | 1/3.0" 4MP CMOS |
| Maximum Frame Rate | 25 fps |
| Lens | 4.0 mm |
| Minimum Illumination | 0.005Lx @ F1.6 |
| IR Illumination Range | Up to 30 m |
| LED/Warm Light Illumination | Up to 15 m |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 2D/3D DNR |
| Video Compression | Ultra 265, H.265, H.264 |
| Video Streams | 2 streams |
| Audio | Built-in microphone |
| Intelligent Features | Motion detection, Human Body Detection 2.0 |
| Ingress Protection | IP67 |
| Operating Temperature | -40°C to +60°C |
| Power Supply | PoE |
| Packaging | Color packaging |
| Warranty | 12-month manufacturer warranty |

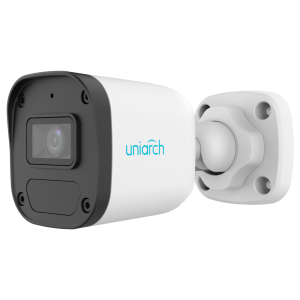

The IP-Bullet Camera IPC-B134-AF28-DL-ECO is a versatile 4-megapixel surveillance solution engineered for reliable 24/7 outdoor performance. It utilizes a 1/3.0" CMOS sensor to deliver high-resolution video at 4MP at a smooth 25 frames per second. The optics feature a fixed 4.0 mm lens with a wide F1.6 aperture, providing excellent light sensitivity down to 0.005 Lux. This model employs a Dual Light system, offering IR illumination up to 30 meters and supplemental visible LED illumination up to 15 meters for color night vision or deterrence. Video streams are efficiently compressed using Ultra 265, H.265, and H.264 across two distinct streams.
Advanced imaging features include Digital Wide Dynamic Range and 2D/3D Digital Noise Reduction. Intelligent functions such as standard motion detection and Human Body Detection 2.0 significantly improve alarm accuracy. Built for harsh conditions, the camera has an IP67 weatherproof rating and operates across an extreme temperature range of -40 °C to +60 °C. It supports simplified power delivery via Power over Ethernet and includes a built-in microphone for audio monitoring. The product is presented in color packaging and is backed by a 12-month warranty.
