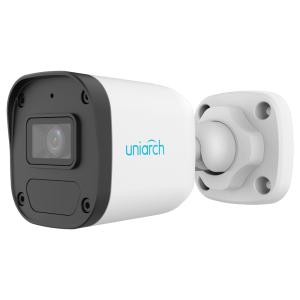

UNV - IPC-B134-AF40-DL-ECO - 4MP Eco Dual Light Fixed Camera Uniarch
• 4MP Eco Dual Light Fixed Camera
| Model | IPC-B134-AF40-DL-ECO |
| Camera Type | IP Cylindrical Video Camera |
| Image Sensor | 1/3.0" 4MP CMOS |
| Maximum Frame Rate | 25 fps |
| Lens | 2.8 mm |
| Minimum Illumination | 0.005Lx @ F1.6 |
| IR Illumination Range | Up to 30 m |
| LED Illumination Range | Up to 15 m |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 2D/3D DNR |
| Video Compression | Ultra 265, H.265, H.264 |
| Video Streams | 2 streams |
| Audio | Built-in microphone |
| Intelligent Features | Motion detection, Human Body Detection 2.0 |
| Ingress Protection | IP67 |
| Operating Temperature | -40°C to +60°C |
| Power Supply | PoE |
| Packaging | Color packaging |
| Warranty | 12-month manufacturer warranty |
The IP Cylindrical Video Camera is a high-performance 4-megapixel surveillance device designed for exceptional outdoor reliability. It utilizes a 1/3.0" CMOS sensor to capture video at 2560 x 1440 at a smooth 25 frames per second. The optics feature a fixed 2.8 mm lens with a wide F1.6 aperture, ensuring superior low-light sensitivity down to 0.005 Lux. This model incorporates a Dual Light system, offering IR illumination up to 30 meters and complementary visible LED illumination up to 15 meters for color night vision. Video is efficiently compressed using Ultra 265, H.265, and H.264 across two streams.
Advanced image processing includes Digital Wide Dynamic Range and 2D/3D Digital Noise Reduction. Intelligent features, such as standard motion detection and Human Body Detection 2.0, enhance alert accuracy. Built for resilience, the camera boasts an IP67 weatherproof rating and operates reliably across an extreme temperature range of -40 °C to +60 °C. It supports simplified power delivery via Power over Ethernet and includes a built-in microphone for audio monitoring.
